136
Installation

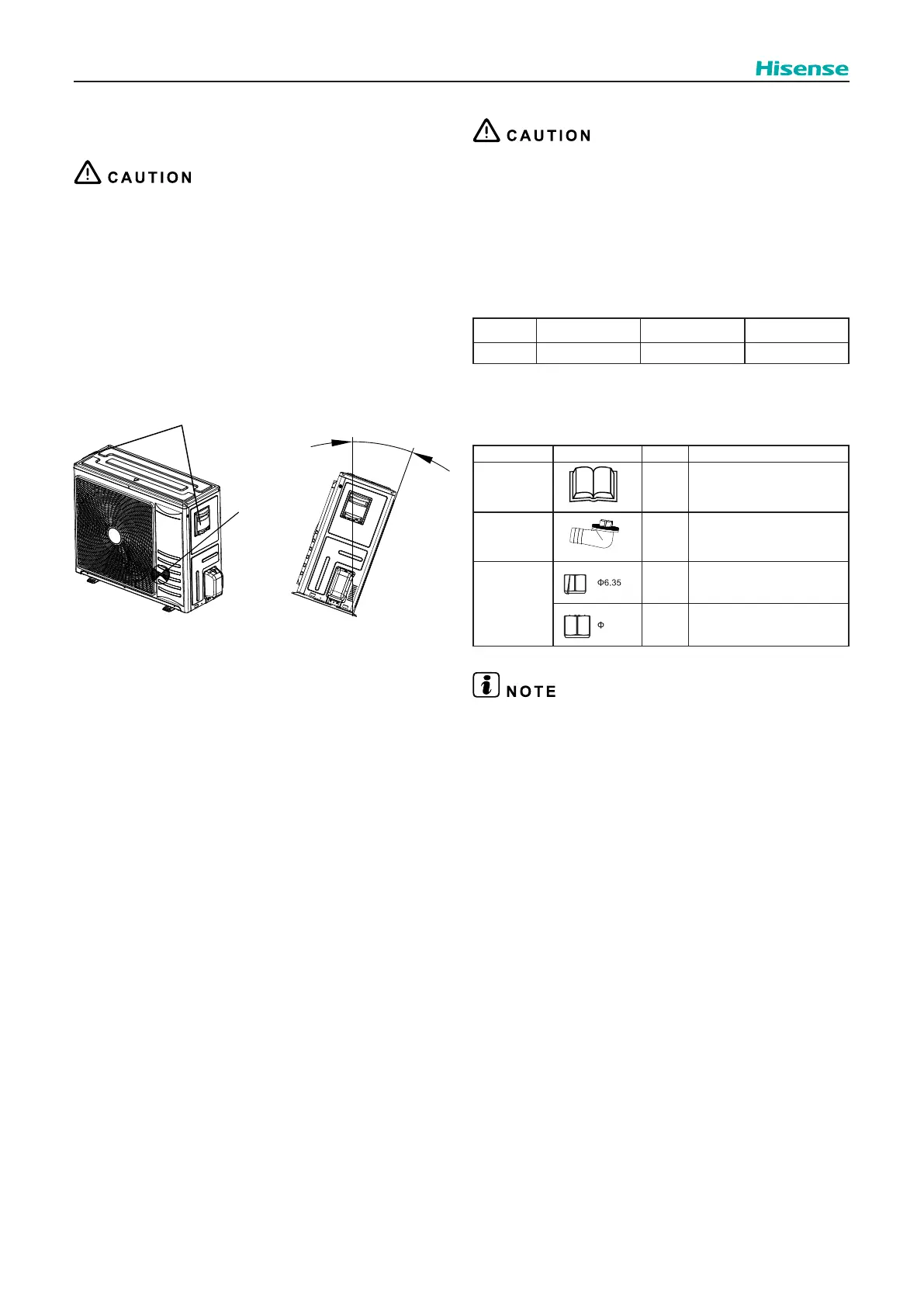

8.3.4 TRANSPORTATION AND HANDLING
Transport the product as close to the installation location as
possible before unpacking.
Do not step on or put any materials on the product.
Do not put any foreign material into the outdoor unit and
check to ensure that none exists in the outdoor unit before the
occur.
When manually lifting the unit using the handles, pay
attention to the following points.
To prevent the unit from overturning, pay attention to the center
Two or more personnel should be used to move the unit.
center of
gravity
Fall angle of the outdoor
unit
Handle
20°
8.3.5 BEFORE OPERATION
approximately 3 months, it is recommended to check the
system by your service contractor.
Make sure that the outdoor unit is not covered with snow or
ice. If covered, remove it by using hot water (approximately
50°C). If the water temperature is higher than 50°C, it will
cause damage to plastic parts.
8.3.5.1
LINE-UP OF OUTDOOR UNITS
Capacity 44(2.0HP) 60(2.5HP) 80(3.0HP)
Model AHW-044HCDS1 AHW-060HCDS1 AHW-080HCDS1
8.3.5.2
FACTORY-SUPPLIED UNIT COMPONENTS
Check to ensure that the following accessories are packed
with the outdoor unit.
Accessory Image Qty. Purpose
Instruction
manual
1
Basic instructions for the
installation of the device
Drain nozzle 1
For water discharge when
necessary
Flare Nut
1
Piping connection for liquid
stop valve
1
Piping connection for gas
stop valve
12.7
The previous accessories are supplied inside the unit.
If any of these accessories are not packed with the unit or any
damage to the unit is detected, please contact your dealer.
