Hi-Therma Split system - Outdoor unit (AHW-044/060/080HCDS1)
? NOTE
 Be sure to place the lead wire outlet downward when assembling the motor.
 Fix the motor lead wire onto the motor clamp using a cord band as before to avoid obstructing the propeller fan.
 Connect the motor lead wire to O.U. main PCB. (Insert into the connector (CN14) on the O.U. main PCB).

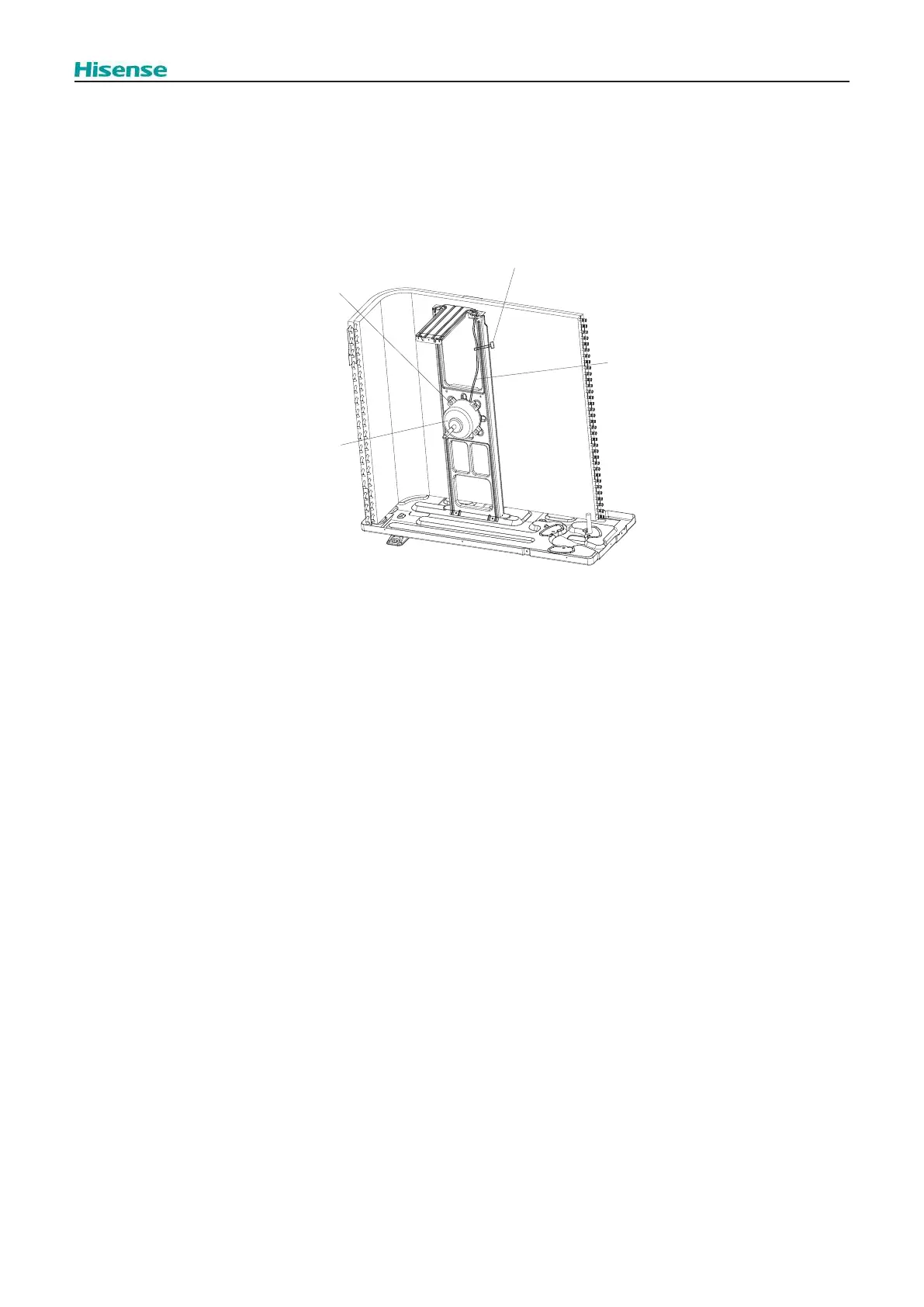

Fig.2.6
2.1.5 Removing the outdoor fan motor
1. Remove the pipe cover following “2.1.1 Removing the pipe cover”.
2. Remove the front cover and upper cover following “2.1.2 Removing the front cover and upper cover”.
3. Remove the Propeller fan following “2.1.4 Removing the Propeller fan”.
4. Remove the fan motor connector (CN14) inserted into the O.U. main PCB in the electrical box.
5. Fig.2.6.
Four screws
Fixing Clamp
Fan motor
lead wire
Fan motor
