Hi-Therma Integra system - Indoor unit (AHS-044/060/080HCDSAA-23)
2.3 Hi-Therma Integra system - Indoor unit (AHS-044/060/080HCDSAA-23)

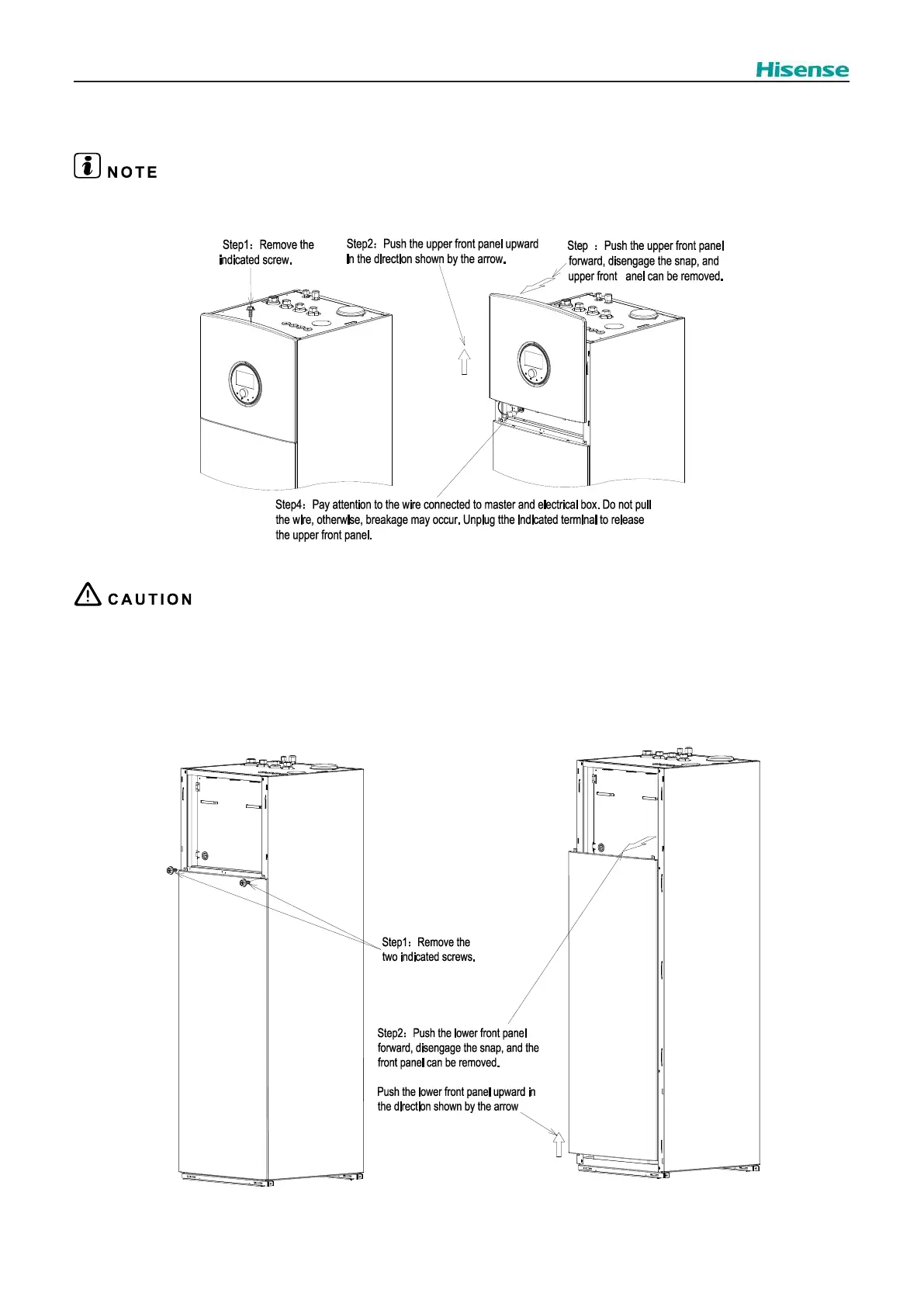

2.3.1 Removing the upper front panel
The indoor unit front panel needs to be removed for any task inside the indoor unit.
Take care with the LCD display of the master controller while removing the front panel.
Be careful not to drop the front panel during operation.
Take care when removing front panel, the parts inside the unit could be hot.
2.3.2 Removing the lower front panel
1) Remove the upper front panel as explained in “2.3.1 Removing the upper front panel”.
2) To reassemble a new upper front panel, proceed in a reverse way than disassembling.
3) To reassemble a new lower front panel, proceed in a reverse way than disassembling.
3
