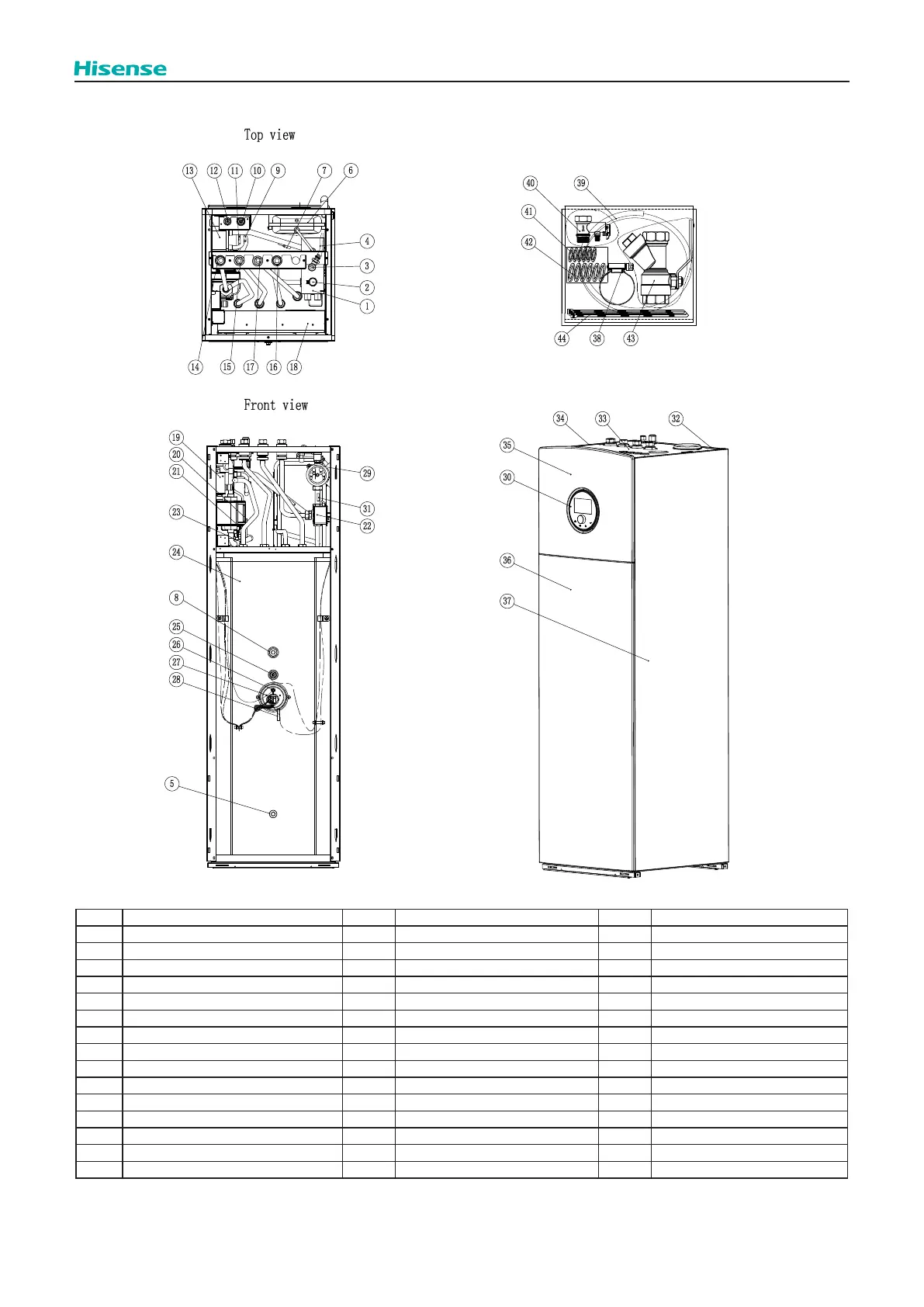

6.3.2 Structure of Hi-Therma Integra Indoor Unit
Mark Part Name Mark Part Name Mark Part Name
1 Auxiliary Electric Heater(AEH) 16 Space Heating/Cooling Water Outlet 31 Outlet Water Thermistor(Tow)
2 Air purge valve 17 DHW Inlet (Cold Water) 32 Back Panel
3 Safety valve 18 Electrical Box 33 Top Panel
4 Drain pipe for safety valve 19 Safety Thermostat 34 Left Side Panel
5 Drainage Outlet 20 Water Pressure Sensor(Pw) 35 Upper Front Panel
6 Expansion Vessel 21 Water Pump 36 Lower Front Panel
7 Outlet HP Water Thermistor(TowHP) 22 3-Way Valve 37 Right Side Panel
8 Electronic Anode 23 Inlet Water Thermistor(Tiw) 38 Drain pipe clamp
9 Gas Refrigerant Pipe Thermistor(Tg) 24 DHW Tank 39 Drain pipe
10 Refrigerant Gas Pipe 25 DHW Thermistor (TDHW) 40 Pressure Relief Valve
11 Liquid Refrigerant Pipe Thermistor(TL) 26 Safety Thermostat 41 Gasket 1(G 3/4”)
12 Refrigerant Liquid Pipe 27 DHW Electric Heater 42 Gasket 2(G 1”)
13 Plate Heat Exchanger 28 DHW Thermistor (TDHW1) 43 Shut-o󰀨 Valve
14 Space Heating/Cooling Water Inlet 29 Electric Heater Thermostat 44 Cable Tie
15 DHW Outlet (Hot Water) 30 Controller
