Hisense AHM-080HCDSAA - Water Cycle for Space Cooling

230
Control function

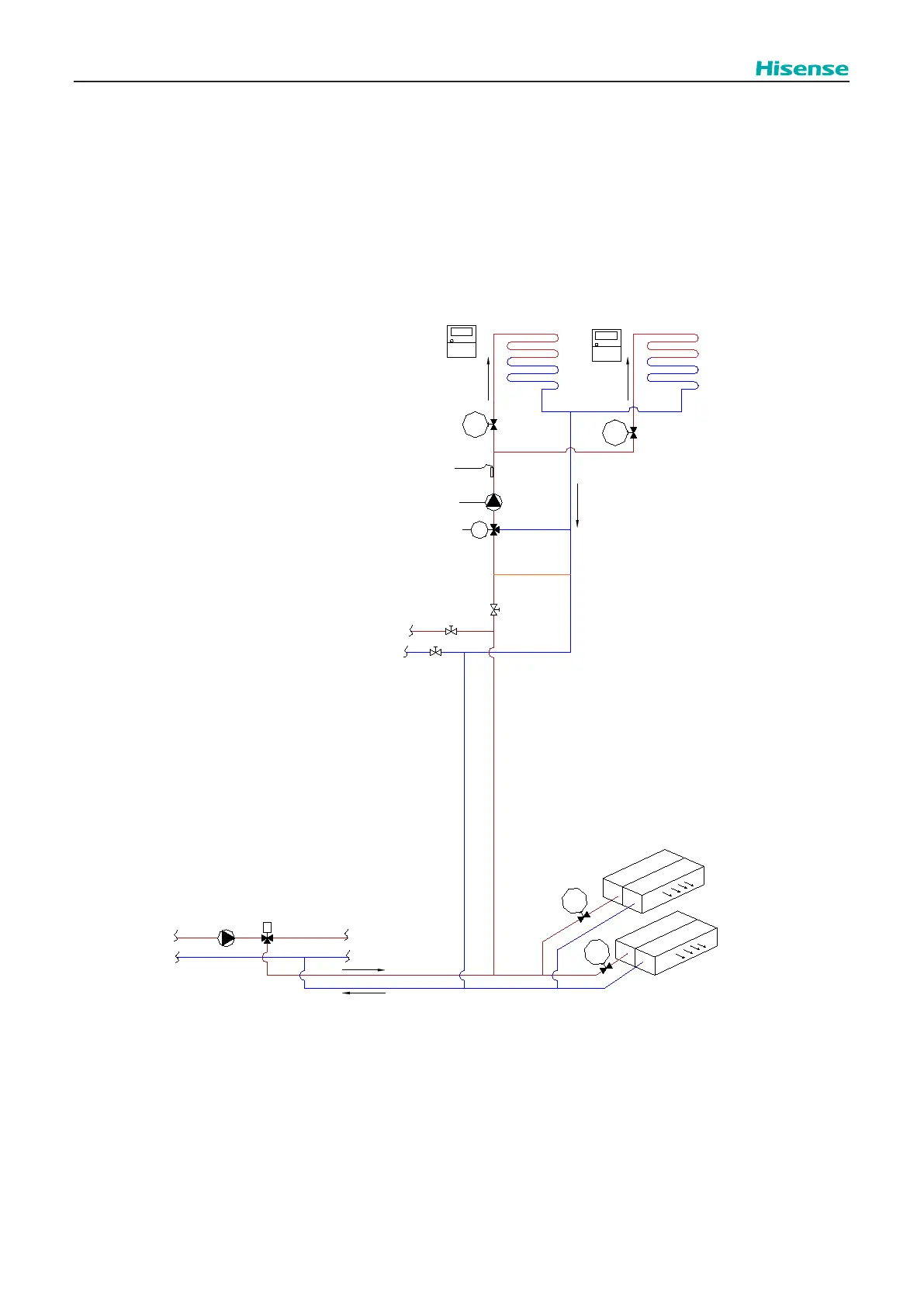

10.2.3 Water Cycle for space cooling
In addition, the unit can be combined with fan coils to delivery space cooling. When space cooling operation is required, the
3-way valve for cooling changes its normal position diverting to the fan coils, allowing to delivery cooling capacity.
Space cooling is operated by Water Cycle 1 or combination of Water Cycle 1 and Water Cycle 2.
Cycle 1 will be direct (low temperature for fan coils operation (5~12ºC)) and Cycle 2 will be a mixing cycle in order to have a
second temperature control using mixing valve (medium temperature for oor refreshing operation (16~21ºC)). Additionally,
a motorized valve can be added in order to close direct cycle when not in use . To get these 2 water temperature levels,
a mixing station is required. This mixing station is controlled using the indoor unit by means of a mixing valve / additional
pump (WP2) /additional water sensor (Tow2).
3wv Cooling
WP2
Tow2
M
ACT3
Vmix
WP1
cycle_2_room_1
Wired1
cycle_2_room_2
Wired2
ACT4
ACT1
ACT2
Fan Coil
cycle_1_room_1
cycle_1_room_2
NOTE:
1. When space cooling is available Optional Output signal need be congured as function of [3WV cooling] to drive 3-way
valve for space cooling.
2. When Cycle 2 is available Auxiliary sensor on PCB1 of indoor unit need be congured as function of [Tow2] . Refer to
10.10.
3. When Cycle 2 is available Optional Output signal need be congured as function of [WP2]. This Output signal can be
used as relay signal to wp2. Refer to10.10.
