Control function
10. Control function
10.1 Basic function introduction
There are four main functions than can set on the master controller interface and incorporate into the heat pump and water
circulation.
The conguration of this option should be done through the master controller.
Conguration →Complementary Heating →Boiler
Mark Description Default Value Range Steps Units
PDS Point of DHW & SWP Before Hydr S Before Hydr S / After Hydr S _ _

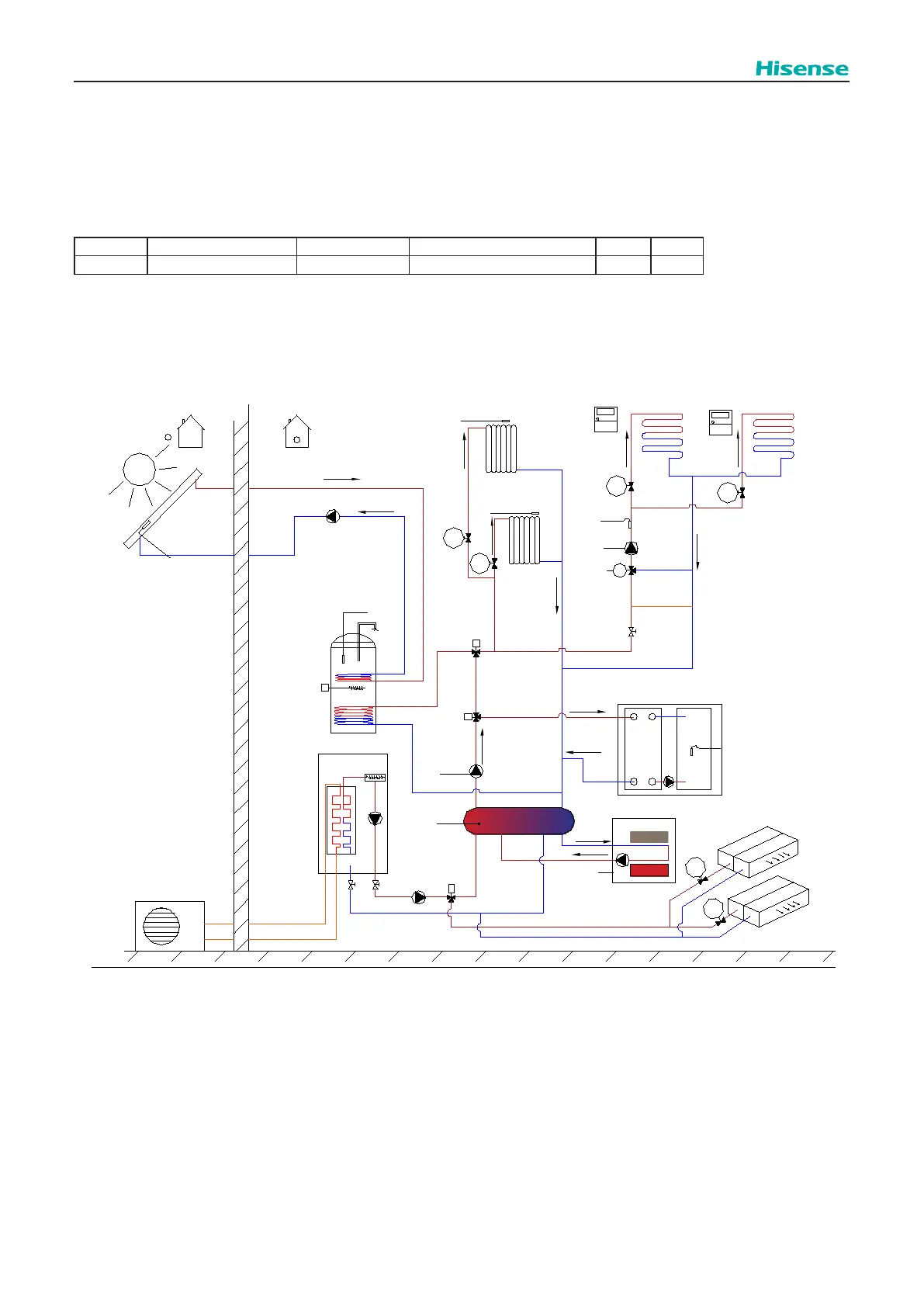

(1) Point of 3-way valve for DHW and 3-way valve for swimming pool is after hydraulic separator. [Point of DHW & SWP]
set as [After Hydr S]. It is possible to use boiler to heat up DHW and SWP referring to 10.6.3 and 10.6.4. WP3 o󰀨ers total
hydraulic head for all water circulation of DHW/SWP/Space Heating.
