Control function
10.9.6 Duty Control
Duty signal (0-10V, 0-5V or 4-20mA)can used to adjust setting temperature of Water Cycle 1 , Water Cycle 2, DHW or
SWP.
The conguration of this option should be done through the master controller.
Conguration →Auxiliary Function →Demand Control(duty)
Mark Description Default Value Range Steps Units
duty_s Status Disabled Disabled/Enabled - -
duty _m Signal Type 0-10V
0-10V
0-5V
4-20mA
- -
duty _f Setting function DHW
DHW
cycle1
cycle1
SWP
- -
NOTE:
1. Auxiliary sensor on PCB1 of indoor unit need be congured as function of [duty] to detect duty signal. Refer to 10.10.
(1) Set [duty_s] as [Enabled] to activate Duty Control Function.
(2) Set [duty _m] to choose Signal Type when Duty Control Function is activated.
(3) Set [duty _f] to choose specic function to adjust setting temperature when Duty Control Function is activated.

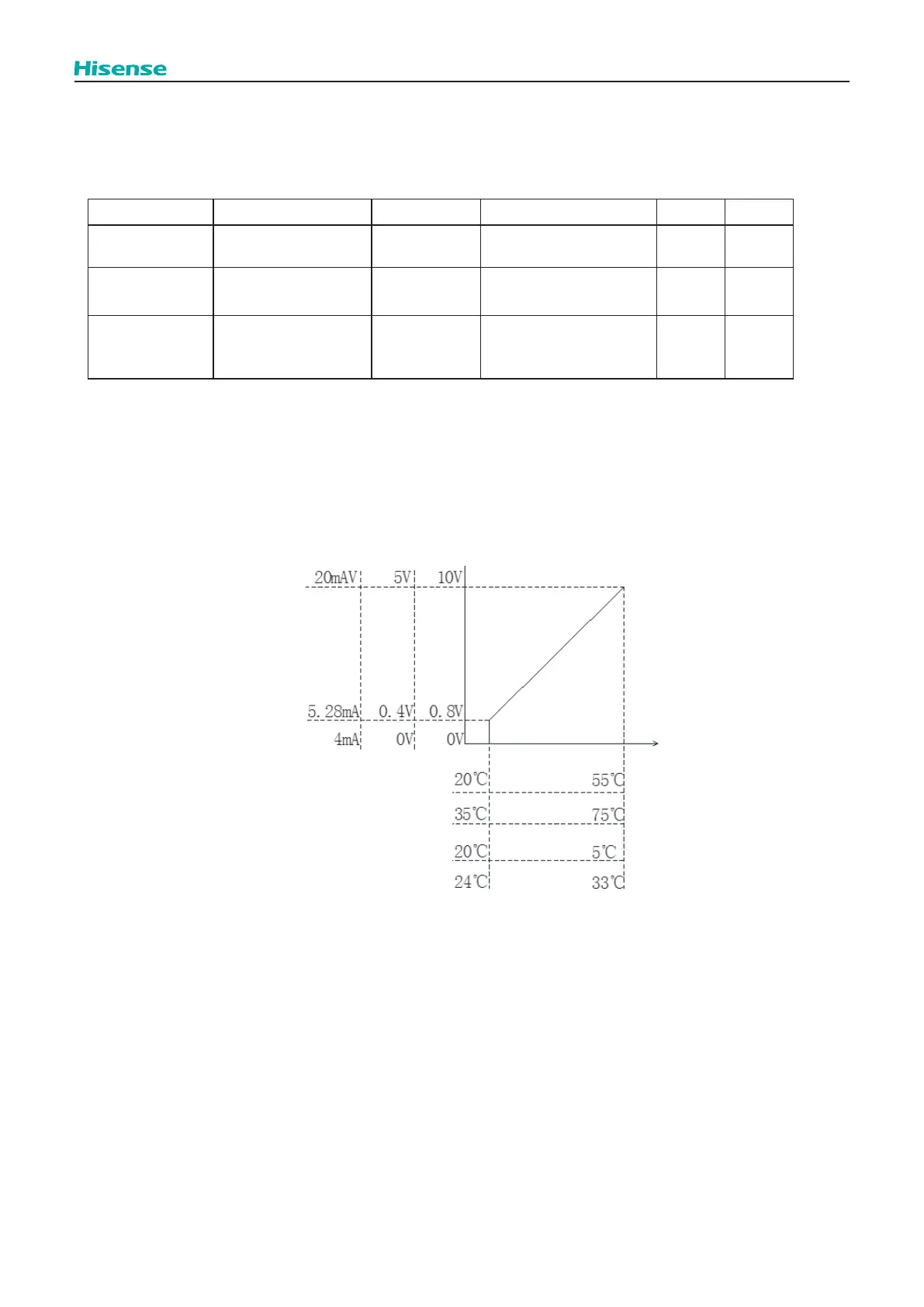

Setting temperature of specic function is adjusted according to duty signal as following.
Water cycle1 at hea�ng
Water cycle2 at hea�ng
DHW
Water cycle1 a t cooling
Water cycle2 at cooling
SWP
