Hi-Therma Integra system - Indoor unit (AHS-044/060/080HCDSAA-23)
2.3.8.3

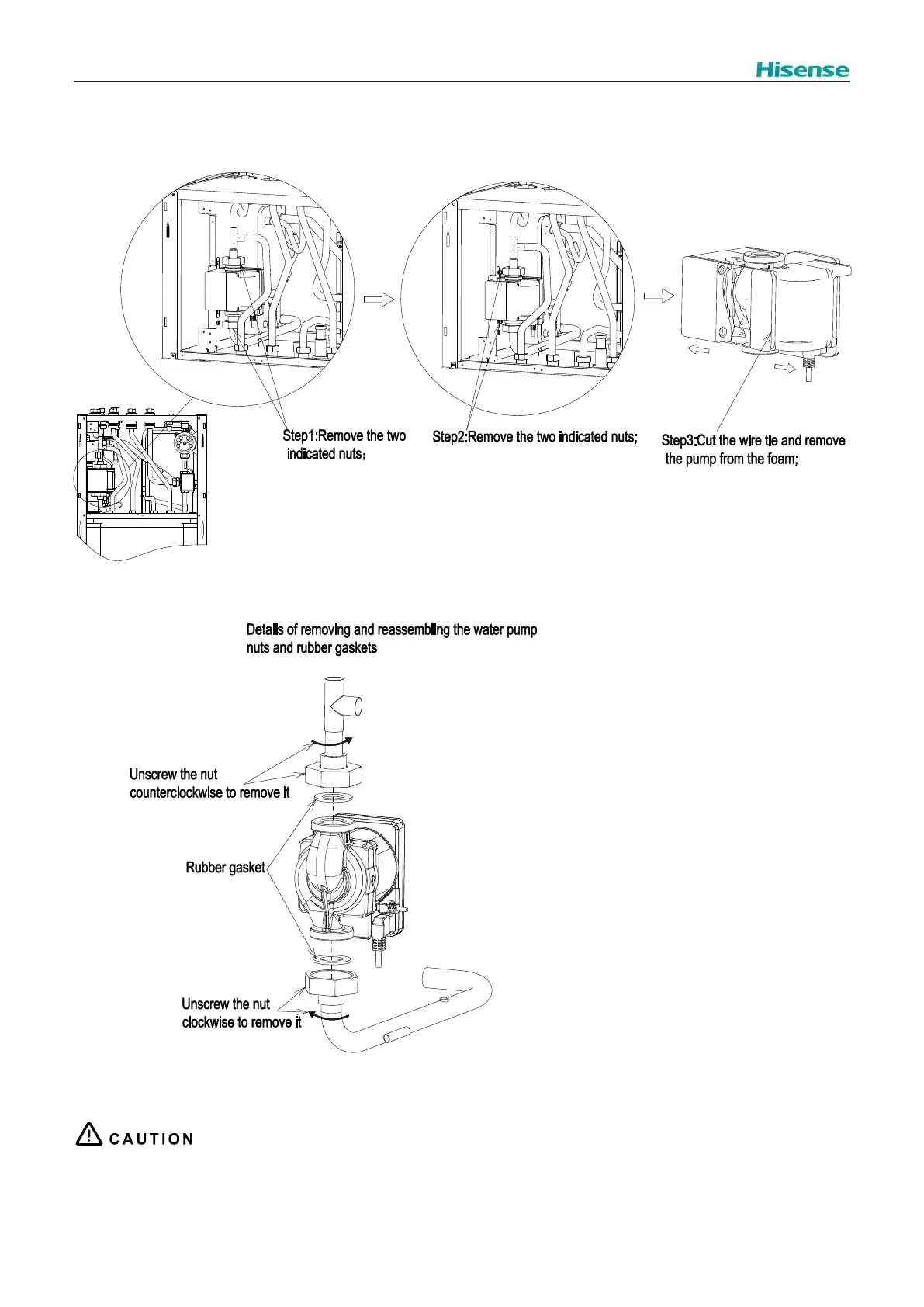

Removing the Water Pump
At the connection of water pipe nut and water pump pipe nozzle, a rubber gasket needs to be installed to prevent water leakage.
When removing the water pump, be careful not to damage the gasket. If damaged, it needs to be replaced with a new one;
Proceed in a reverse way to reassemble a new water pump, and check whether there is water leakage after reassembly.
1) Remove the upper front panel as explained in “2.3.1 Removing the upper front panel”.
4) To reassemble a new water pump, proceed in a reverse way than disassembling.
