Hi-Therma Split system - Outdoor unit (AHW-044/060/080HCDS1)
Note:
1.
location or there is a risk of water intruding into the PCB and causing short circuit.
2. The outdoor unit electrical box assembly are used as maintenance spare parts, and can be replaced as a whole during
maintenance.
Electrical box
cover
Screws
PCB
Fin
Electrical box
Screws
PCB
Screws
Tfin
Fin
PCB

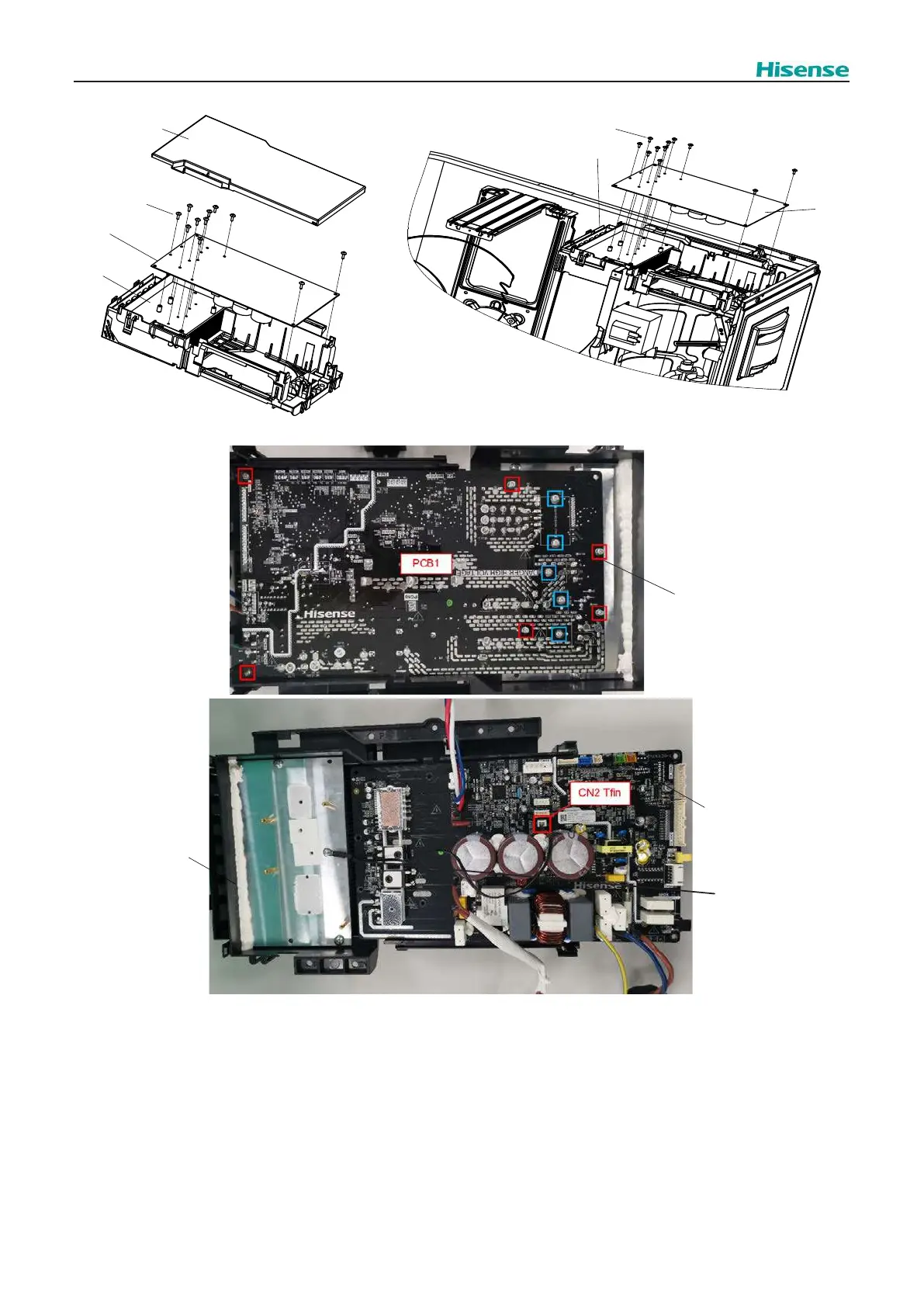

Fig.2.17 Replacing PCB and Fin
To Next Page
