Honeywell UDC2800 User Manual

230
Sensor Type
PV Input Range Range Values
°F °C 0% 100%
Linear
Milliamps 4 to 20 mA
0 to 20 mA
4.00 mA
0.00 mA
20.00 mA
20.00 mA
Millivolts 0 to 10 mV
0 to 50 mV
0 to 100 mV
0.00 mV
0.00 mV
0.00 mV
10.00 mV
50.00 mV
100.00 mV
Volts 1 to 5 Volts
0 to 5 Volts
0 to 10 Volts
1.00 Volts
0.00 Volts
0.00 Volts
5.00 Volts
5.00 Volts
10.00 Volts
Carbon Oxygen 0 to 1250 mV
-30 to 510 mV
0.00 mV
-30.00 mV
1250.00 mV
510.00 mV
*The Factory Calibrated millivolt values for the Thermocouple
Differential Input are for a pair of J thermocouples at an ambient
temperature mean of 450° F / 232 ° C. Other thermocouple types
and ambient temperature means may be accomplished via Field
Calibration of the input, with the range value limits being –4 mV to
+16 mV for the zero and span values.
Preliminary Information
Disconnect the Field Wiring
Tag and disconnect any field wiring connected to the input (#1 or
#2) terminals on the rear of the controller.

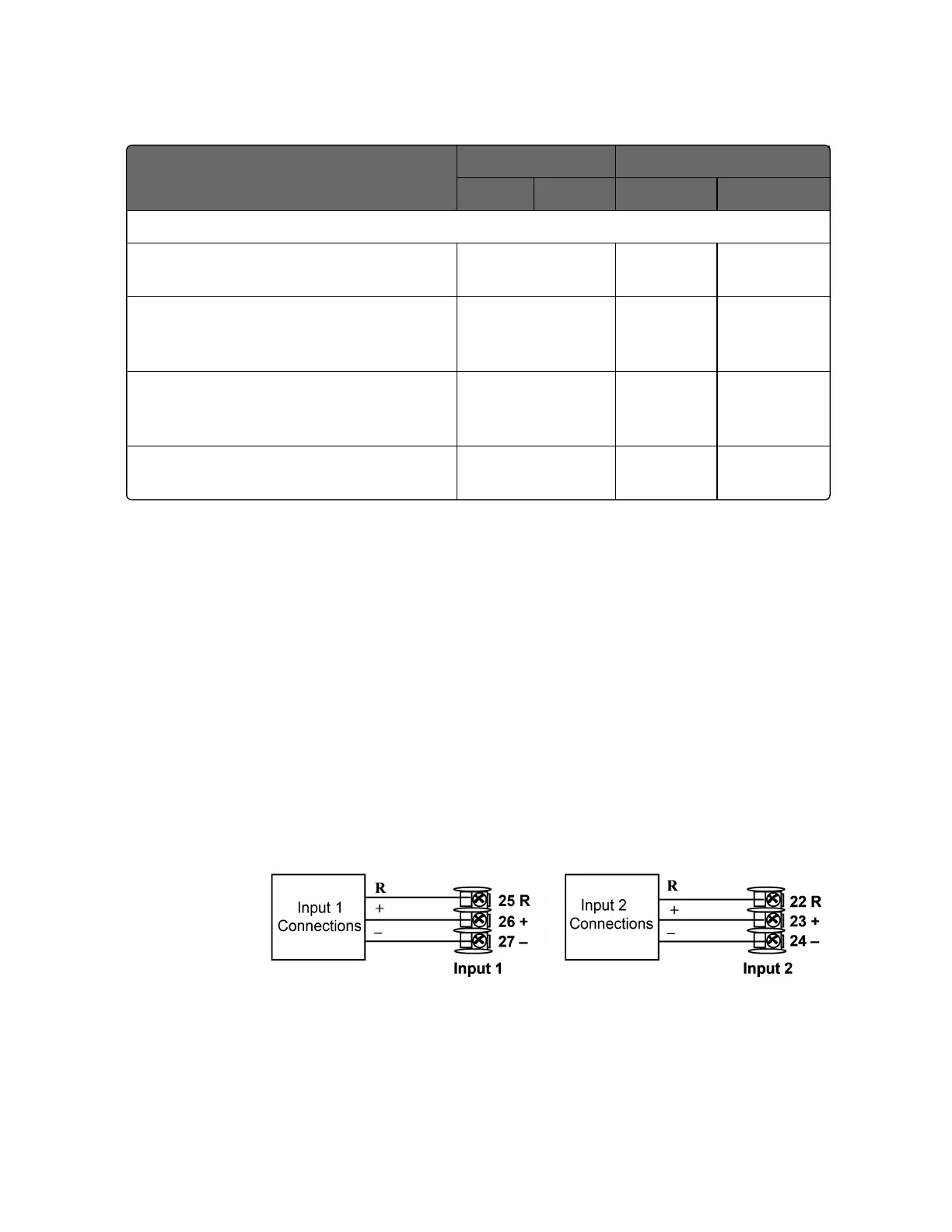

Figure 6-1: Input 1 and Input 2 Wiring Terminals
Chapter 6 - Input Calibration

Honeywell UDC2800 Specifications

General

Control Modes	PID, ON/OFF, Manual
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, mV, V
Output Types	Relay
Power Supply	100-240 VAC, 50/60 Hz
Communication	RS-485 Modbus RTU
Enclosure Rating	NEMA 4X
