PARTS LIST
Exploded View
Introduction
This figure shows an exploded view of the UDC2800 Controller. Each
part is labeled with a key number. The part numbers are listed by key
number in table Parts Identification.
NOTE: Not all parts are standard.
ATTENTION: Internal parts of the product must be replaced
and maintained by Honeywell representative.

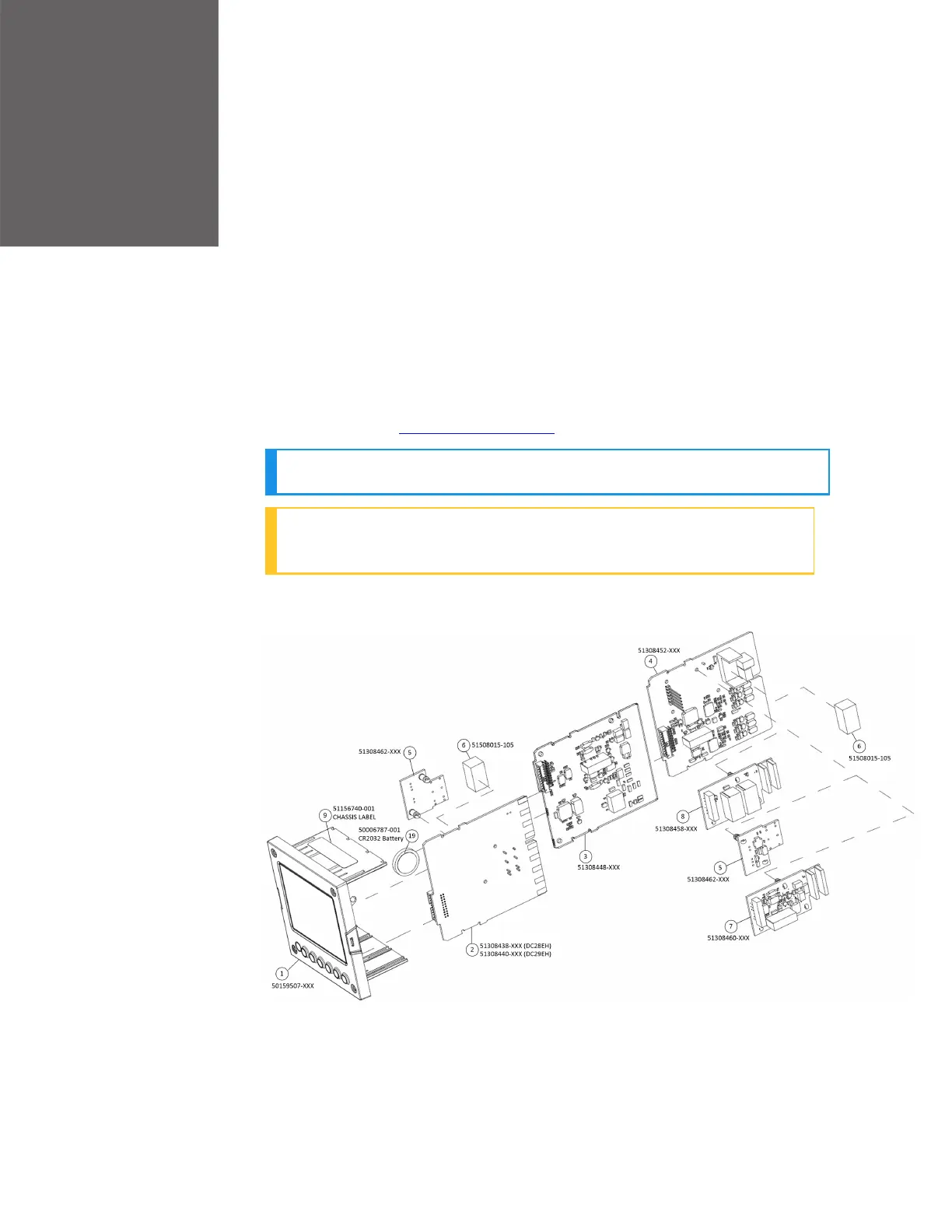

Figure 9-1: UDC2800 Exploded View
276

Honeywell UDC2800 Specifications

General

Control Modes	PID, ON/OFF, Manual
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, mV, V
Output Types	Relay
Power Supply	100-240 VAC, 50/60 Hz
Communication	RS-485 Modbus RTU
Enclosure Rating	NEMA 4X
