Removing the chassis

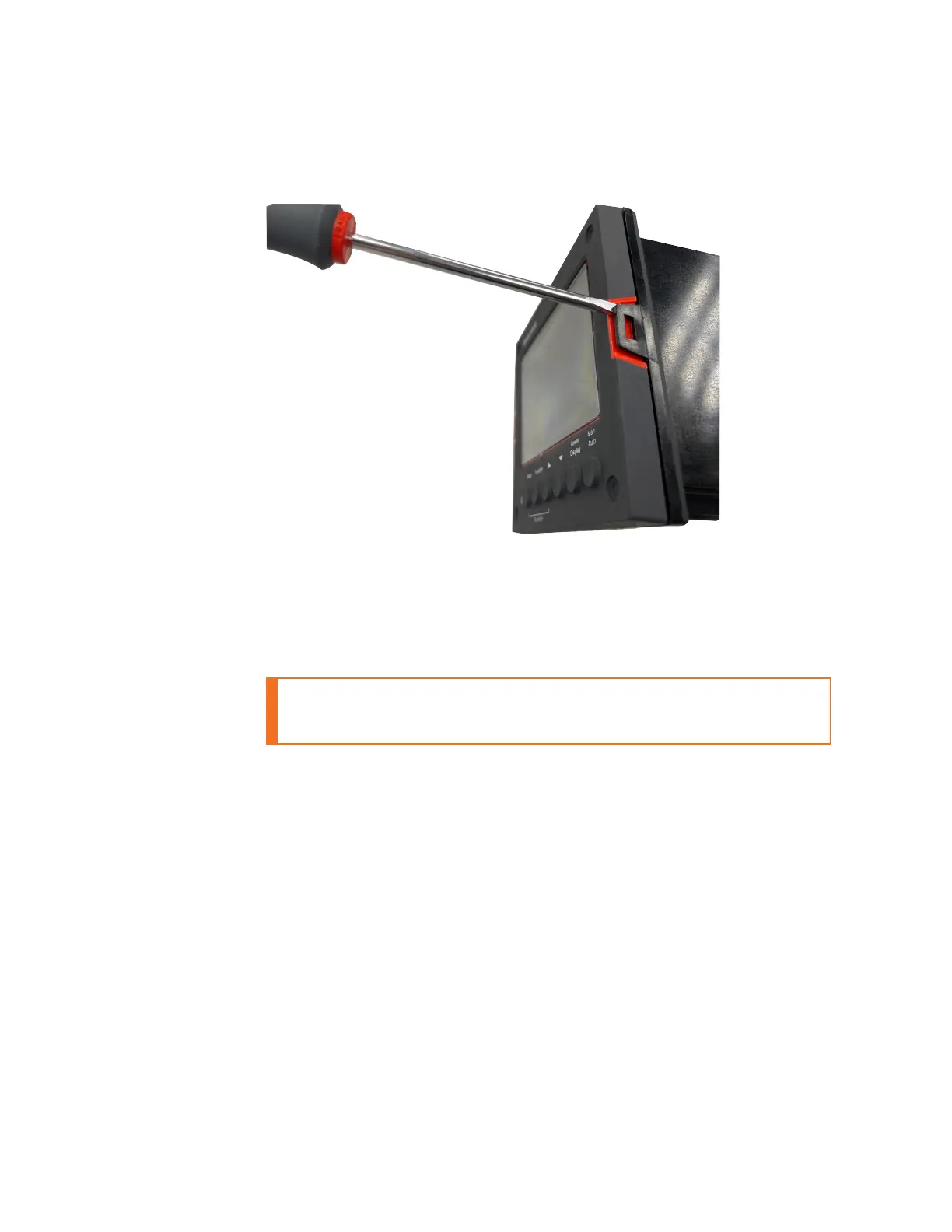

Using a thin screwdriver, gently twist the screwdriver to pry the side
tabs from the front face. Pry just enough to release it, otherwise you’ll
bend or break the tab . If you break or bend the tab and can’t reattach
the front snugly, you’ll need to reattach the front using the 4 NEMA4
screws provided. See Mounting for more information.
WARNING: Do not put your fingers inside the case to touch rail
terminals to avoid electric shock.
281
Chapter 9 - Parts List

Honeywell UDC2800 Specifications

General

Control Modes	PID, ON/OFF, Manual
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, mV, V
Output Types	Relay
Power Supply	100-240 VAC, 50/60 Hz
Communication	RS-485 Modbus RTU
Enclosure Rating	NEMA 4X
