280

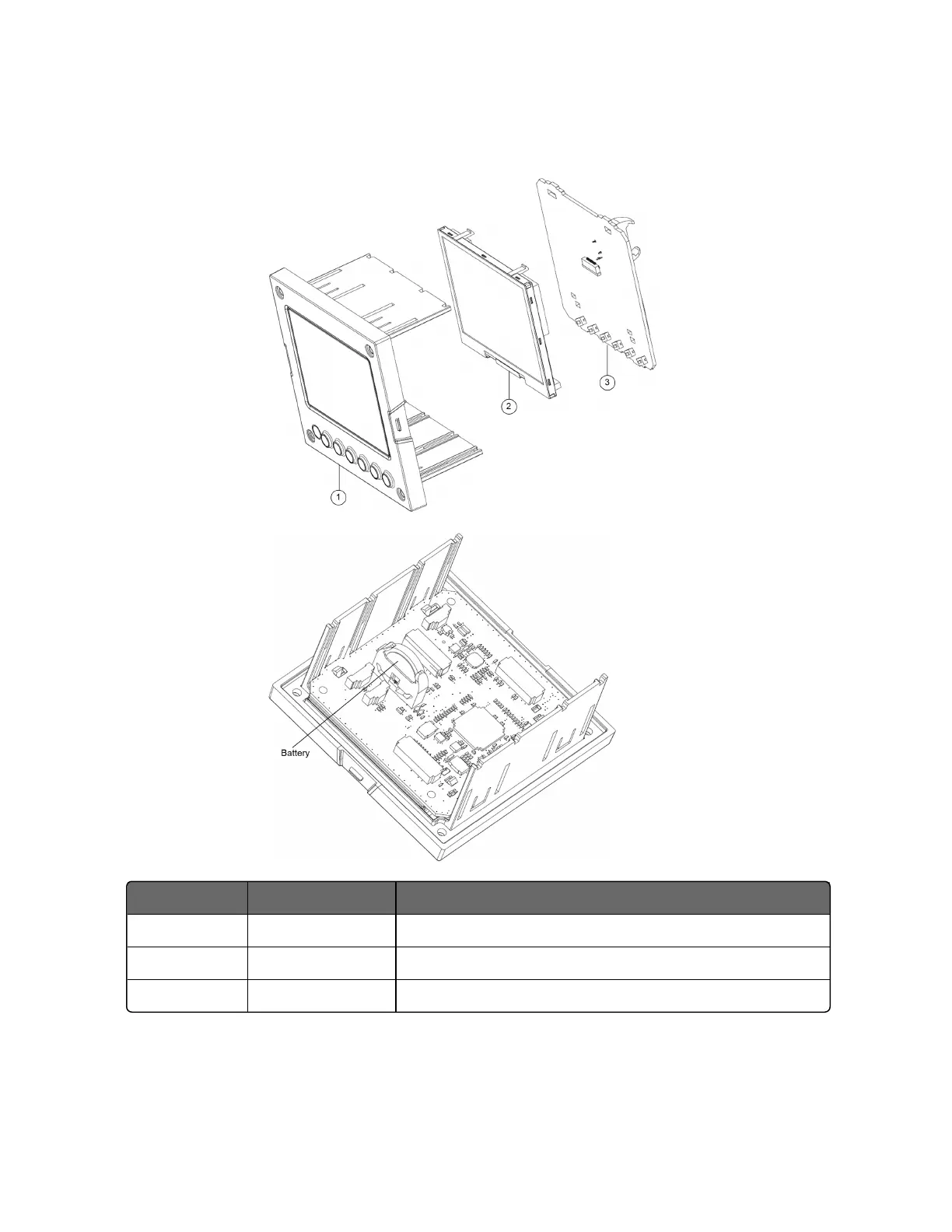

Figure
9-2:
50159507
Exploded
View
Key
Number
Part
Number
Description
1
50150597-501
CHASSIS
ASSEMBLY,
UDC
2
50152823-501
TFT-LCD
module
for
UDC2800,
CTM320240N01
3
51308456-526
MCU/Display
PWA
Chapter
9
-
Parts
List
279
