HP 8753E Service Manual

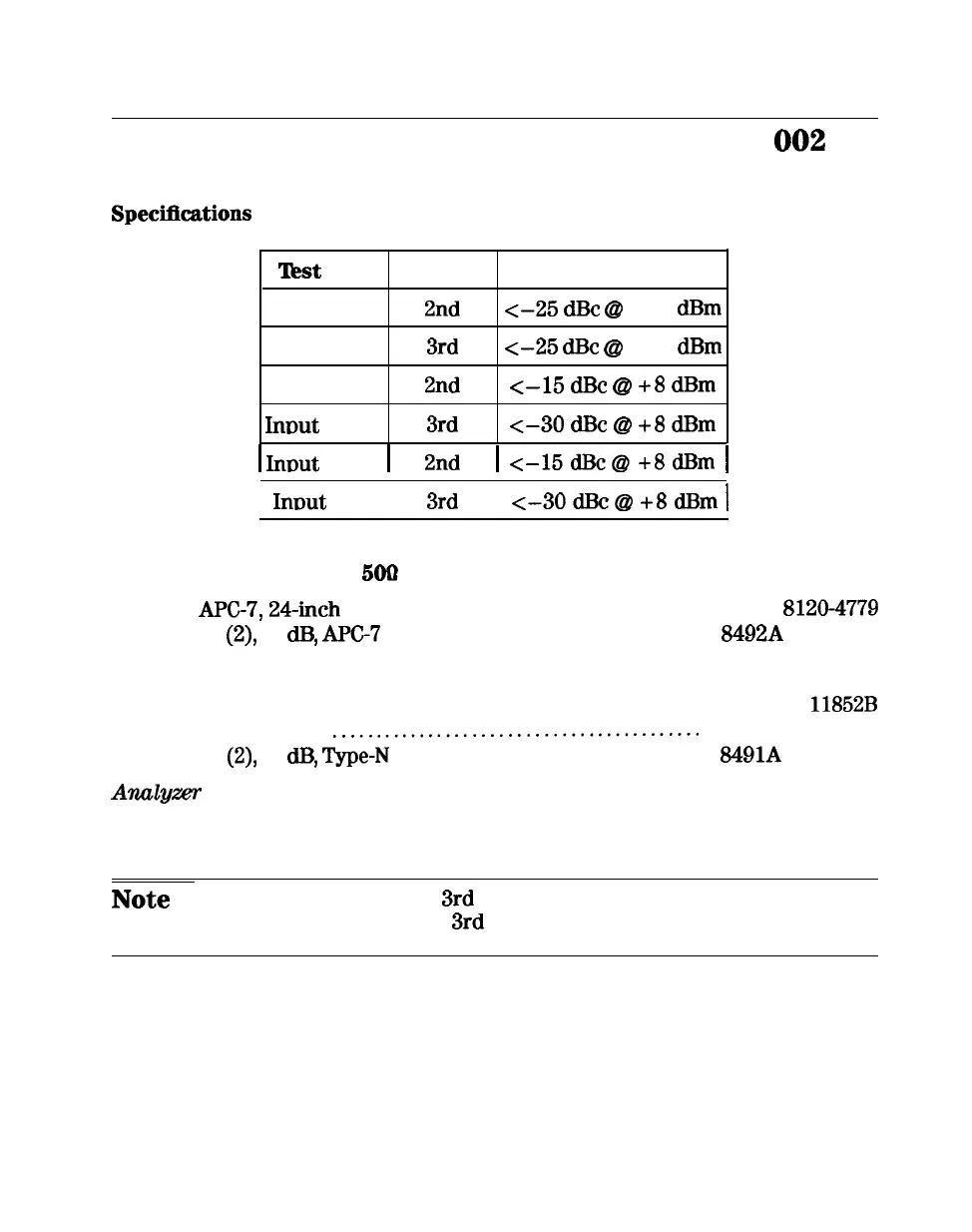

16. Test Port Output/Input Harmonics (Option 002
Analyzers without Option 006 Only)
Specilkations
lkst Port Harmonic
Limit
output
2nd c-25 dBc @I + 10 dBm
Output
3rd c-25 dBc @I + 10 dBm
Input Port 1 2nd
c-15 dBc @ +8 dBm
InDut Port 1
3rd c-30 dBc @ +8 dBm
1 Inout Port 2 1 2nd
1 <-15dBc@+8dBm 1
I InDut Port 2 I
3rd I <--3OdBc@ +8dBm 1
Equipment Required for 500 Analyzers
Cable, APC-7, 24-inch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP P/N 8120-4779
Attenuator (2), 20 dB, APC-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP 8492A Option 020
Equipment Required for 75 ohm Analyzers
Minimum Loss Pad (2)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP 11852B
Cable, Type-N . . . . . .
..,....................,..................
HP P/N 8120-2408
Attenuator (2), 20 dB, Type-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP 8491A Option 020
Anulgwr warmup time: 30 minutes
Perform this test to determine the spectral purity of the HP 8753E input and
output test ports
Note
The test port input 3rd harmonic specifications are better than
the test port output 3rd harmonic specifications
System Verification and
2-85
Performance Tests
