Test
Port 2
Input
Frequency Response from 3
GHz
to 6
GHz
47. When the analyzer displays the message
POWER METER CALIBRATION SWEEP
DONE,
connect the equipment as shown as in Figure 2-24.
HP
8753E
-.-~~
NETWORK ANALYZER
PORT
1
U
PORT 2
CABLE
24 INCH

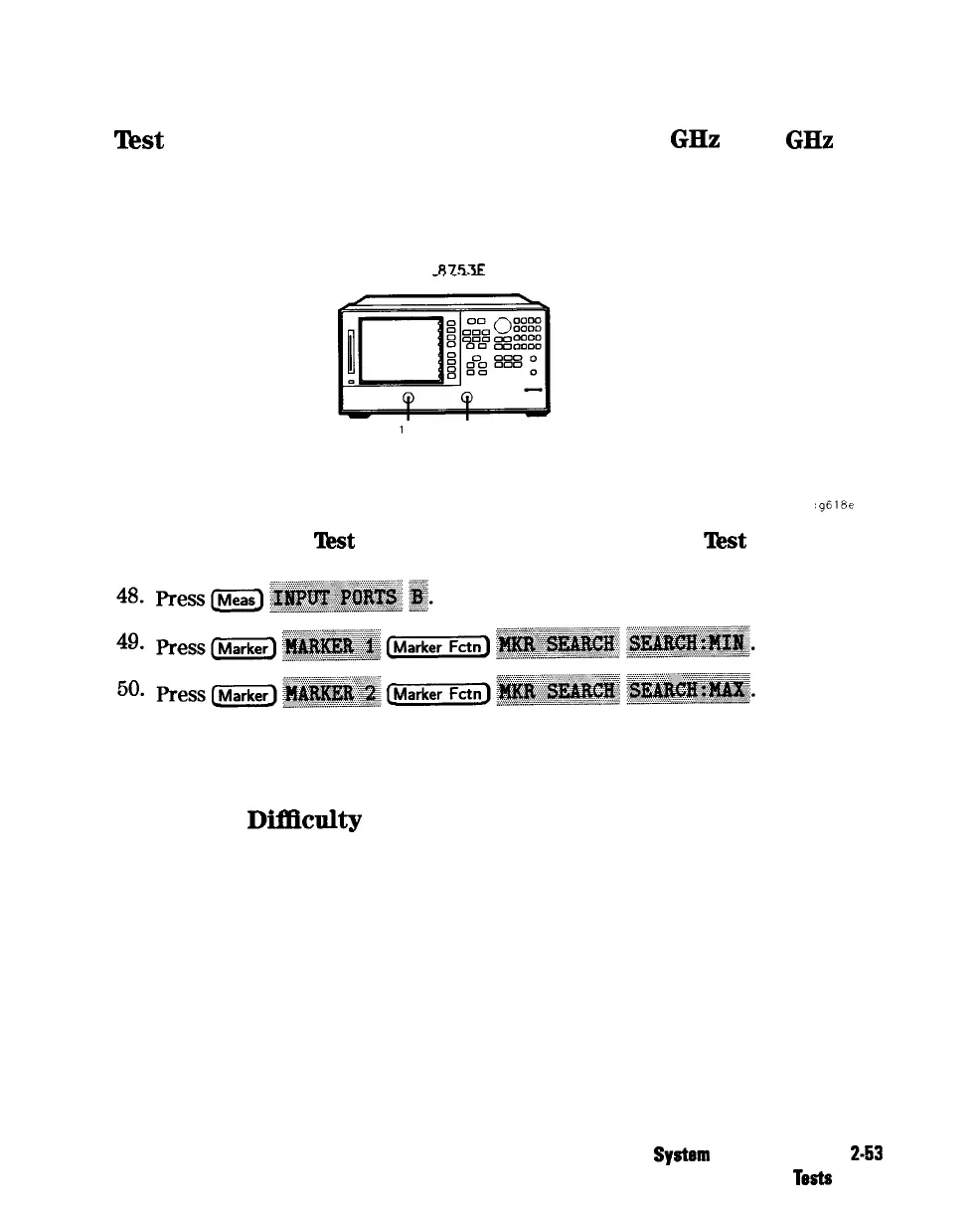

Figure 2-24.
‘Ikst
Port 2 Input Frequency Response
‘lkst
Setup
51. Write the marker 1 or marker 2 reading, whichever has the largest
magnitude, in the “Performance Test Record.”
In Case of
Difaculty
1. Be sure you have used the correct power sensor for the frequency range.
2. Verify that the calibration factors that you have entered for the power
sensors are correct.
3. Repeat this test with a “known good” through cable.
System
Verification and
2-53
Performance
Teete
