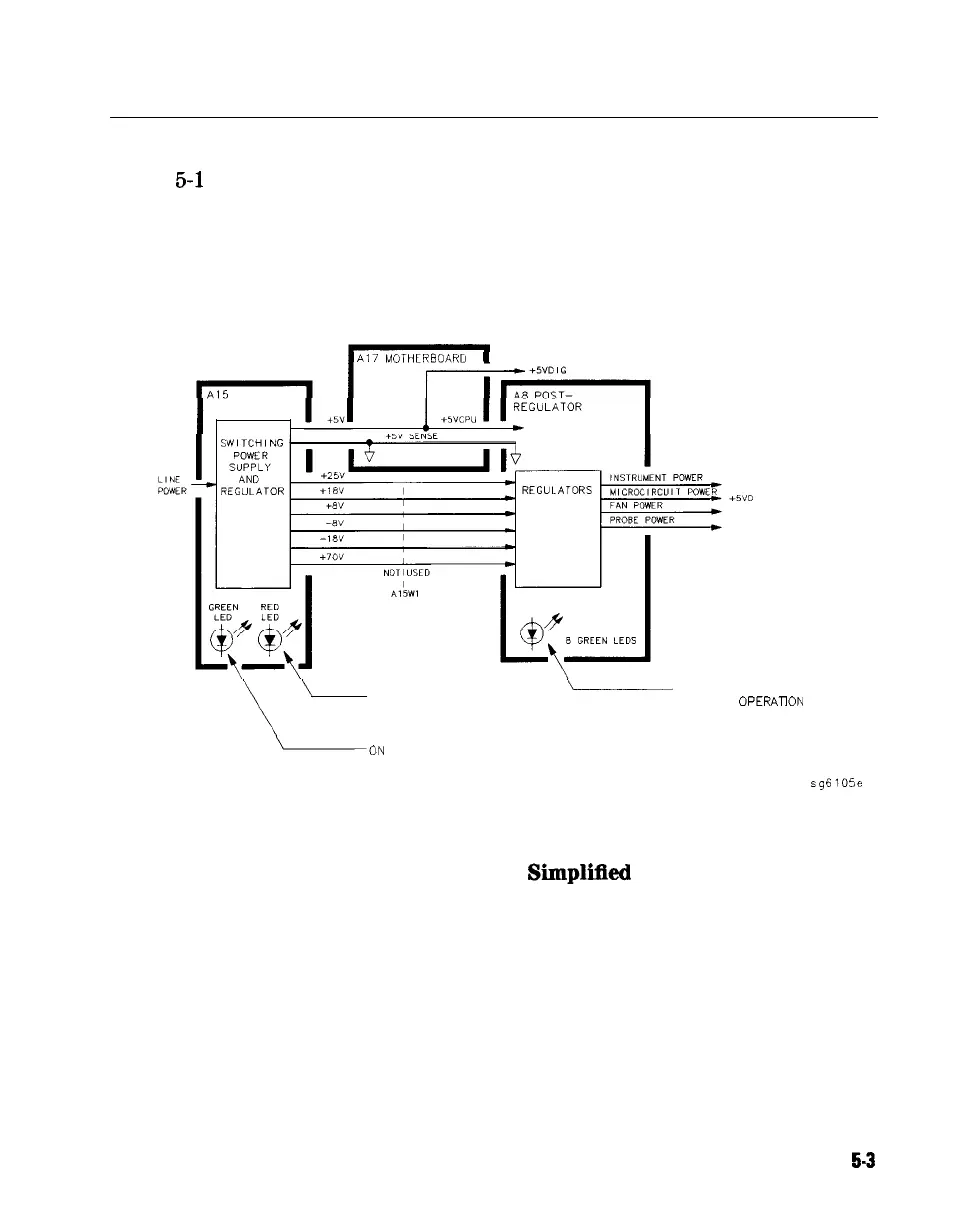

Simplified Block Diagram
Figure
5-l
shows the power supply group in simplified block diagram form.
Refer to the detailed block diagram of the power supply (Figure 5-8) located at
the end of this chapter to see voltage lines and specific connector pin numbers.
A17
MOTHEREOARG
PREREGULATOR
OFF DURING
\
ALL ON DURING
NORMAL OPERATION
NORMAL
OPERAllON
\ON
DURING
NORMAL OPERATION
sg6105e
Figure 5-1. Power Supply Group
Simplified
Block Diagram
Power Supply Troubleshooting
5-3
