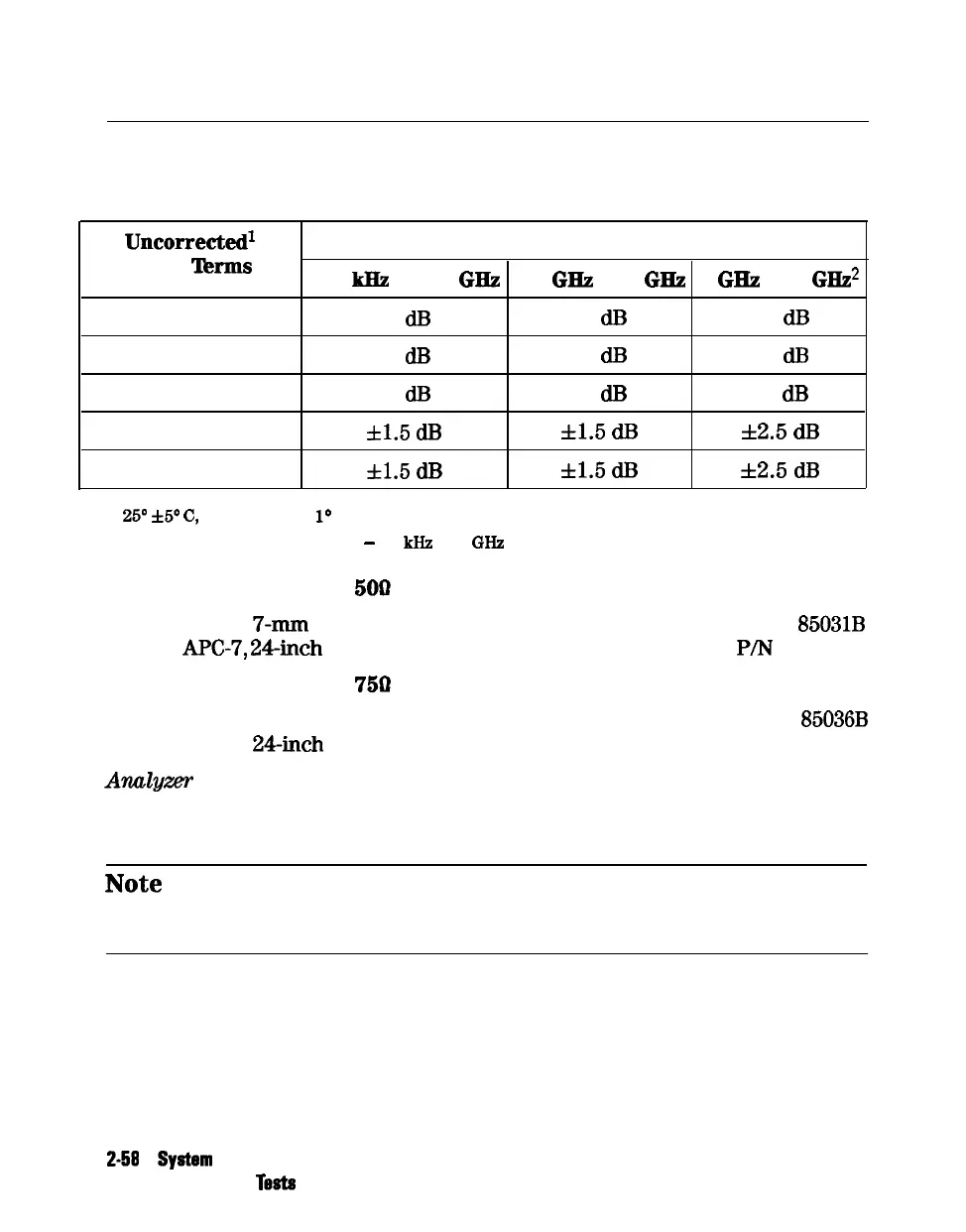

HP 8753E Service Manual

9. Calibration Coefficients
Specifications
Uncorrected1 Frequency Range
Error ‘kms
300 kBz to 1.3 GHz 1.3
GElz to 3 GHz 3 GHz to 6
GHz2
Directivity
35 dl3
30 dB 25 dB
Source Match
16 dB
16 dB 14 dB
Load Match
18 dB
16 dB 14 dB
Transmission Tracking f1.5 dB
f1.5 dB f2.5 dB
Reflection Tracking f1.5 dB
f1.5 dB f2.5 dB
1 At 25’ f5O C, with less than lo C deviation from the measurement calibration temperature.
2 Only for analyzers with Option 006 - 30 kHz to 6 GHz range.
Equipment Required for 5011 Analyzers
Calibration Kit, 7-mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , . . . . . . . . . HP 85031B
Cable, APC-7, 24-inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP P/N 81204779
Equipment Required for 75Q Analyzers
Calibration Kit, Type-N
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP 85036B
Cable, Type-N, 24-inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP P/N 8120-4781
Analger warmup time: 30 minutes
Perform this procedure to verify the analyzer uncorrected test port
characteristics.
Note
The crosstalk calibration coefficients are omitted in this
procedure. They are covered in the “Test Port Crosstalk”
performance test.
2-58 Syetem Verification and
Performance Tests
