DIFCLK
DIFDATA*
* DIF DATA consists of 16 serial bits per input conversion.
the LSB is on the right side and is the most volatile.
sg602s

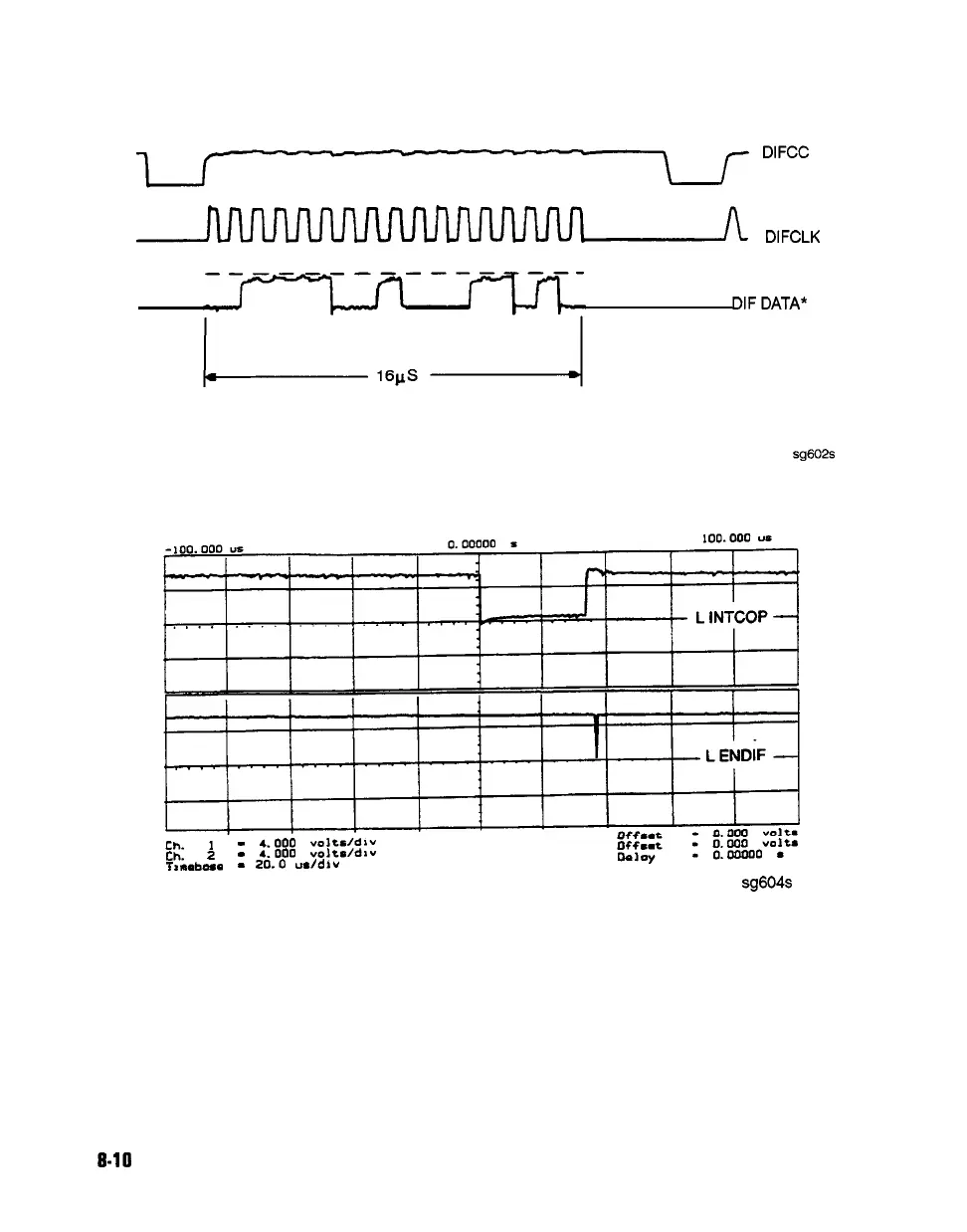

Figure 8-4. Digital Data Lines Observed Using L INTCOP as Trigger
Ch.
1
-
4.000
vo1tc/cirv
Ch.
2
-
1.000
voltddrv
T
,
**boss
-
20.0
“dd2V
sg604s
Figure 8-5. Digital Control Lines Observed Using L INTCOP as Trigger
g-10
Receiver Troubleshooting
354
356
