Node 2
Src
lV/GHz
(source 1 volt per
GHz)

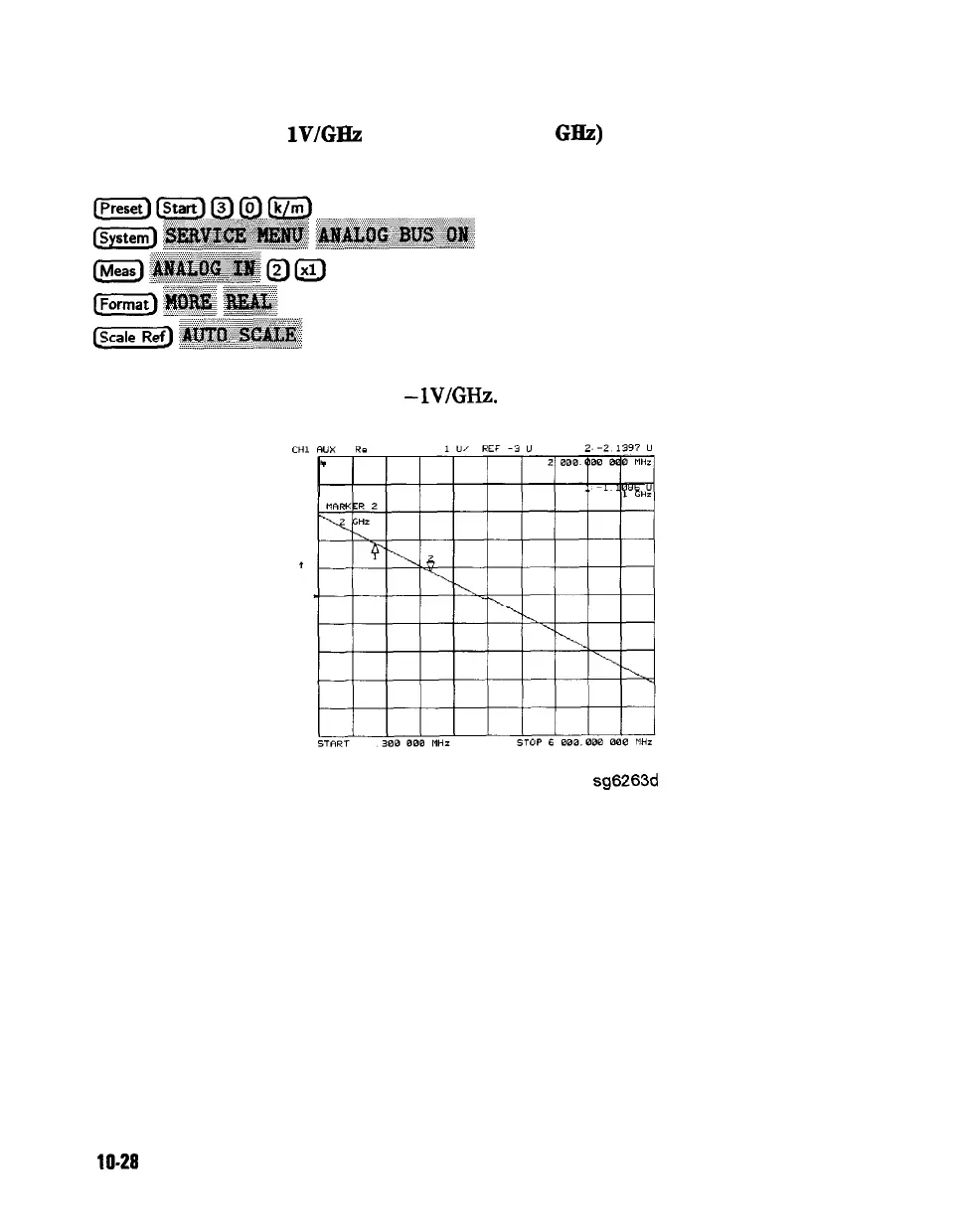

Press the following to view analog bus node 2:
Node 2 measures the voltage on the internal voltage controlled oscillator. Or, in
normal operation, it should read
-lV/GHz.
sg6263d
Figure 10-5. Analog Bus Node 2
W-28
