6.
A synthesized sub sweep is generated. The source tracks the
synthesizer.
When lock is achieved at the start frequency, the synthesizer
starts to sweep. This changes the phase lock reference frequency, and causes
the source to track at a difference frequency 40 MHz below the synthesizer.
-
1

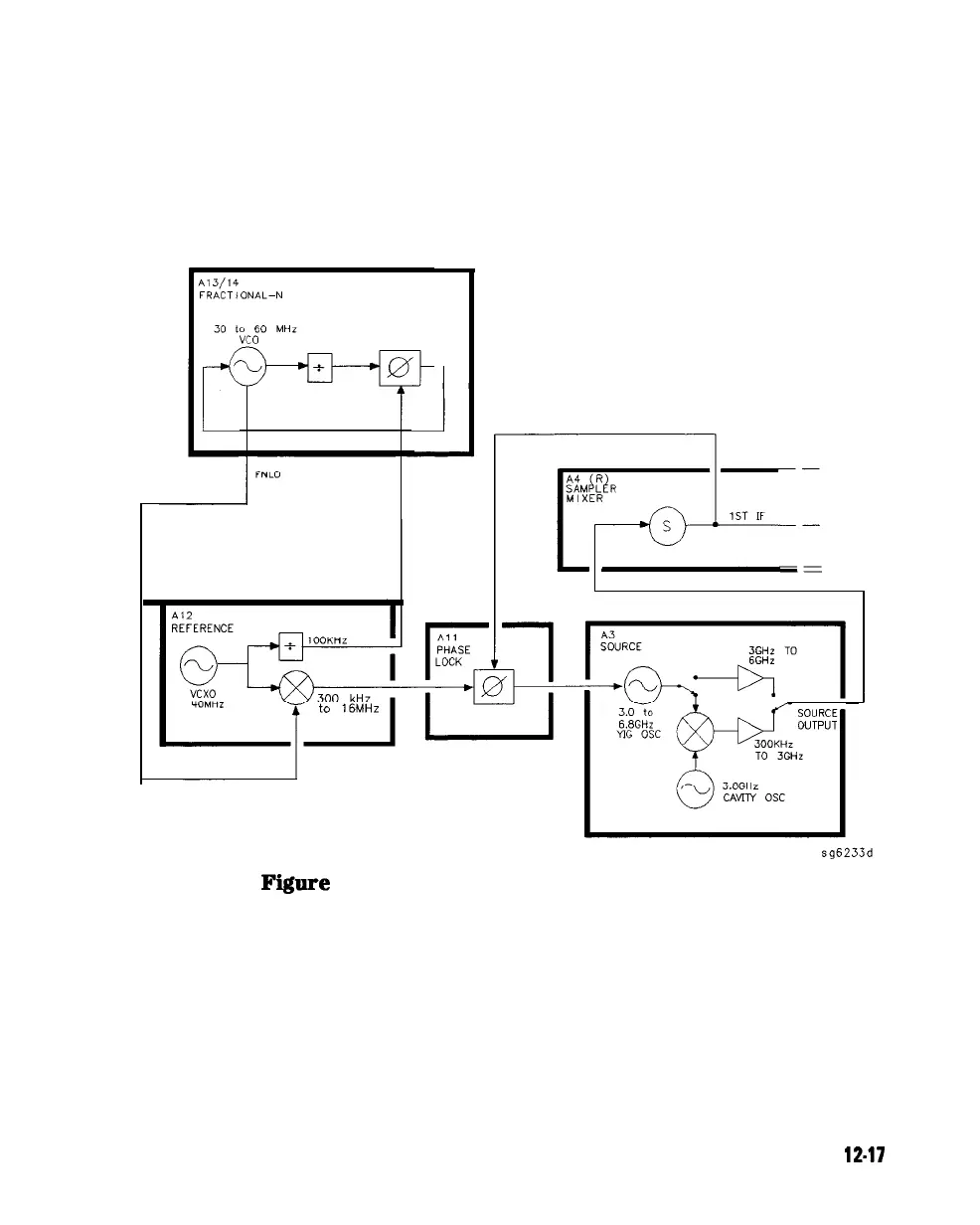

Pigure 12-4. Low Band Operation of the Source
Theory of Operation 12-17
