HP 8753E Service Manual

HP 8753E
NETWORK ANALYZER
“ERlFlCATlON DEVICE
sg65e

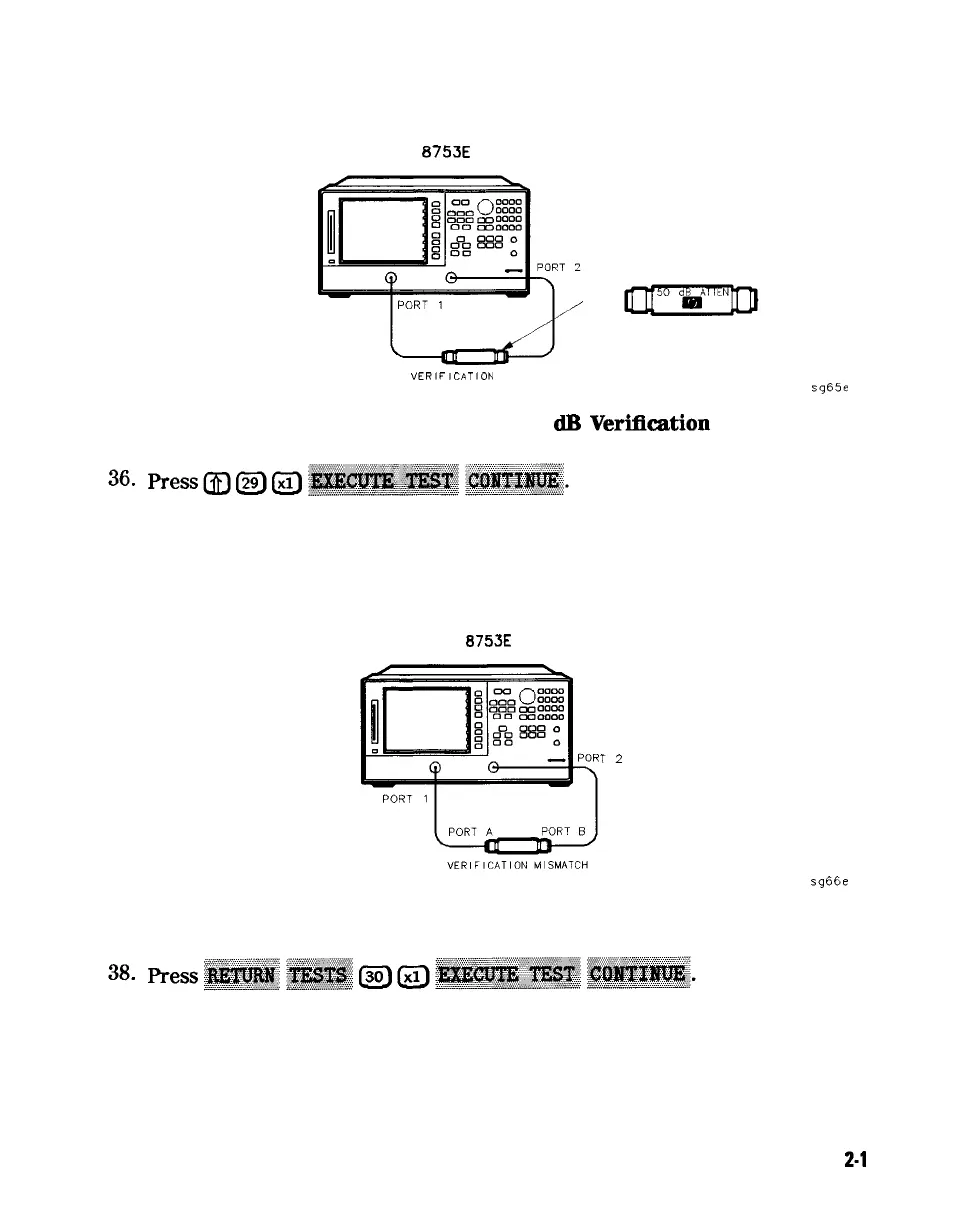

Figure 2-5. Connections for the 50 dB Verifkation Device
37. When all measurements are complete, replace the verification device with
the verification mismatch, as shown in Figure 2-6. Be sure that you connect
Port A of the verification mismatch to reference test port 1.
HP 8753E
NETWORK ANALYZER
T2
sg66e
Figure 2-6. Mismatch Device Verification Setup 1
39. When the analyzer finishes all the measurements, connect the mismatch
verification device, as shown in Figure 2-7. Notice that Port B is now
connected to reference test port 1.
Syetem Verification and
2-l 5
Performance Tests
