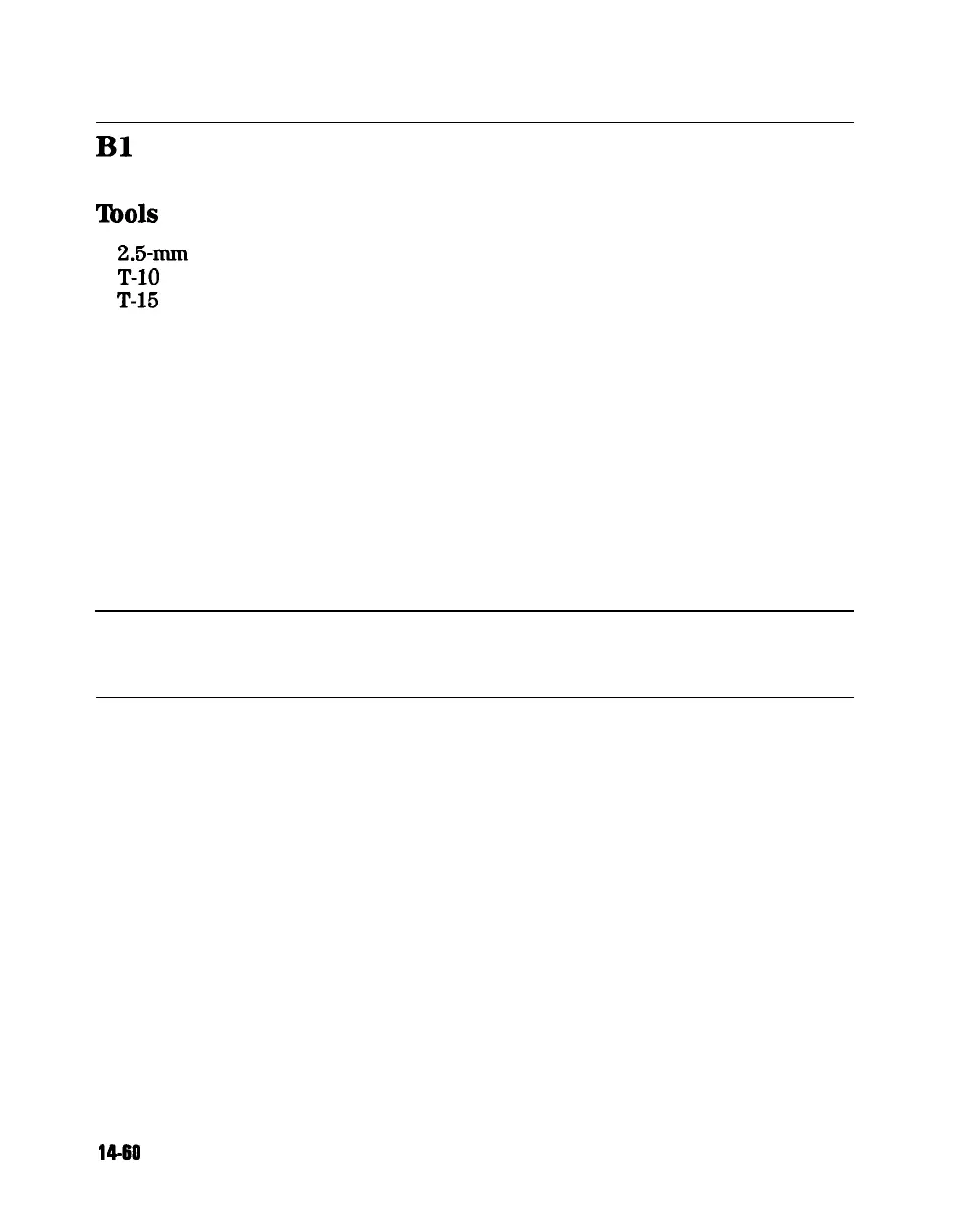

Bl
Fan Assembly
Tools
Required
n
2.5-mm
hex-key driver
n
T-10
TORX screwdriver
n
T-15
TORX screwdriver
n
ESD (electrostatic discharge) grounding wrist strap
Removal
1. Remove the rear panel (refer to “Rear Panel Assembly” in this chapter).
2. Remove the four screws (item 1) that secure the fan and fan cover to the
rear panel.
Replacement
1. Reverse the order of the removal procedure.
Note
The fan should be installed so that the direction of the air Bow
is away from the instrument. There is an arrow on the fan
chassis indicating the air flow direction.
14-60 Assembly Replacement and Post-Repair Procedures
