Chapter 6: Console Configuration
The Patch Input Display
240/ 526 2.0 Eclipse User Guide
Controlling Input Parameters

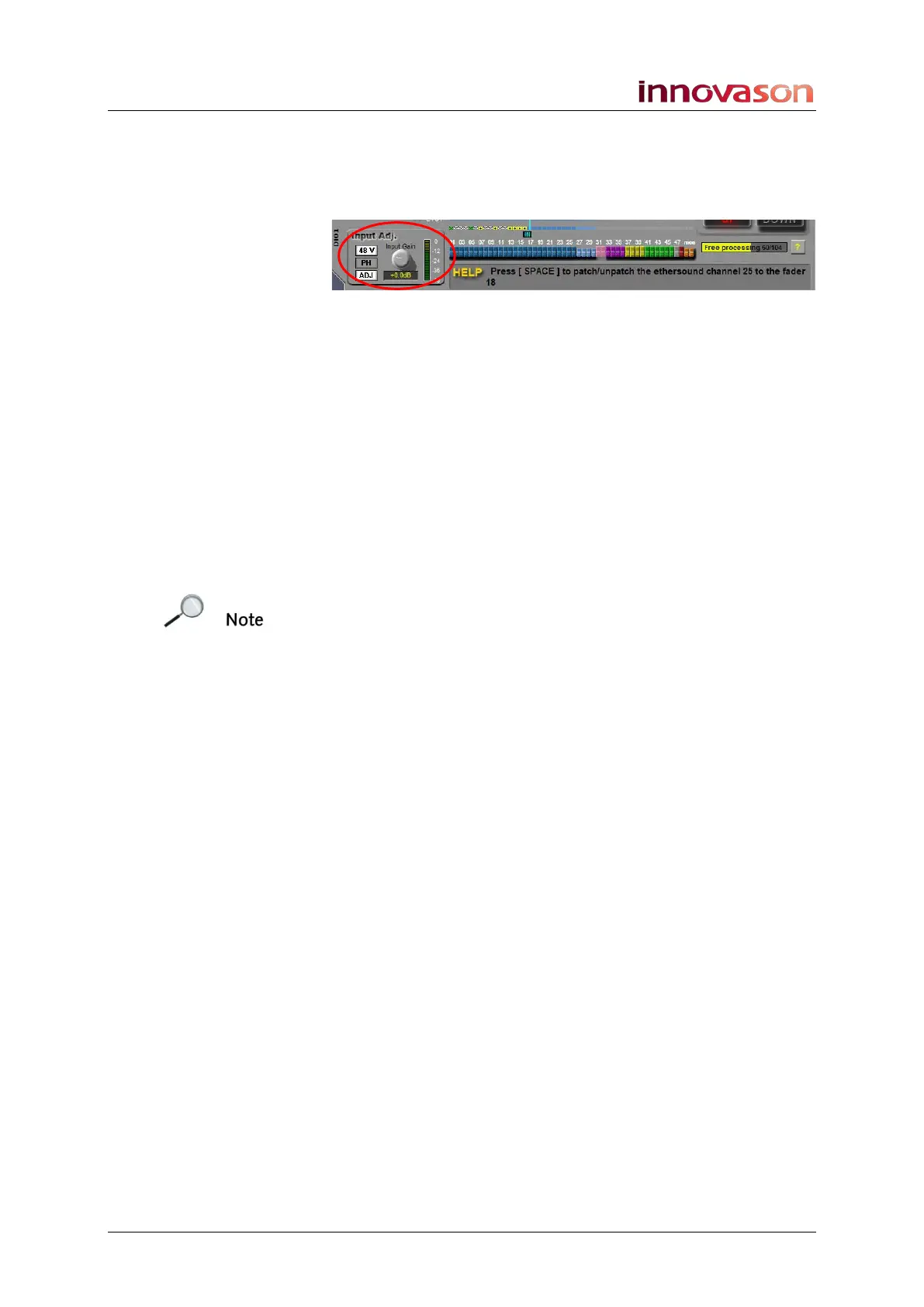

At the bottom of the PATCH INPUT display, the Input Adj
controls adjust and meter the selected source:
• Input Gain – left-click to increase or right-click to
decrease the gain. Or press [F5] or [F6].
o For analogue sources, you are adjusting the mic
preamp gain in 1.5dB steps.
o For digital sources, you are adjusting the digital
trim level in 0.1dB steps.
• 48V (SDI-8 cards only) – left-click to turn on/off phantom
power. Or press [F7].
• PH – left-click to turn on/off phase reverse.
• ADJ – left-click to turn on/off the automatic level adjust
function, see Page 136.
Note that you can only adjust parameters which are relevant to
the selected source.
