Chapter 3: Operating Principles
Fader Strips
60/ 526 2.0 Eclipse User Guide
2. Turn the pot on a Fader strip to adjust the parameter.

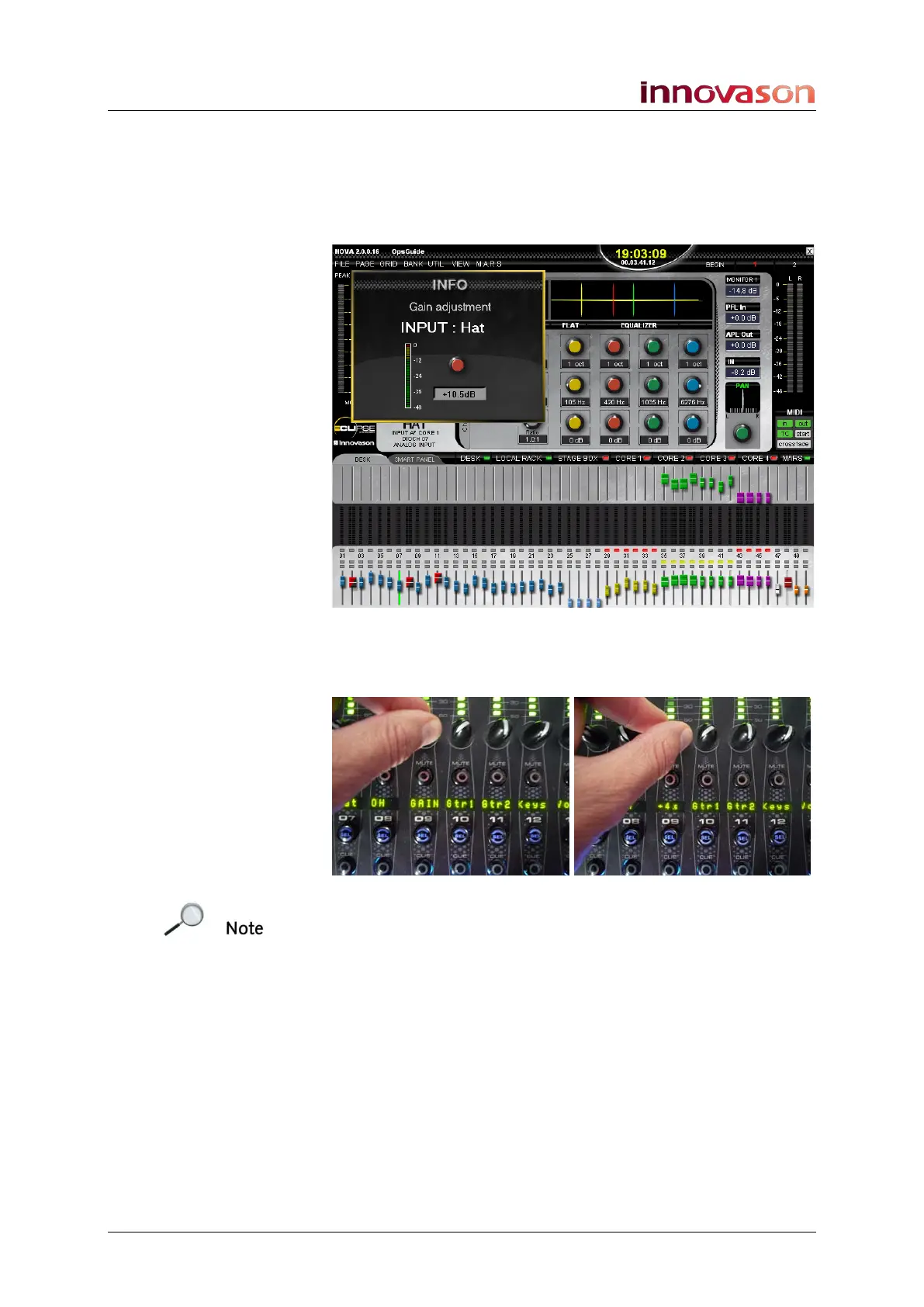

An INFO pop-up appears with feedback on the function – in our
example, we have adjusted the Gain for the input channel
labelled Hat:
You will also see the name of the parameter (e.g. GAIN)
followed by the value in the Fader strip Label display as you
turn the control:
Note that you can customise each of the three Pot. modes:
• Gain – can control either analogue Gain or digital Trim.
• Pan – can be dependent (panning to all stereo busses)
or independent (panning to the selected bus). The
control adjusts left/right pan on mono channels and
balance/width on stereo channels.
• User – can be assigned to any variable parameter (see
Page 120).
For details on Pot. configurations, please see Page 123.
On VCA Fader strips, the rotary control has no function.
On Smart VCA Fader strips, Gain adjusts the active slave
channel; this is the slave with a fully lit Label, see Page 156.
Pan controls the composite Pan, see Page 155.
