Intel387
TM
SX MATH COPROCESSOR
240225–12
NOTE:
*Typical part under worst-case conditions.

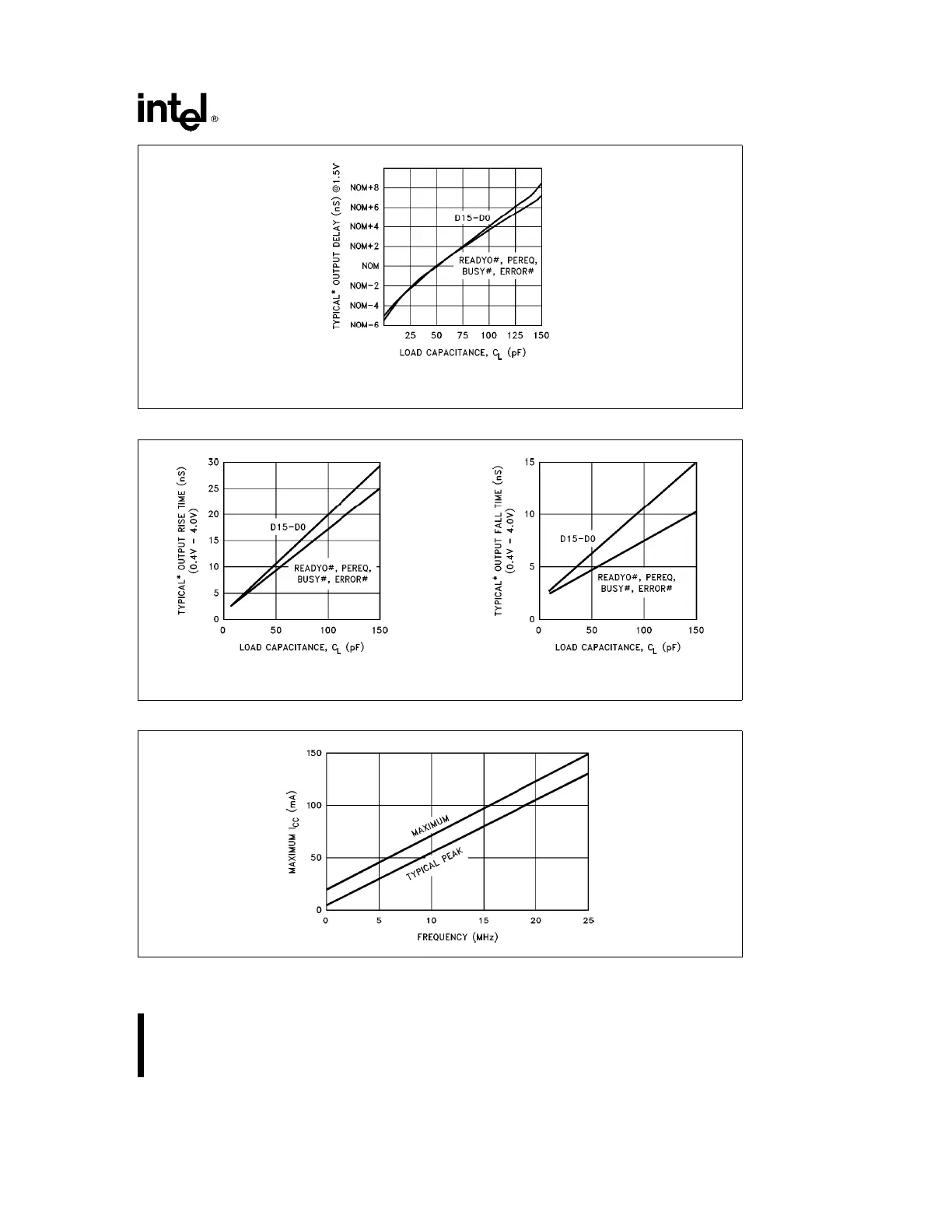

Figure 7-1a. Typical Output Valid Delay vs Load Capacitance at Max Operating Temperature
240225–13 240225–14
NOTE:
*Typical part under worst-case conditions.
Figure 7-1b. Typical Output Slew Time vs Load Capacitance at Max Operating Temperature
240225–15
Figure 7-1c. Maximum I
CC
vs Frequency
