XA User Guide 6-108 4/17/98
LSR Logical Shift Right
Syntax: LSR dest, count
Operation:
Description: If the count operand is greater than the variable specified by the destination
operand is logically shifted right by the number of bits specified by the count operand. The
MSBs of the result are filled with zeroes.The low-order bits are shifted out through the C (carry)
bit. If the count operand is 0, no shift is performed.The count operand is a positive value which
may be from 0 to 31. The data size may be 8, 16, or 32 bits. In the case of 32-bit shifts, the
destination operand must be the least significant half of a double word register. The count is not
affected by the operation.
Note:
- For Logical Shift Left, use ASL ignoring the N flag.
- If shift count (count in Rs) exceeds data size, the count value is truncated to 5 bits, else for
immediate shift count, shifting is continued until count is 0.
- a double word register is double-word aligned in the register file (R1:R0, R3:R2, R5:R4, or
R7:R6).
Size: Byte, Word, Double Word
Flags Updated: C, N, Z (N = 0 after an LSR unless count = 0, then it is unchanged)
LSR Rd, Rs (Rs = Byte-register)
Operation:
Bytes: 2
Clocks: For 8/16 bit shifts --> 4+1 for each 2 bits of shift
For 32 bit shifts --> 6+1 for each 2 bits of shift
Encoding:

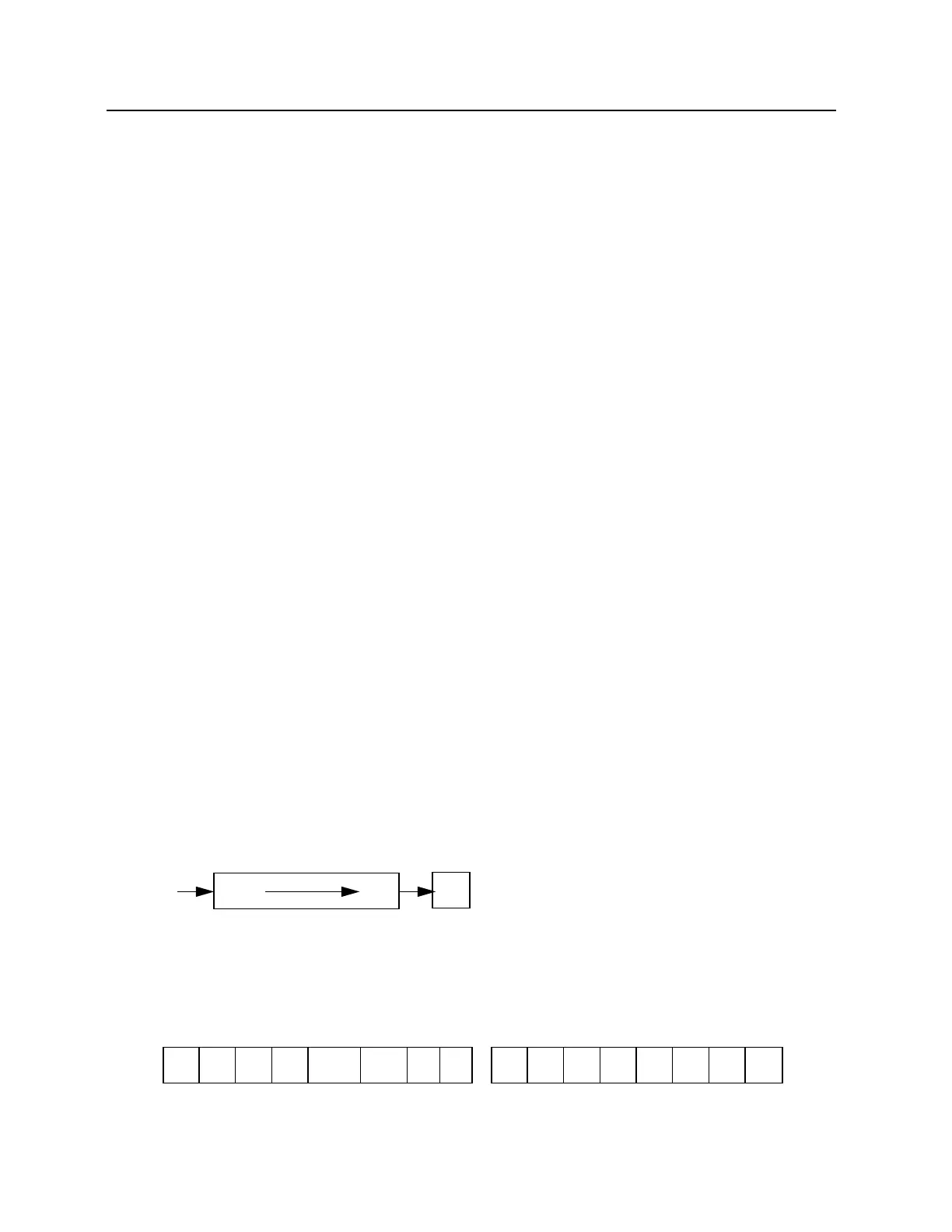

(C) <- (dest.0)
(dest.bit n) <- (dest.bit n+1)
count = count-1
Do While (count not equal to 0)
End While
(dest.msb) <- 0
CMSB0 LSB
(Rd)
d d d d s s s s
1 1 0 0 SZ1 SZ0 0 0
To Next Page
