Die Characteristics
DIE DIMENSIONS:
143 x 130 x 19 ±1mils
(3630 x 3310 x 525µm)
METALLIZATION:
Type: Si-Al-Cu
Thickness: Metal 1: 8k
Å ± 0.75kÅ
Metal 2: 12kÅ ± 1.0kÅ
GLASSIVATION:
Type: Nitrox
Thickness: 10k
Å ± 3.0kÅ

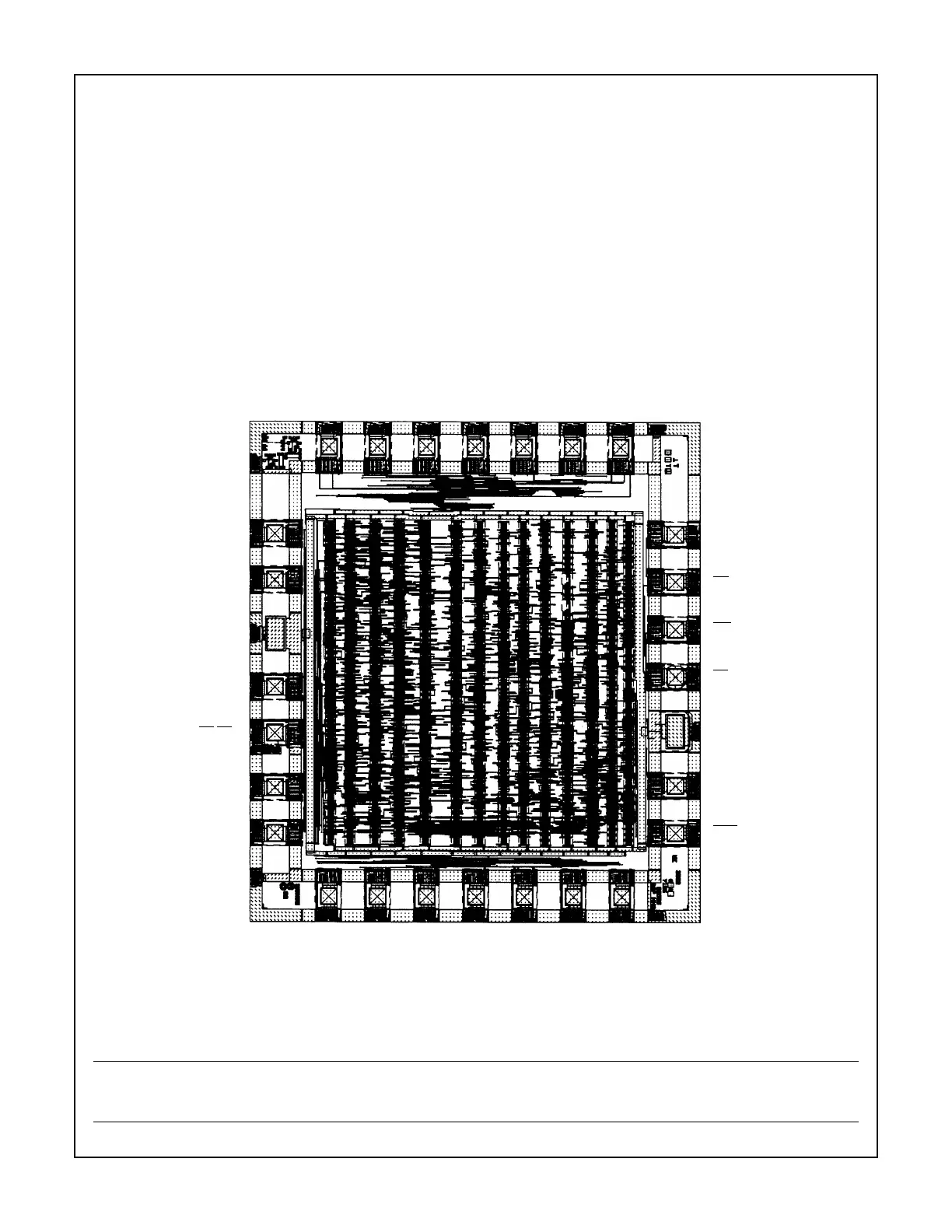

Metallization Mask Layout
82C59A
D7
RD
WR
CS
V
CC
INTA
CAS0
CAS1
GND
CAS2
SP/EN
INT
D0 D1 D2 D3 D4 D5
IR1 IR2 IR3 IR4 IR5 IR6
A0
D6
IR0
IR7
82C59A
