87
Chapter 4 How to Interpret the PPI Screen

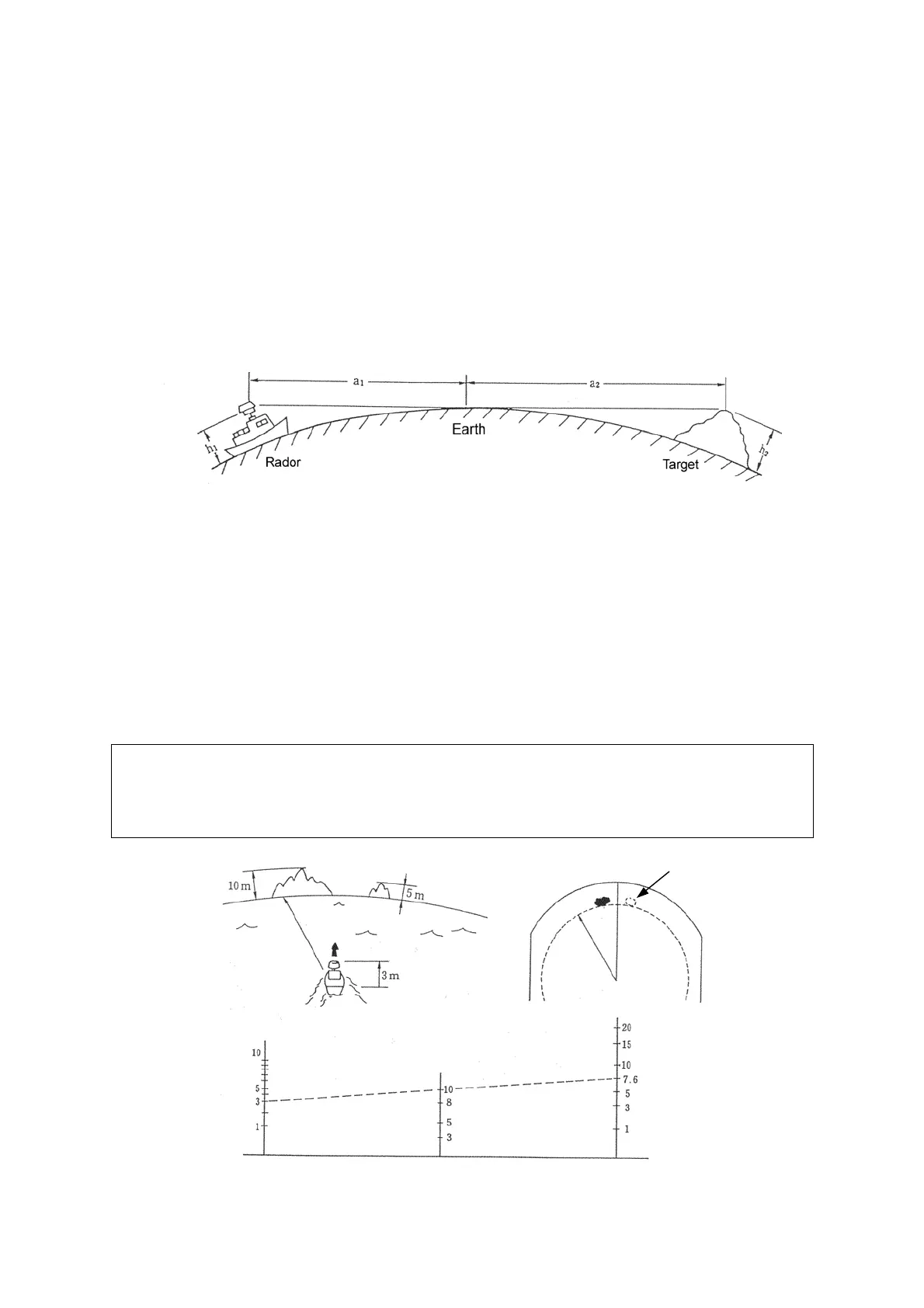

4.1 Height of and the Distance to the Target
The maximum distance to a target that can be observed with a radar depends not only on the
power of the radar's transmitter, beam width of the scanner unit, and the receiver's sensitivity but
also on height of a target, distance to a target and height of scanner unit line etc. This is because
the radio wave emitted by a radar runs straight, undergoing no influence by the curvature of the
earth surface.
[Distance and Target]
For example, when the scanner unit lies 3 meters above the sea level, the radar can detect and
display an island with a height of 10 meters at a distance 10 NM away from the scanner unit
position but cannot detect and display an island with a height of 5 meters at the same distance.
This is theoretically true but does not always hold, depending on weather conditions.
For a target located 10 NM away to be displayed on a radar, it theoretically needs to be 7.6
meters or higher. Any targets lower than 7.6 meters cannot be displayed on a radar.
●
●●
● The target may be unable to be observed when the height of a scanner unit or an
target is low.
a
1
=2.23√h
1
a
2
=2.23√h
2
a
1
+ a
2
=2.23 (√h
1
+ √h
2
)
a
1
, a
2
：Unit [Nautical miles]
h
1
, h
2
：Unit [Meters]
Island not displayed on the screen
10 NM
a
1
+a
2
(NM)
Distance
h
2
(meters)
Target height
h
1
(meters)
Scanner unit height
10 NM
