9.5.4 Rectifier
●
●●
● A rectifier can be used for both of the ship's voltage types, AC100/110/115V and
200/220/230V, however, the input pin connection modes must be changed as
shown in the diagram below.

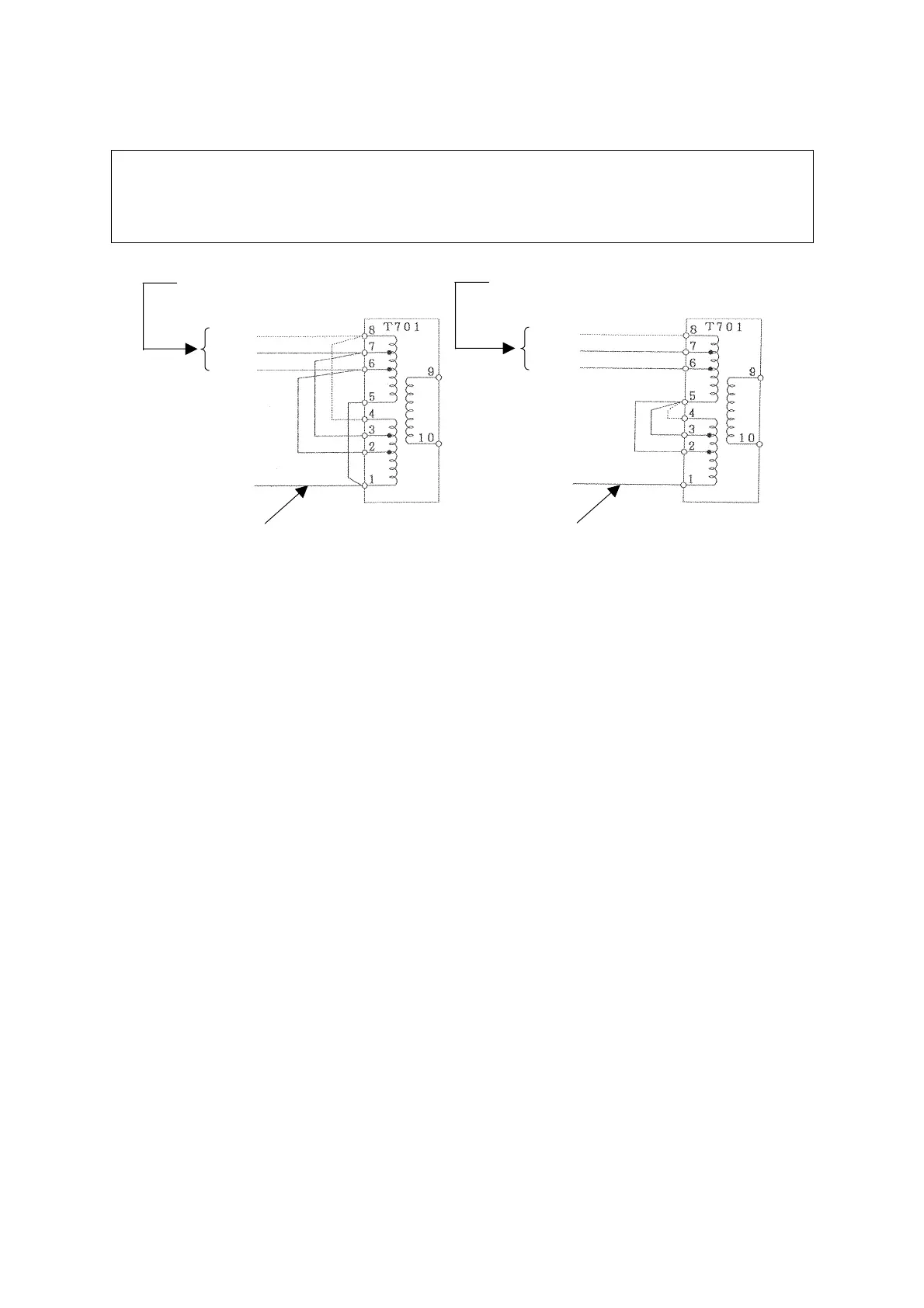

NBA-797 input pin connection change
Change the connection
according to the input voltage.
115V
110V
100V
Do not change this connection.
Change the connection
according to the input voltage.
230V
220V
200V
Do not change this connection.
Alternate current 100/110/115V
Alternate current 200/220/230V
To Next Page
