147
3.
Sw
itching RS232C/RS422 signal output
Switching signal output from RS232C to RS422 alternately
, switch jumper JP1 of power
terminal block CBD-1638.

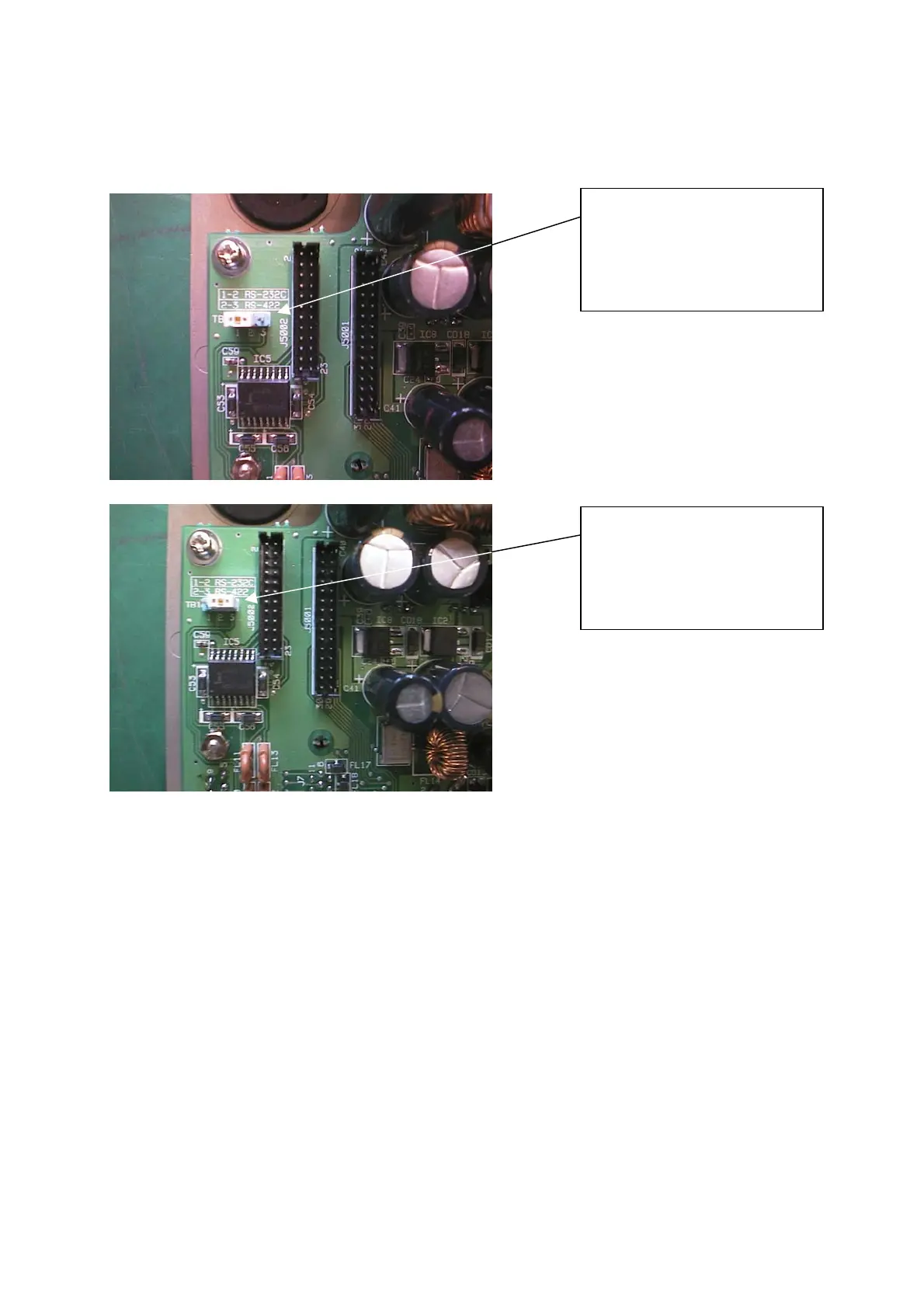

The TB1 jumper is set between 1 and 2 (RS232C) at factory delivery
.
RS232C signal output
Jumper set between 1 and 2
of TB1 as shown in the
photograph.
RS422 signal output
Jumper set between 2 and 3
of TB1 as shown in the
photograph.
173
175
