EBL BEARING TRUE
FROATING EBL OFF
OFF OFF
ON NM
VRM2 UNITS NM
WAYPOINT OFF
POSITION LL
LL-TD CONV>
DISP OPTIONS

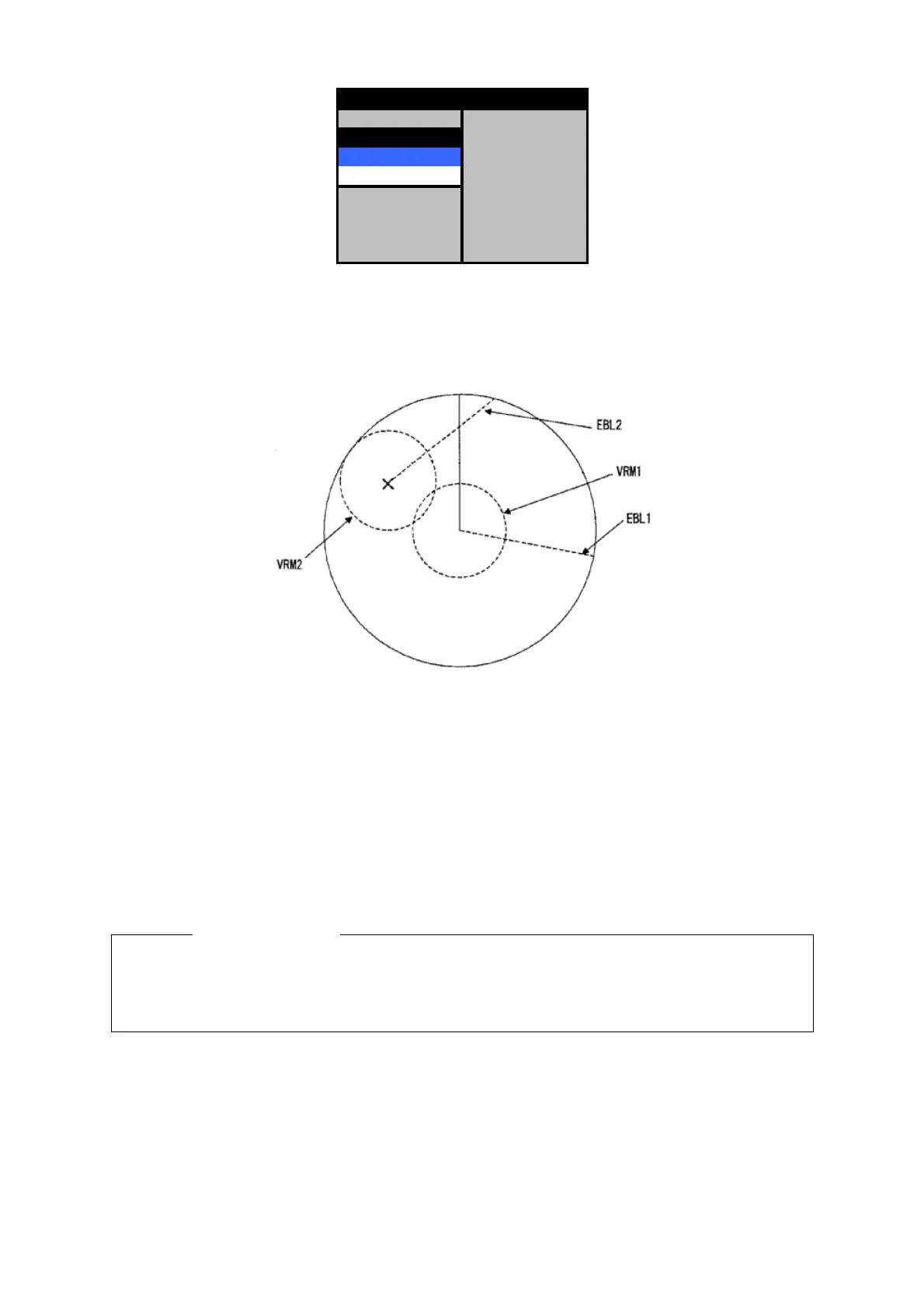

As shown in the figure below, EBL2 moves to the cursor position. If VRM2 is displayed at the
same time, the center of VRM2 also moves to the fulcrum of EBL2.
With EBL2 being placed in floating EBL mode
7. Setting EBL display
EBL can select true bearing or relative bearing.
True bearing means that the EBL bearing viewed from the own ship indicates the absolute
bearing on the earth.
Relative bearing means that the EBL bearing viewed from the own ship indicates the relative
bearing between the own ship and EBL.
Caution
●
●●
● True bearing and relative bearing are switched for both EBL1 and EBL2.
Thus, they cannot be set for EBL1 and EBL2 separately.
If true bearing presentation is selected, the value of EBL is displayed following by "T." If
relative bearing presentation is selected, the value of EBL is displayed following by "R."
