JMA-5104
JRC JMA-5104 User Manual
4
of 1
of 1 rating
242 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

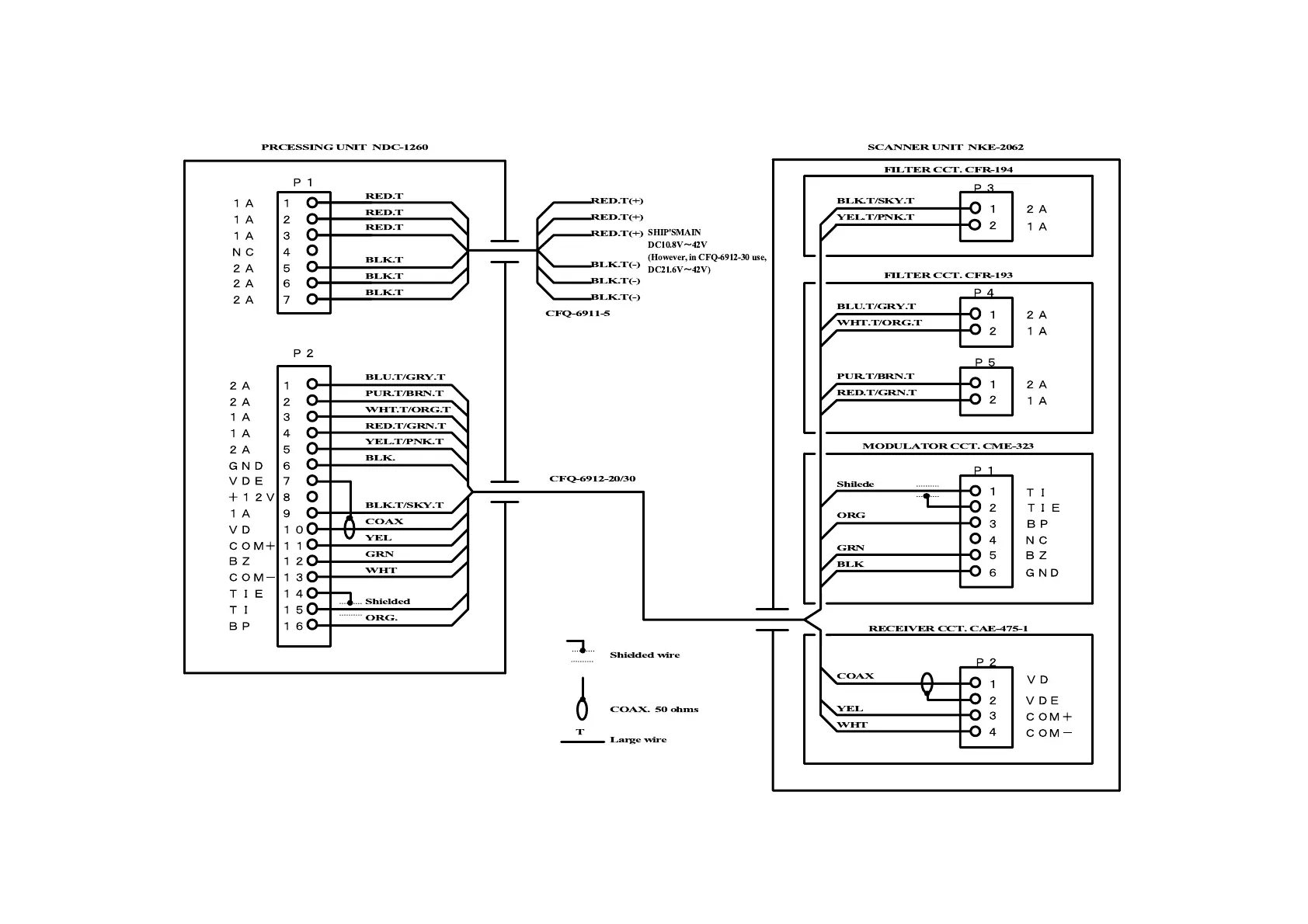

[Fig. 102
INTERCONNECTION DIAGRAM OF JMA-5106]
BLU.T/GRY.T
PUR.T/BRN.T
WHT.T/ORG.T
RED.T/GRN.T
YEL.T/PNK.T
BLK.
BLK.T/SKY.T
COAX
YEL
GRN
WHT
Shielded
ORG.
PRCESSING
UNIT
NDC-1260
RED.T
RED.T
RED.T
BLK.T
BLK.T
BLK.T
CFQ-6912-20/30
RECEIVER
CCT.
CAE-475-1
FILTER
CCT.
CFR-194
SCANNER
UNIT
NKE-2062
Shielded
wire
COAX.
50
ohms
Large
wire
T
MODULATOR
CCT.
CME-323
BLK.T/SKY.T
YEL.T/PNK.T
BLU.T/GRY.T
WHT.T/ORG.T
PUR.T/BRN.T
RED.T/GRN.T
Shilede
ORG
GRN
BLK
COAX
YEL
WHT
FILTER
CCT.
CFR-193
RED.T(+)
RED.T(+)
RED.T(+)
BLK.T(-)
BLK.T(-)
BLK.T(-)
CFQ-6911-5
SHIP'SMAIN
DC10.8V
42V
(However,
in
CFQ-6912-30
use,
DC21.6V
42V)
226
228
