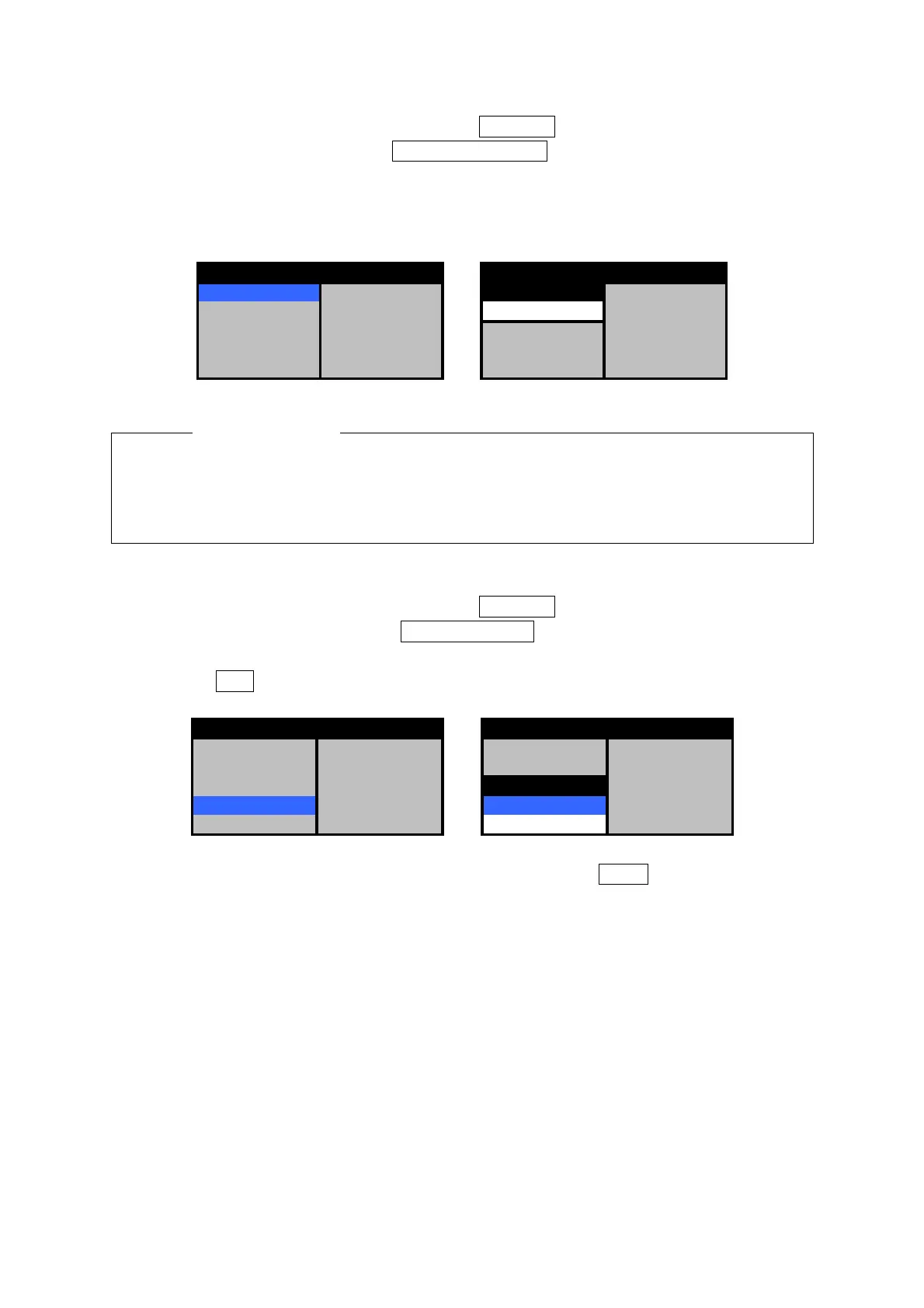

2. Setting a trail interval [TRAILS]
(a) Hold down the [TRAILS] key to display the TRAILS menu.
(b) Operate [JOG DIAL] to select TRAIL INTERVAL , and then press the [JOG DIAL] or
[ACQ/ENT] key.
(c) The menu below is displayed. Turn [JOG DIAL] to set a value 30 to 59 seconds or 1 to 99
minutes, and then press the [JOG DIAL] or [ACQ/ENT] key to determine the setting.
TRAIL INTERVAL 6M TRAIL INTERVAL 6M
TRAIL REF LVL 8 6NM 8
TRAIL SUPRESS 0.0NM TRAIL SUPRESS 0.0NM
TRAIL CLEAR OFF TRAIL CLEAR OFF
RANGE TRAIL CLEAR RANGE TRAIL CLEAR
TRAILS TRAILS
Caution
●
●●
● Because wake time may err by the rotation speed of scanner unit or the setting
timing, surely use this as a standard.
3. Clearing stored trail data [TRAILS]
(a) Hold down the [TRAILS] key to display the TRAILS menu.
(b) Operate [JOG DIAL] to select TRAIL CLEAR , and then press the [JOG DIAL] or
[ACQ/ENT] key.
(c) Select ON , and then press the [JOG DIAL] or [ACQ/ENT] key to determine the selection.
TRAIL INTERVAL 6M TRAIL INTERVAL 6M
TRAIL REF LVL 8 TRAIL REF LVL 8
TRAIL SUPRESS 0.0NM TRAIL CLEAR 0.0NM
TRAIL CLEAR OFF OFF OFF
RANGE TRAIL CLEAR ON CLEAR
TRAILS TRAILS
(d) The ON selected above is automatically changed back to OFF when the stored trail
data has been cleared.
4. Setting a trail reference level (trail threshold) [TRAILS]
A trail reference level is used to determine whether to store trail data depending on the
strength of targets.
A level 0 to 15 can be set as a threshold.
When level 1 is set, the data of all the targets displayed on the PPI screen is stored/displayed.
As a higher level is set, the trail data of only stronger targets is stored/displayed.
Level 8 is usually set.
If sea clutters are strong and they are also stored/displayed, set a level higher than 8.
Conversely, if the trail data of weak targets is difficult to store/display, set a level lower than 8.
Take the following steps to set a trail reference level (trail threshold):
Take the following steps to set a trail reference level (trail threshold):Take the following steps to set a trail reference level (trail threshold):
Take the following steps to set a trail reference level (trail threshold):
