9.3.10 Connecting a GPS compass (JLR-10)
A MARPA unit, which is an optional unit, can be used by connecting GPS compass JLR-10 of JRC.
1. Using a dedicated cable
JLR-10 can be connected easily by using the CFQ-6934 dedicated cable of JRC. This cable
enables not only receiving of azimuth information from JLR-10 but also receiving of longitude
and latitude information as NMEA data.

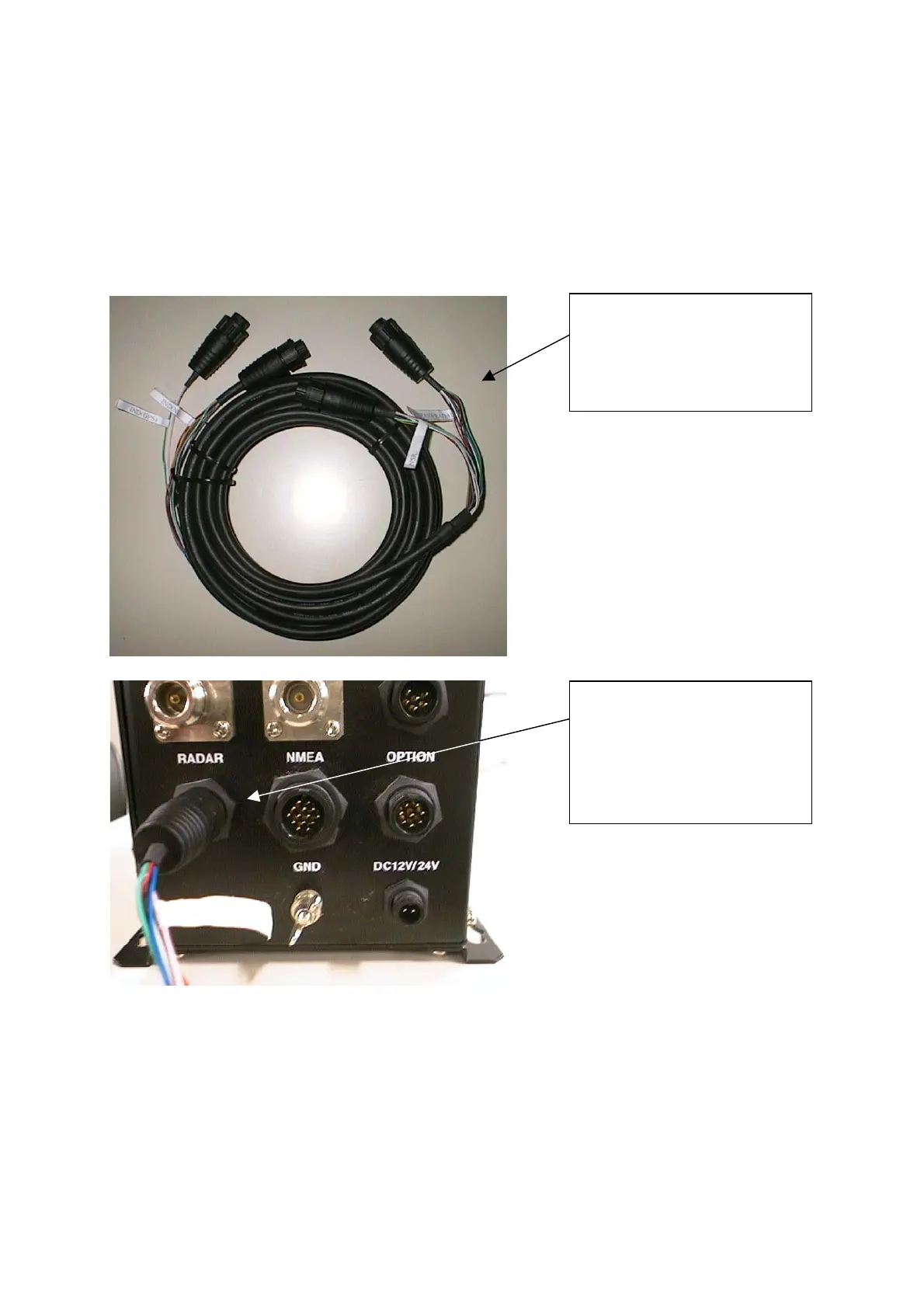

Photograph 1
JLR-10/NSK unit dedicate
connection cable :
CFQ-6934
Photograph 2
Insert the 8-pin connector o
CFQ-6934 with COMPAS
(RADAR) label attached to the
"RADAR" connector of JLR-10.
