9.3.5 Installing and display unit
Display unit NWZ-146 is connected with two cables.

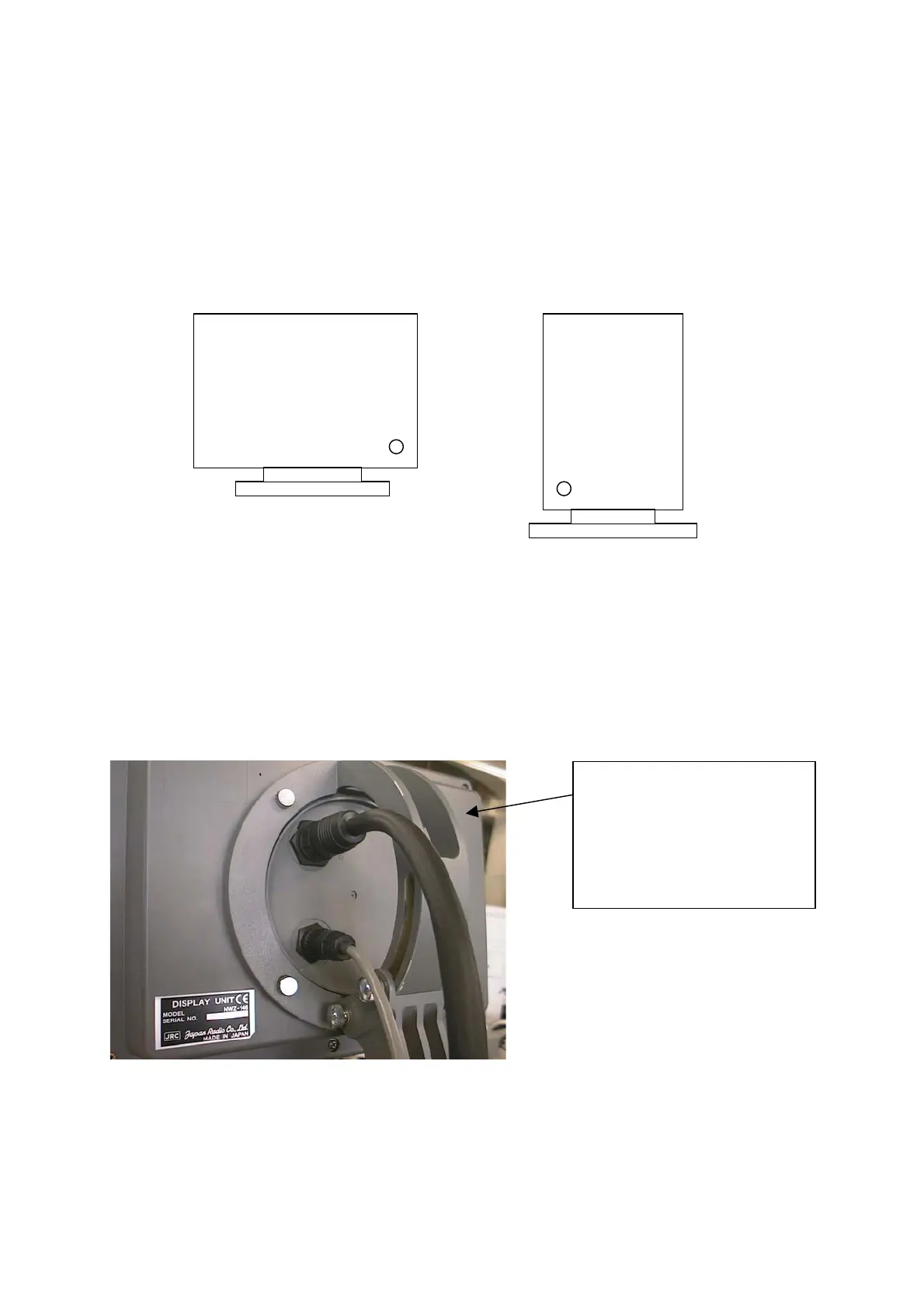

1. Setting vertically or horizontally
A display unit can be installed vertically or horizontally.
When changing the orientation of a display unit from vertically to horizontally or vice versa,
remove the four small screws from the rear of the display unit and install it with the required
orientation as shown below.
Horizontal installation Vertical installation
(o: Brightness adjustment knob)
2. Connecting cables
Connect two cables from the processing unit.
One cable is used as a video cable and the other is used as a power cable. As shown in the
photograph below, insert the two cables at the rear of the display unit, turn the plugs until
they stop, and check that the cables do not come off even if they are pulled.
Connection on the display
unit side :
Make sure that the cables do
not come off even if they are
pulled.
