General Power Meter Functions 2
Keysight N1911A/1912A User’s Guide 113

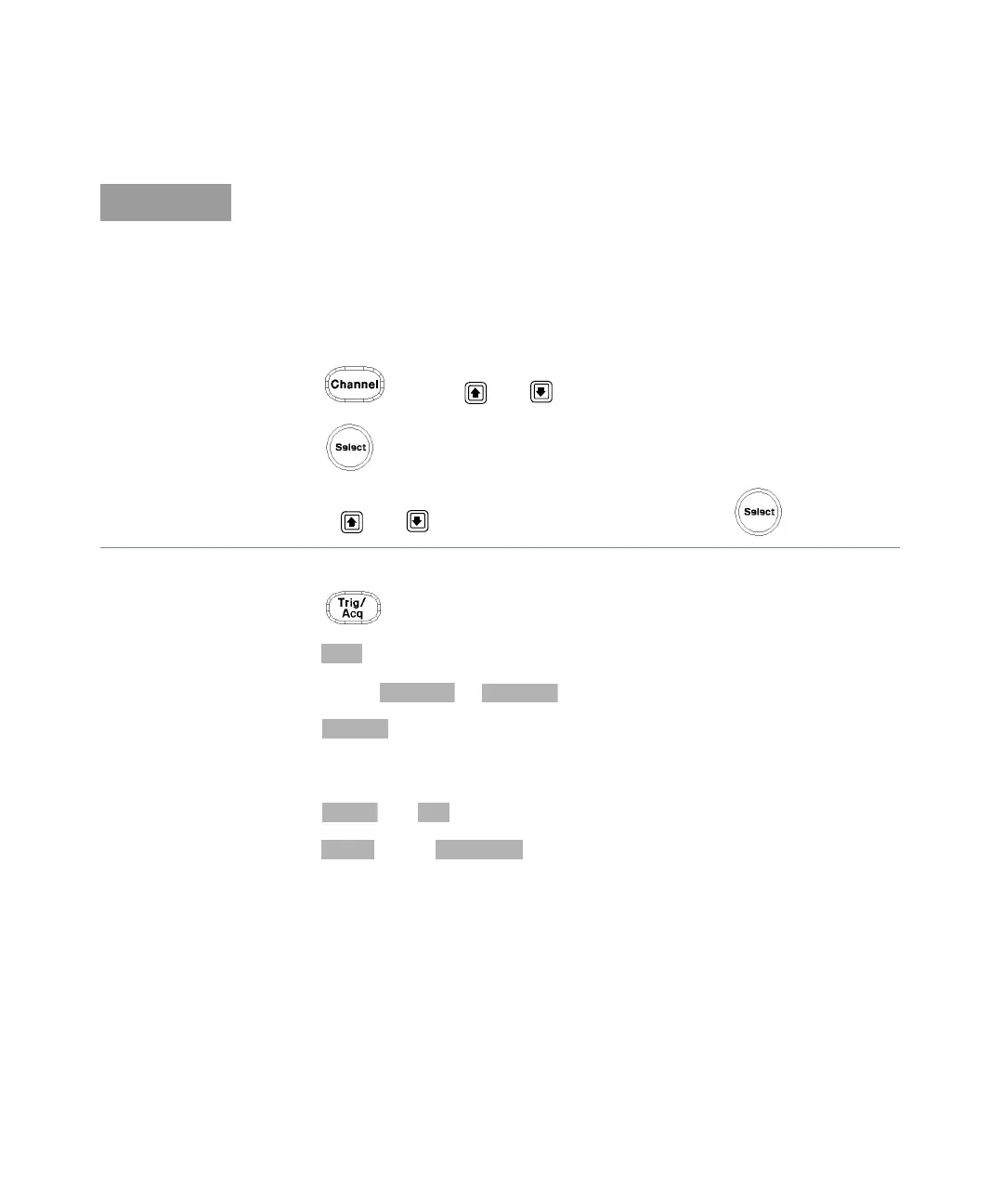

4 Press . The Trigger menu is displayed.
5 Press softkey to configure a trigger.
6 Select either or .
7 Press to configure the remaining trigger parameters. The trigger
Settings menu consists of two pages. Figure 2-46 shows page 1 and
Figure 2-47 shows page 2.
8 Press and will be automatically enabled.
9 Press , select to allow a TTL level high to be produced at the
rear panel TRIG OUT BNC port upon the meter completed a measurement.
Refer to note below for details.
When E-Series E9320 or P-Series N1920 sensor is connected, the default sensor
mode is Normal. User can use this Normal mode to perform power or frequency
sweep, or change the mode to AVG only to perform power or frequency sweep.
Refer Table 2-5 on the differences in measurement functions supported under
these two modes.
To change the sensor mode from the default Normal mode to AVG only mode,
follow the instructions below:
– Press . Use the and keys to highlight the Sensor Mode field.
– Press to display the Sensor Mode pop-up.
– Use the and keys to highlight the AVG and press .
