174 Keysight N9038A MXE Service Guide
RF Preselector Section
RF Preselector Section Purpose
— Band 12 - 28 MHz to 32 MHz
— Through Path - 2 MHz to 32 MHz
All of the filter bands in the high band filter section use fixed bandpass
filters.
The through path has no filtering and is only used during the instrument
alignment and calibration.
High Band Amplifier
There is also a limiter and amplifier on the high band filter section output.
The amplifier is used to compensate for the losses contributed by the
switches, the filter insertion loss, and general signal path loss.
A24 Conducted Filter Assembly Connections
The connections to and from the A24 Conducted Filter assembly are as
listed in Table 5-3 and as illustrated in Figure 5-3 below.

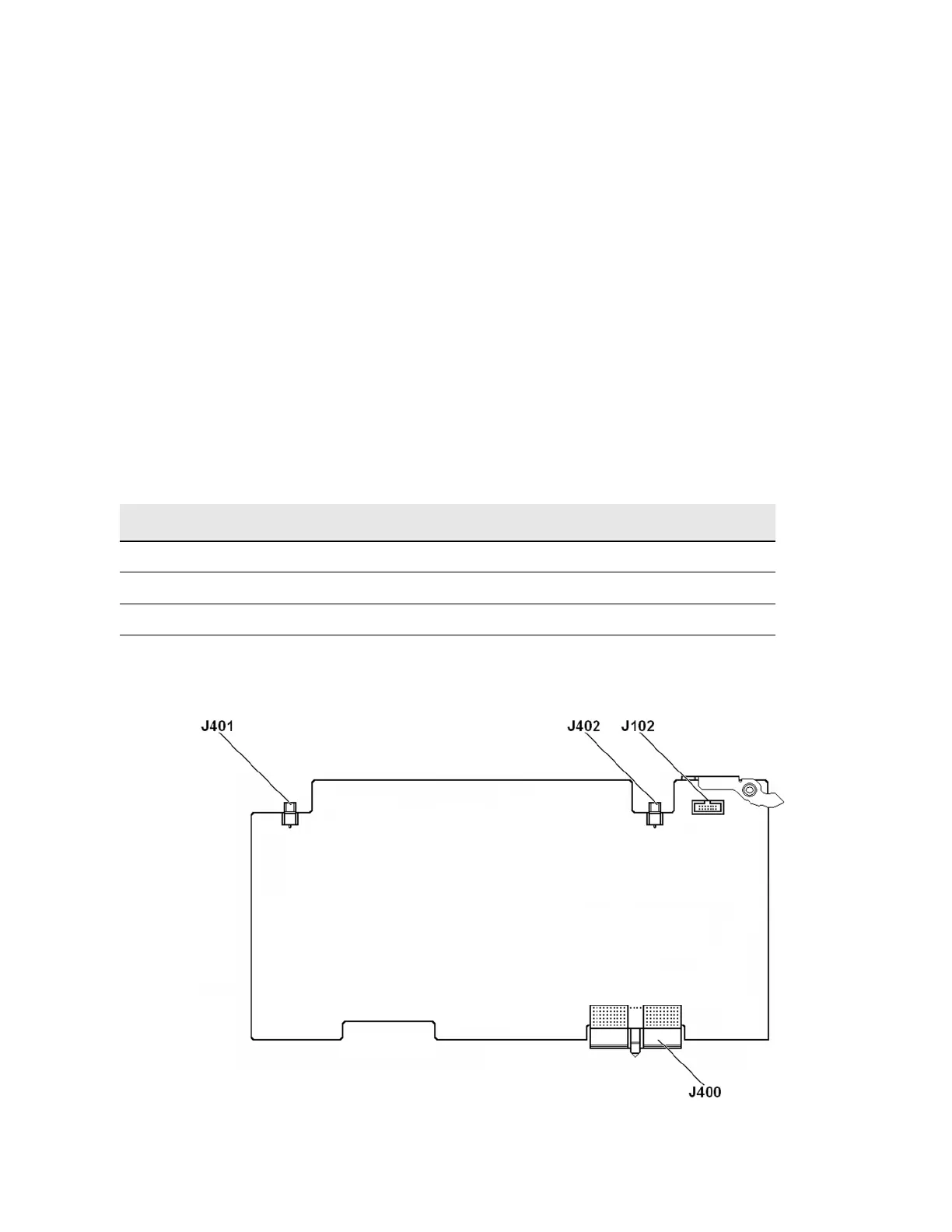

Figure 5-3 A24 Conducted Filter Assembly Connections
Table 5-3 A24 Conducted Filter Assembly Signals
Port Description To/From Cable
J102 JTAG Programming n/a n/a
J400 Bias & Control A8 Motherboard J61 n/a
J401 RF Output A21 RF Preselector Input Assembly J200 W33
J402 RF Input A21 RF Preselector Input Assembly J103 W32
