236 Keysight N9038A MXE Service Guide
RF Downconverter Section
RF Downconverter Section Troubleshooting

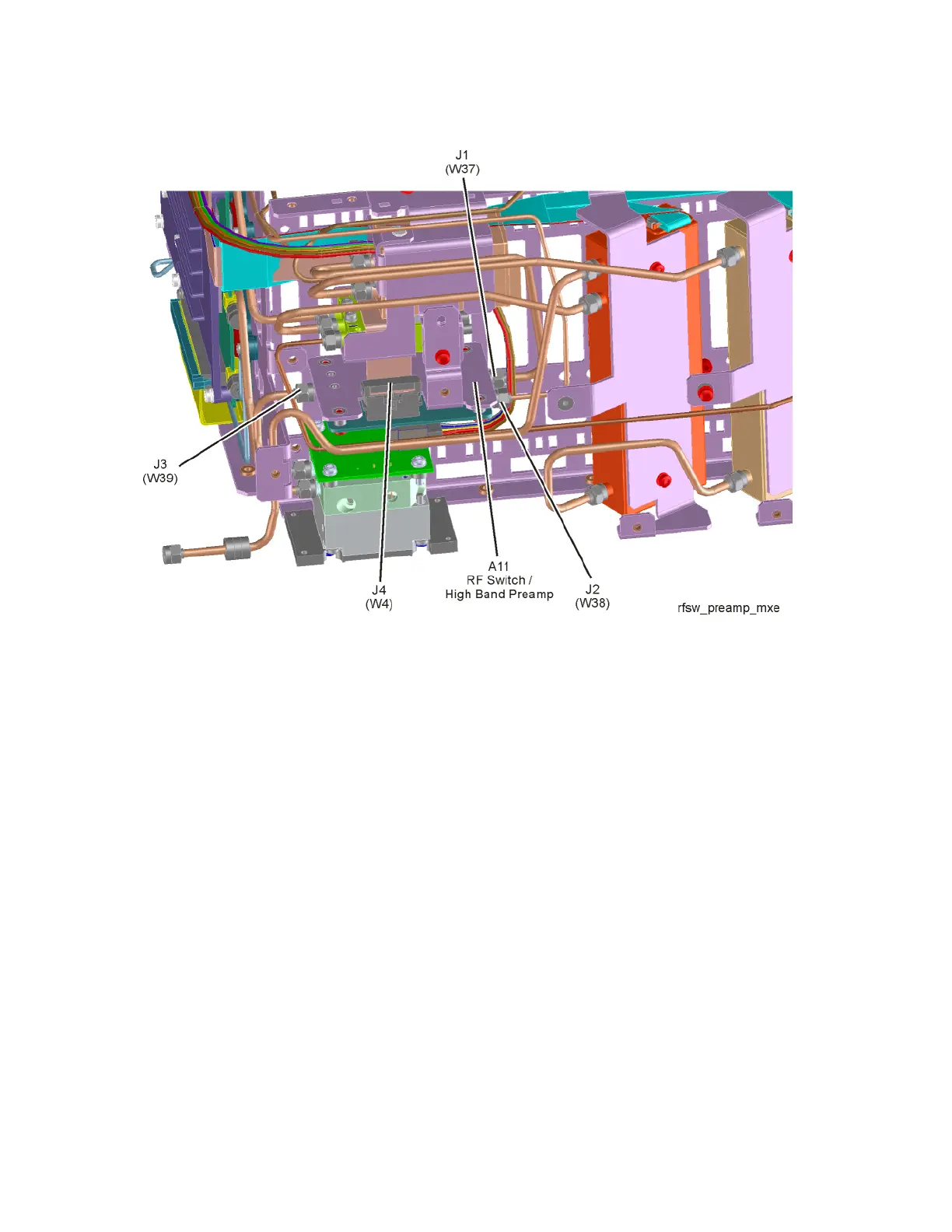

Figure 6-7 A11 RF Switch / High Band Preamp Connections - Option 503, 508, & 526
