42 Keysight N9038A MXE Service Guide
Boot Up and Initialization
MXE Instrument Boot Up Process
11.If any of the initial alignments fail, check the alignment history for
troubleshooting hints.
The instrument alignment history can be found at:
E:\AlignDataStorage\AlignmentHistory.txt
Look for any failed status for the various internal hardware items listed in
this file.
Once the MXE application is fully initialized and aligned, the display should
resemble Figure 2-2 when delivered from the factory. This completes the boot
process from initial AC power to the spectrum analyzer application.
IMPORTANT If the power up state has been changed from the factory power on state by
the user, the analyzer will boot to that state.

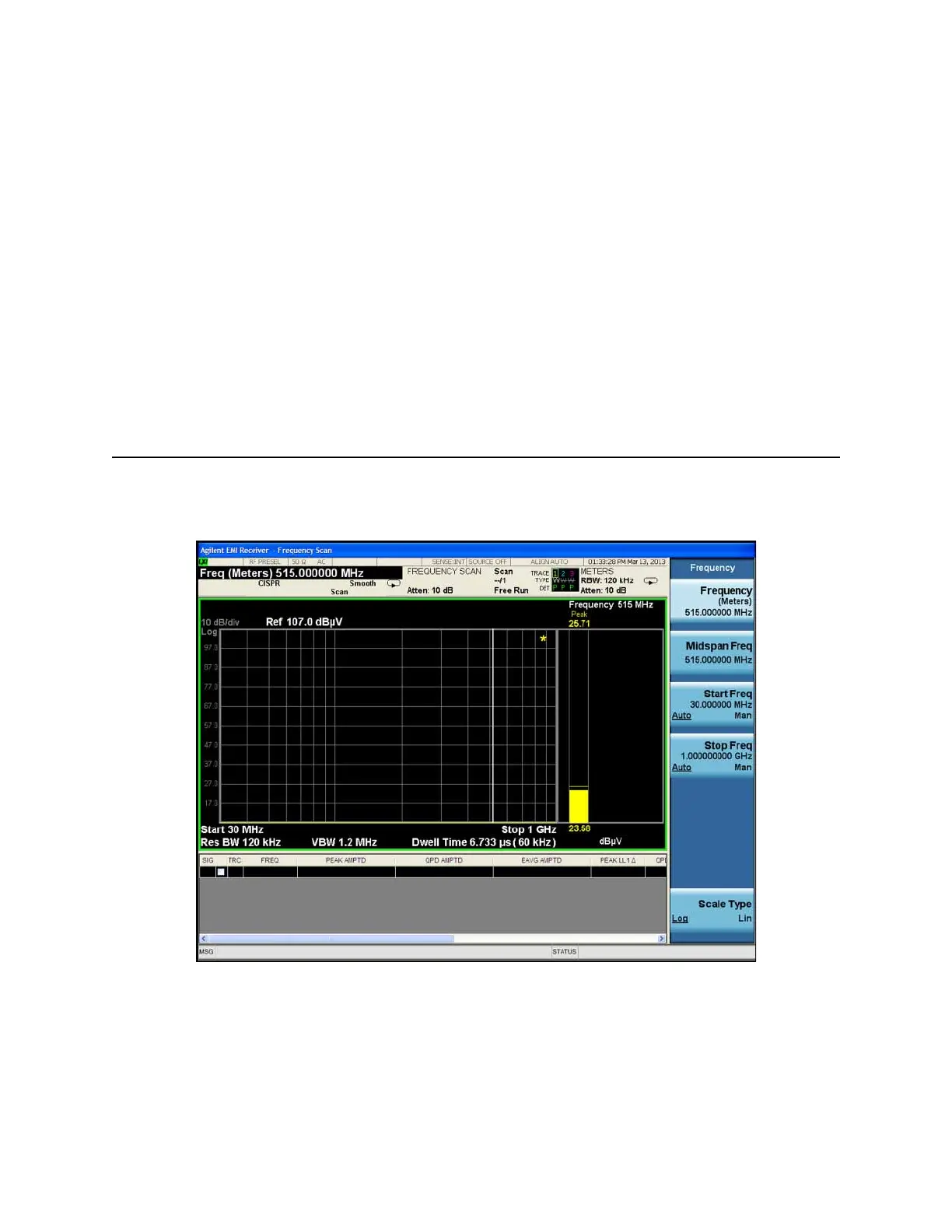

Figure 2-2 Typical Instrument State at Power-up
