Service and Diagnostics Menus
Service Key Descriptions
When any of the Characterize Preselector routines are initiated a
confirmation window will be seen, as shown in Figure 16-15. Once this has
been accepted do not disturb its completion by any means or the system
could become corrupted
It is also recommended that the current calibration database be backed up
before any of the Characterize Preselector routines are run, just in case an
interruption does occur and the database needs to be restored. For
information on how to back up the current database see Chapter 19,
“Post-Repair Procedures”.

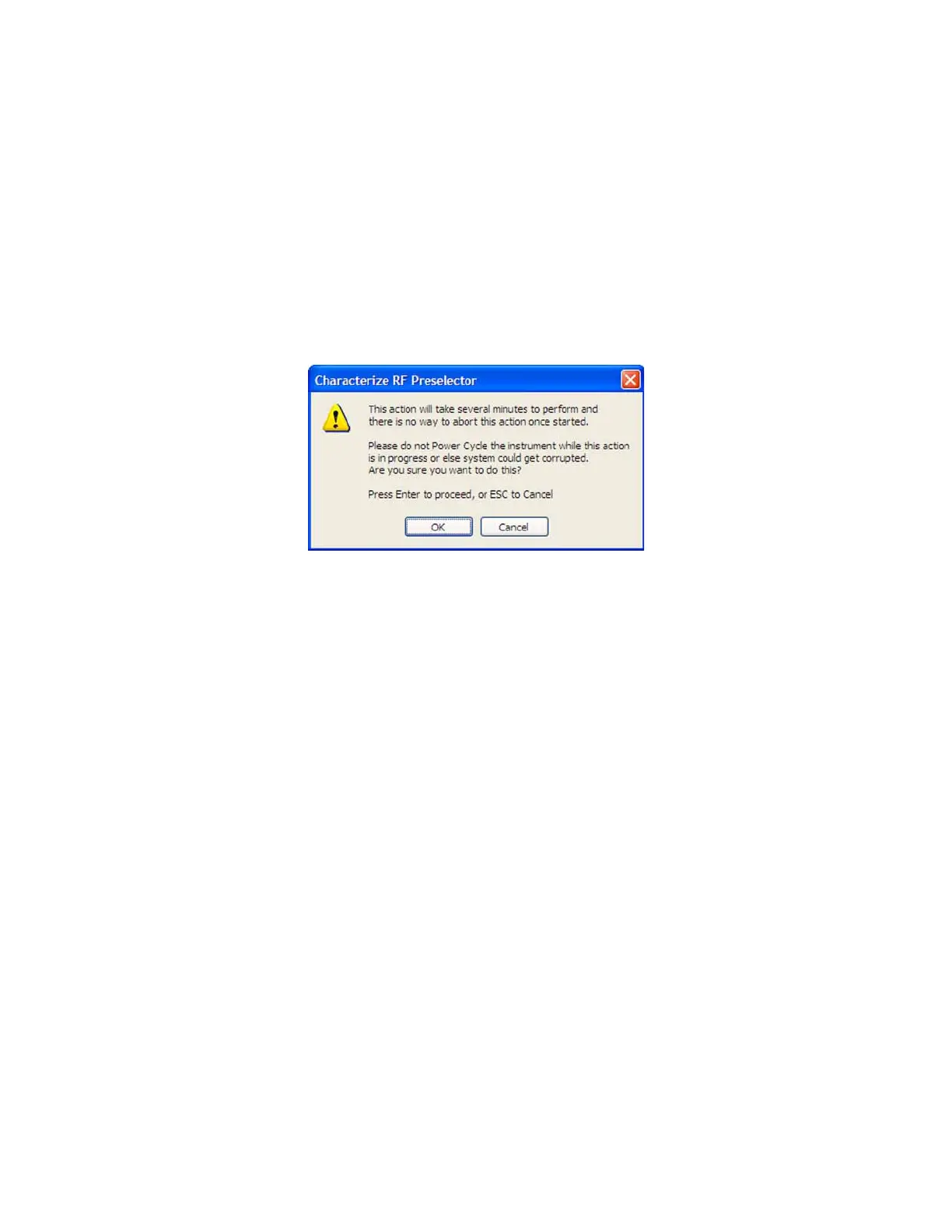

Figure 16-15 Characterize Preselector Confirmation
The characterization for Bands 0 through 4 will take approximately five
minutes each to complete, while the characterization for Band 5 will take
around ten minutes. Running the characterization for All Bands will take
approximately 35 minutes.
All Bands
Will align all 6 adjustable radiated filter bands
Band 0
Will align the 30 MHz to 70 MHz radiated filter band
Band 1
Will align the 70 MHz to 150 MHz radiated filter band
Band 2
Will align the 150 MHz to 300 MHz radiated filter band
Band 3
Will align the 300 MHz to 600 MHz radiated filter band
Band 4
Will align the 600 MHz to 1 GHz radiated filter band
Band 5
Will align the 1 GHz to 2 GHz radiated filter band
