Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 507
Replaceable Parts
Hardware

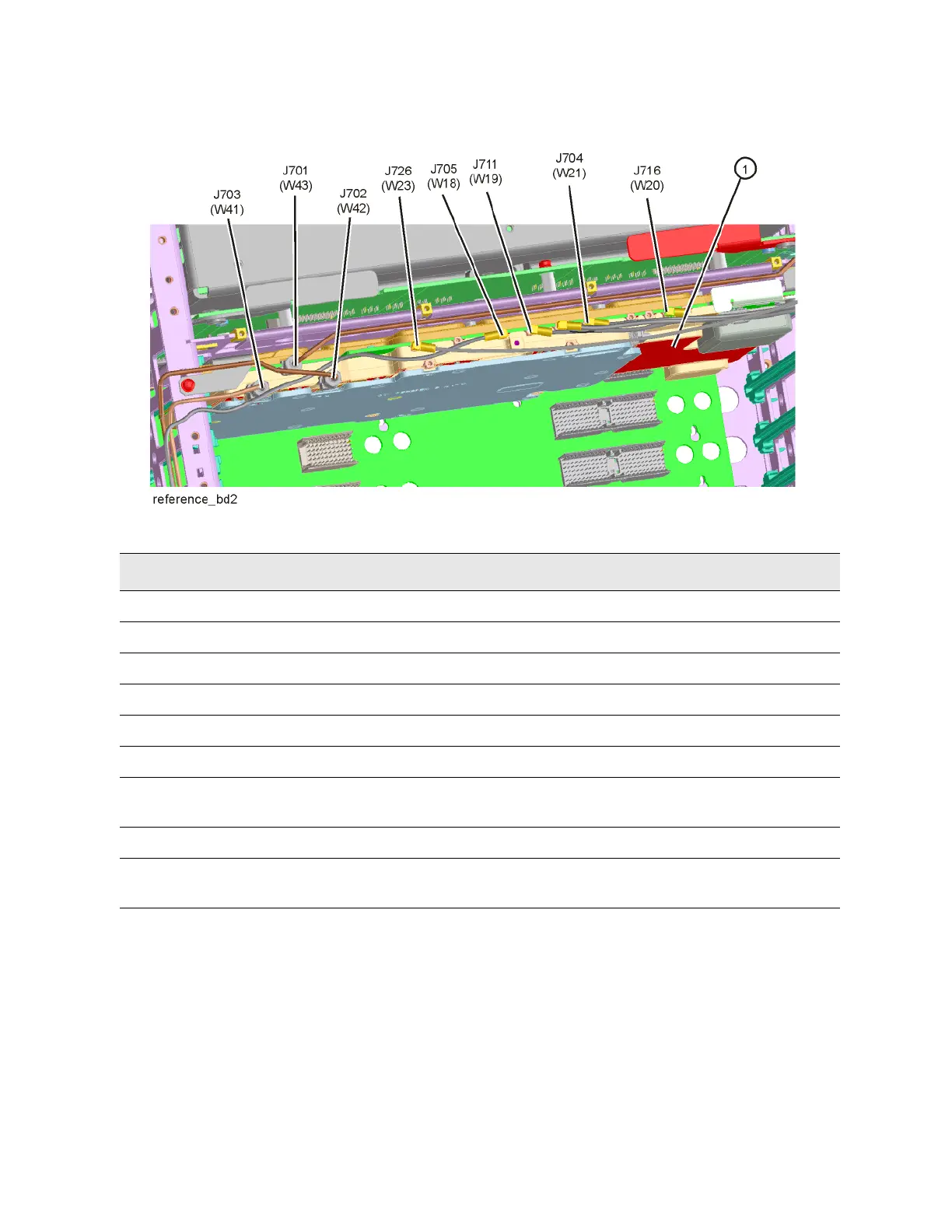

Figure 17-11 Reference Board Cables
Item Description Part Number
1 A16 Reference Assembly N9020-60188
W18 Cable, Coaxial, Reference Assy (A16) J705 to Front End Assy (A13) J6 8121-1940
W19 Cable, Coaxial, Reference Assy (A16) J711 to Analog IF (A2) J300 8121-1861
W20 Cable, Coaxial, Reference Assy (A16) J716 to Digital IF (A3) J14 8121-1861
W21 Cable, Coaxial, Rear Panel EXT REF IN to Reference Assy (A16) J704 8121-1860
W23 Cable, Coaxial, Digital IF (A3) J17 to Reference Assy (A16) J726 8121-1401
W41 Cable, Semi-Rigid, Reference Assy (A16) J703 to LO Synth Assy (A14)
J200
N9038-21306
W42 Cable, Semi-Rigid, Reference Assy (A16) J702 to Front End Assy (A13) J1 N9020-20022
W43 Cable, Semi-Rigid, Reference Assy (A16) J701 to Coaxial Switch (SW1)
Port 2
N9038-21304
