Keysight N9038A Service Guide

506 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

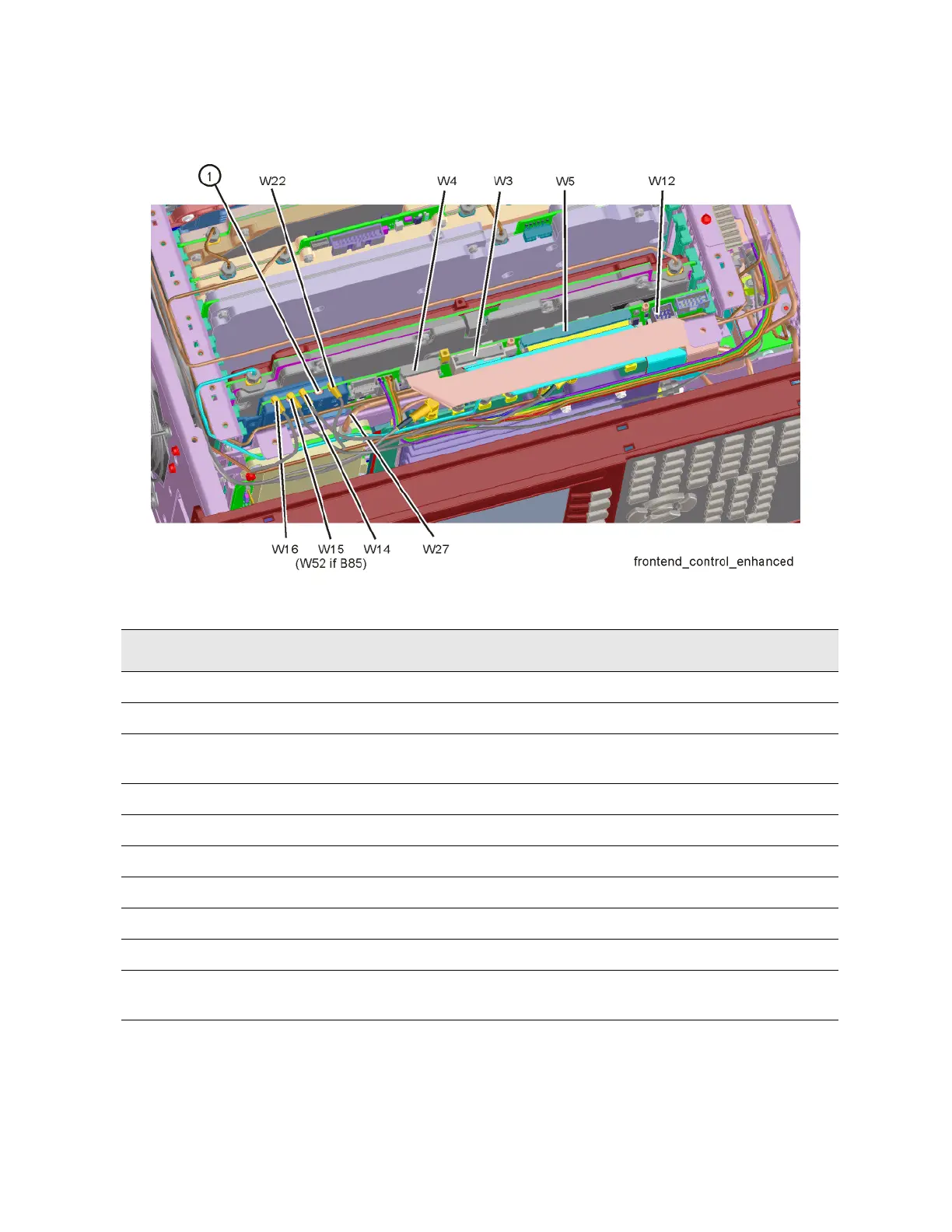

Figure 17-10 Front End Control Cables
Item Description
Part Number
a
a. Most current part numbers shown. See Table 17-1 for a complete list of part numbers for older
instruments.
1 A15 Front End Control Assembly N9020-60172
W3 Cable, Ribbon, Front End Control (A15) J800 to Atten A (A9) & B (A10) E4410-60157
W4 Cable, Ribbon, Front End Control (A15) J700 to RF Switch/High Band
Preamp (A11) J4
E4410-60160
W5 Cable, Ribbon, Front End Control (A15) J102 to Front End Assy (A13) J12 E4410-60156
W12 Cable, Wire Harness, Front End Ctrl (A15) J301 to YTF (A12) J1 N9020-60059
W14 Cable, Coaxial, Front End Assy (A13) J7 to Front End Ctrl (A15) J902 8121-1862
W15 Cable, Coaxial, Front End Ctrl (A15) J901 to Digital IF (A3) J15 8121-1919
W16 Cable, Coaxial, Front End Ctrl (A15) J900 to Analog IF (A2) J100 8121-1865
W22 Cable, Coaxial, Digital IF (A3) J17 to Reference Assy (A16) J726 8121-1859
W52 Cable, Coaxial, Front End Control (A15) J901 to Wideband Analog IF (A25)
J101
8121-1865
