522 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

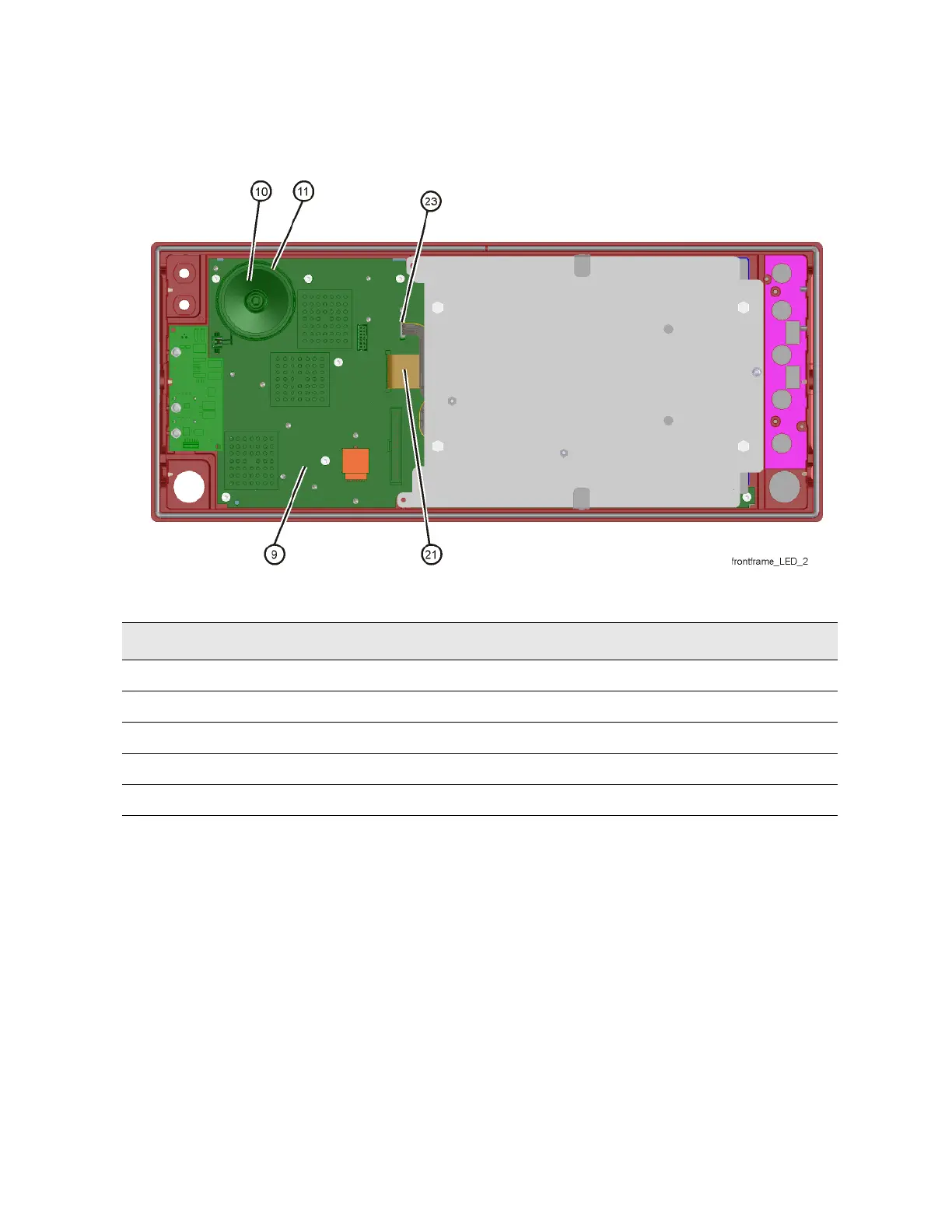

Figure 17-25 Front Frame Parts (shields off) - LED Backlight
Item Description Part Number
9 A1A2 Front Panel Interface Board W1312-60137
10 A1A2MP1 Speaker 9164-0453
11 A1A2MP2 Speaker Foam N9038-40088
21 A1W1 Flex Circuit, Front Panel Interface to LCD W1312-60122
23 A1W2 Cable Assembly, Wire Harness, Front Panel Interface to Backlight Power Supply W1312-60130
