Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 555
Assembly Replacement Procedures
RF Area - Option 544

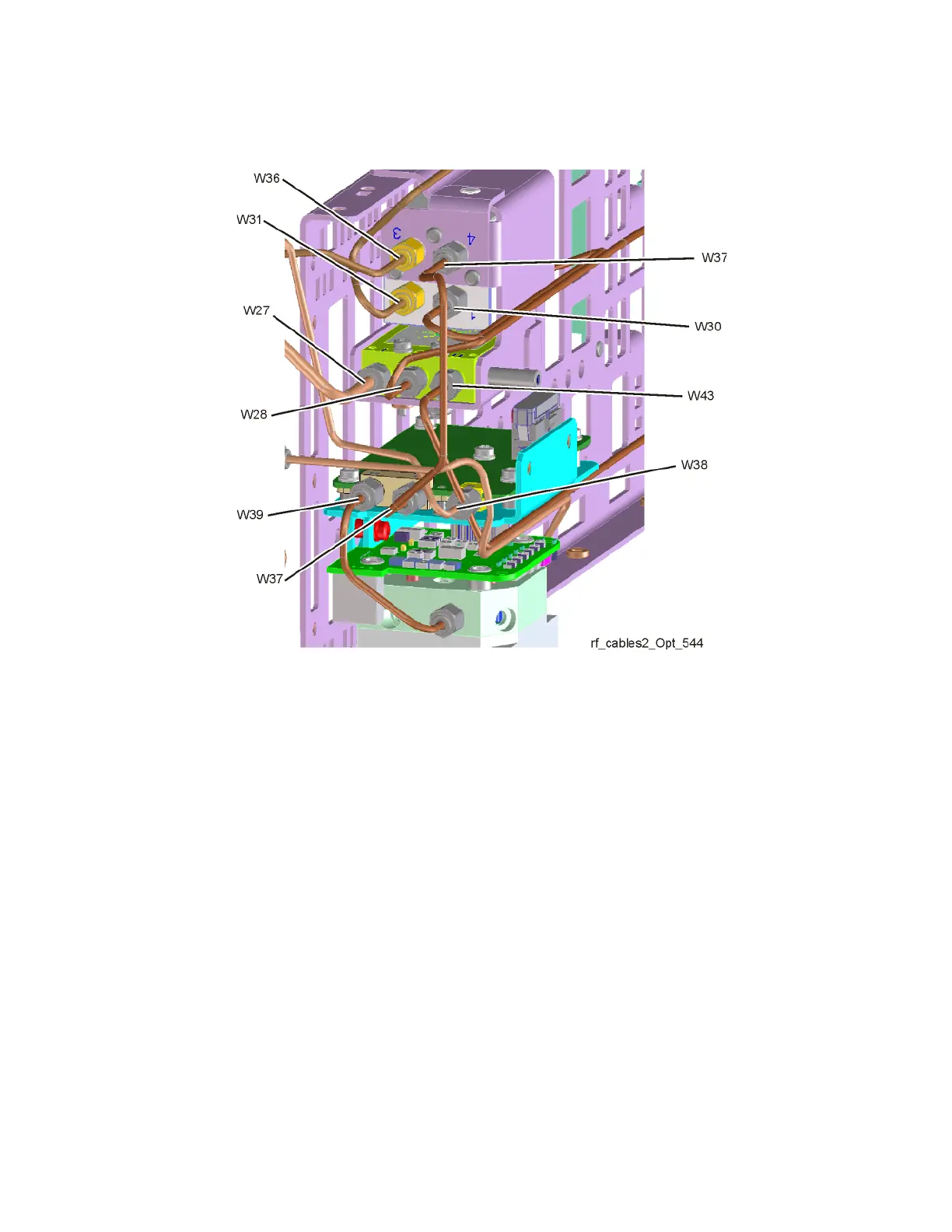

Figure 18-23 RF Area Cables - Option 544
To gain access to the attenuators, RF Switch/High Band Preamp assembly, or
YTF for removal, follow these steps:
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the front panel. Refer to the Front Frame Assembly removal
procedure.
3. Remove the top brace. Refer to the Top Brace and Power Supply Bracket
removal procedure.
