Keysight N9038A - Page 537

556 Keysight N9038A MXE Service Guide
Assembly Replacement Procedures
RF Area - Option 544

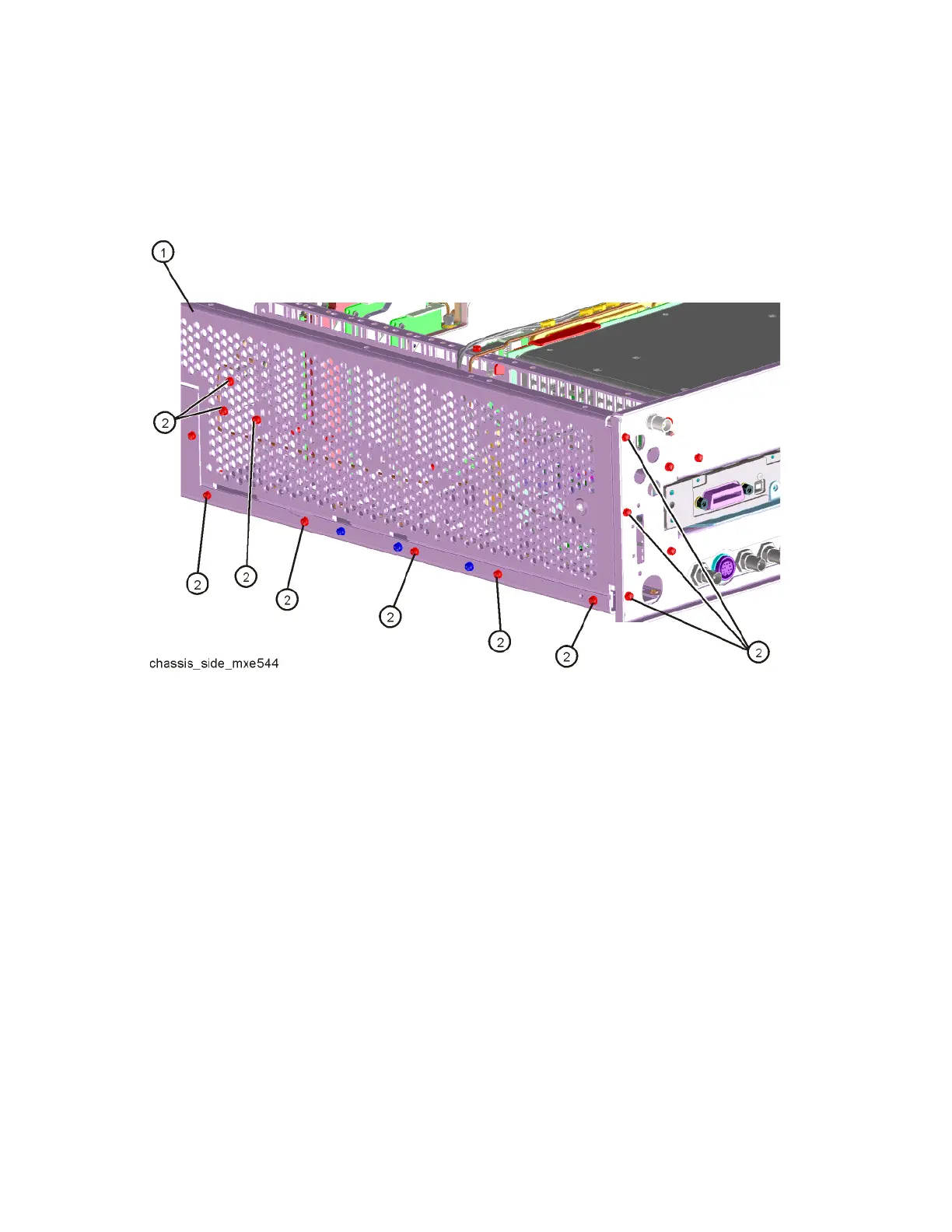

4. Refer to Figure 18-24. Remove the Chassis Right Side Outer bracket (1)
by removing the eleven screws (2) (0515-0372) using the T-10 driver.
Figure 18-24 Chassis Right Side Outer - Option 544
