Koden MDP-621 - Adjusting the Transmission Rate

Chapter 8  MDP-1241/1240/1260/1210
Sounder operation  Operation manual
8.3.16 Adjusting the Transmission rate
By adjusting the signal transmission rate, screen error images resulting from the synchronization with
another ship’s sounder can be eliminated.
Display the soft menu (SOUNDER/PAGE1 (2)/S FUNC).
The transmission rate settings menu is displayed.
Set the transmission rate using the joystick or the 10digit keypad.

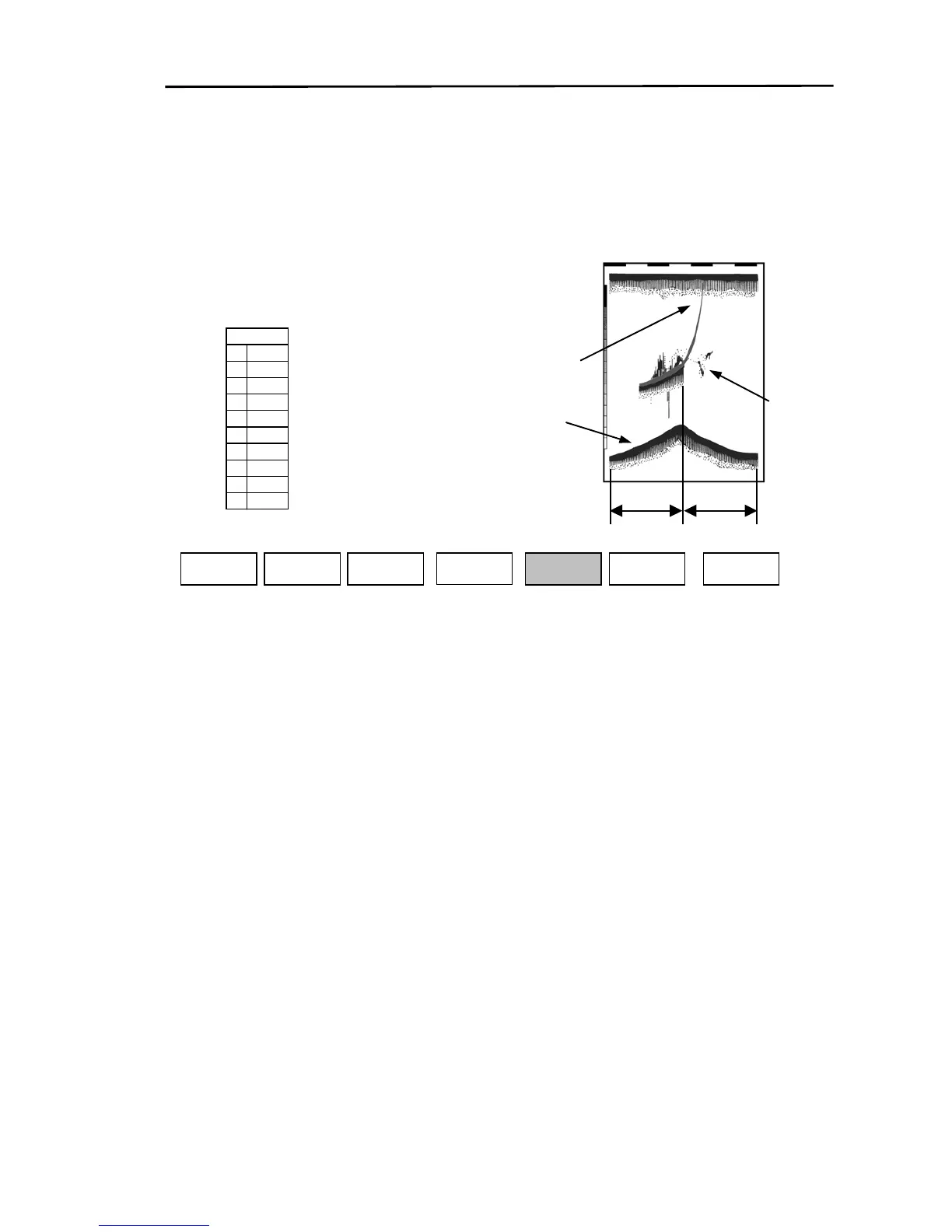

Image of sea bottom
detected by own
ship’s signal.
Fish school
2→10
1

Image of sea bottom
(False) resulting from
interference from
another ship’s signal.
PRR
0 1
1 2
2 3
3 4
4 5
5 6
7 8
6 7
8 9
9 10







SOUNDER/PAGE1(2)/S FUNC
A SCOP
ON
PAGE2
V
RM1
COLOR
SOUNDER
RETURN
PRR
V
RM2
8-20     0093161202-06
  
