Koden MDP-621 - Connection of Multi Device System

MDP-621/641/640 Chapter 4
Operation manual Installation
4.5.2.3 Connection of multi devices system



































To
Ship’s supply
10.8 - 31.2 VDC
(10m cable
with connector
is supplied)
GPS sensor or GPS Compass (Option)
GPS-20A(B-Type) KGC-1
To
external buzzer
Connecting cable
(customer supply)
Connector type
LTWBD-08BFFA-L180 (option)
Earthing lead
See para 4.5.2.1
A
ntenna cable
10m cable with connector (standard)
MNEA 0183 input
RB714A RB715A
CW-249
CW-385-5M
To
10BaseT HUB
(customer supply)
(5m cable w th i
connector)
(NMEA 0183 input
See para 4.5.2.1)
WARNING:Buy the hub for the MDP series, and connect only the MDP series.
RB716A


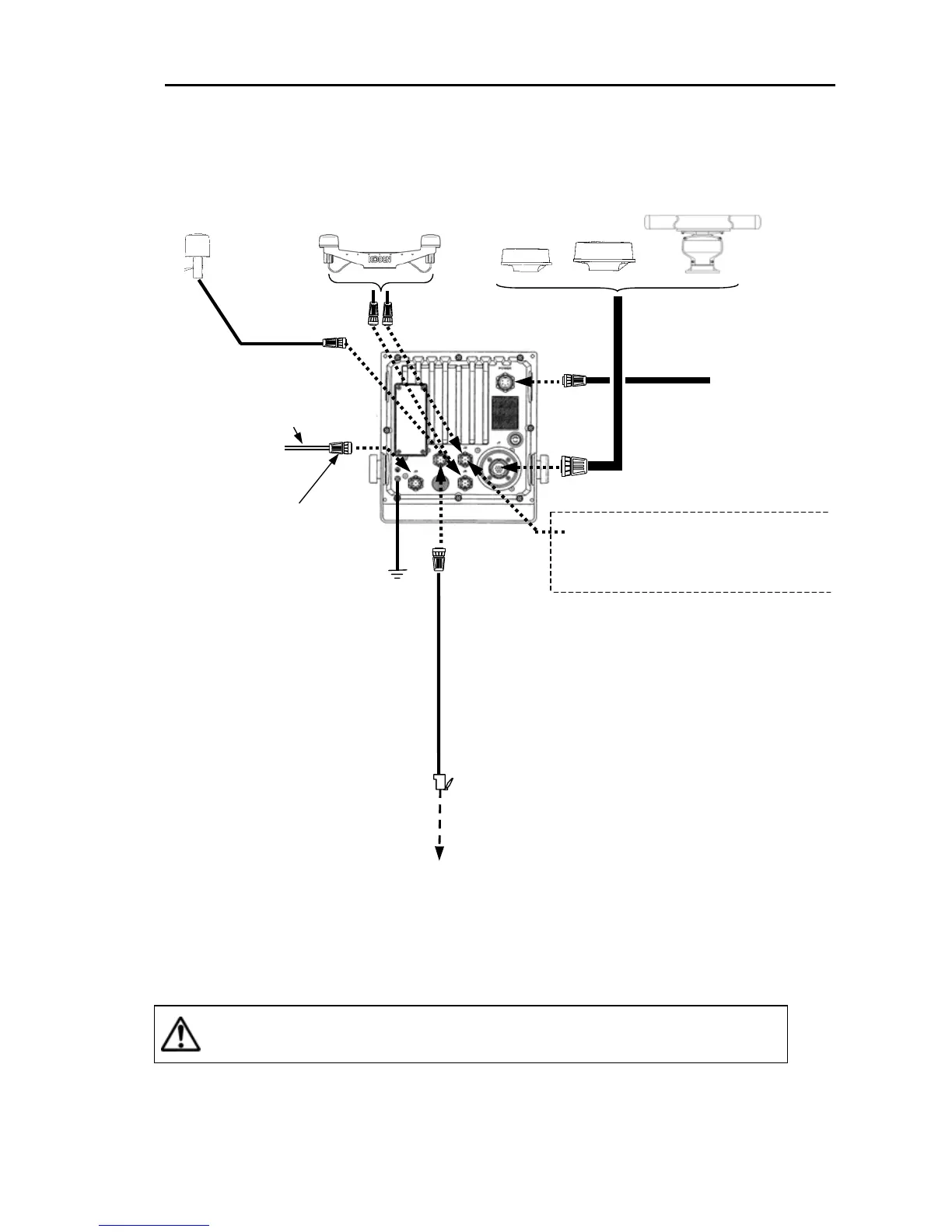

Figure 4. 18 multi device system Connections
0093161022-06 4-17
