Koden MDP-621 - System Connection; Connection of Stand-Alone System

MDP-621/641/640 Chapter 4
Operation manual Installation
4.5.2 System connection
4.5.2.1 Connection of stand-alone system




















To external buzzer
(10m cable with
connector is supplied)
GPS sensor or GPS Compass (Option)
GPS-20A(B-Type)  KGC-1
A
ntenna cable
10m cable with connector (standard
for MDP series)
Connecting cable
(customer supply)
Connector type
LTWBD-08BFFA-L180 (option)
Earthing lead
RB714ARB715A
10.8〜31.2VDC
CW-249
(NMEA 0183 input)
(5m cable w th i
connector)
These items are optional, all connected to NMEA ports
at the display rear panel.
Connector type
LTWBD-06BFFA-L180
Connecting cable
(Customer supply)
CW-374
CW-373
CW-375
CW-376
NMEA-0183
RB716A

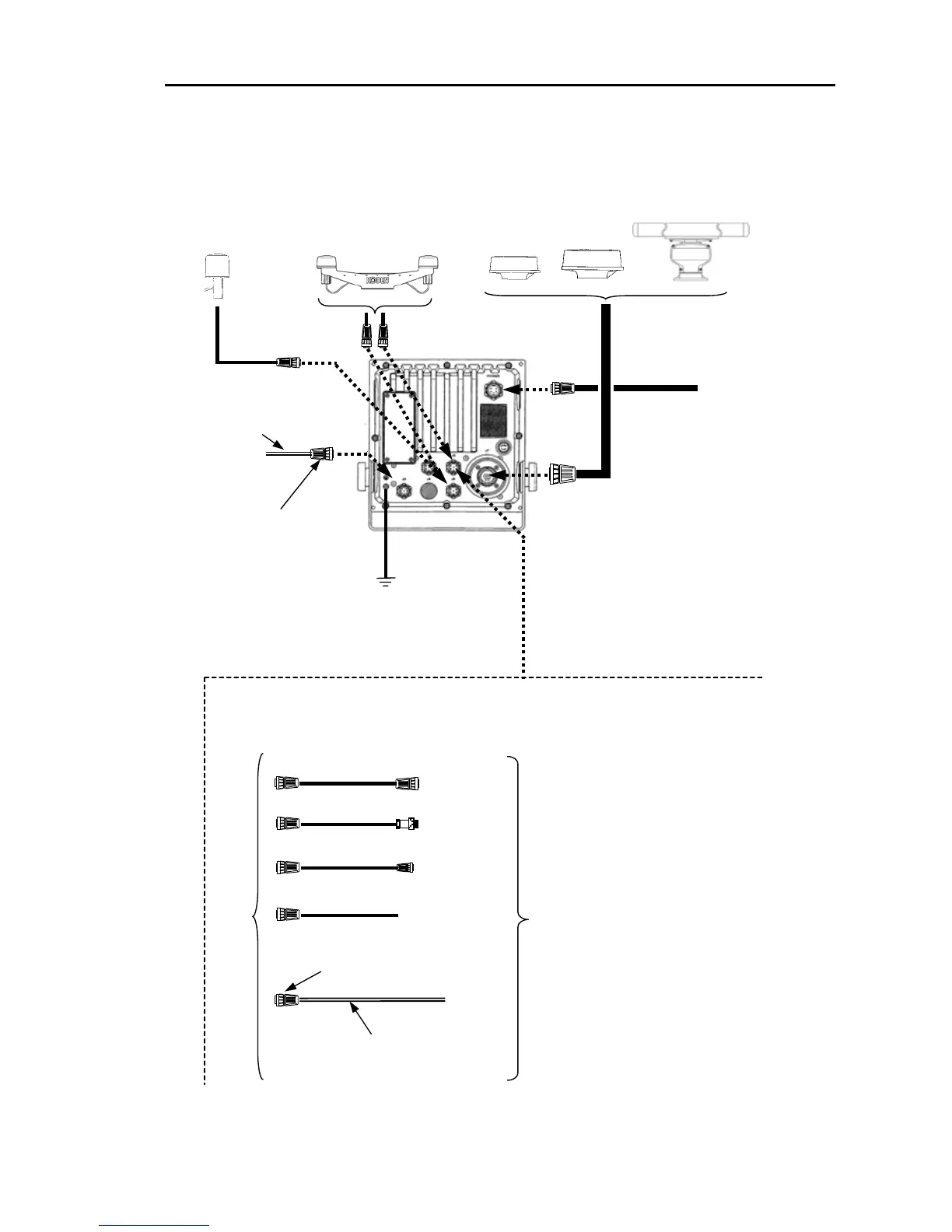

Figure 4. 16 Stand alone system connection
0093161022-06 4-15
