MDP-621/641/640 Chapter 4
Operation manual Installation
4.4.1.2 Flush mounting
(1) Cut a rectangle opening that measures 207(H) mm x 212(W) mm.
(2) Loosen two (2) fixing knobs that fasten the display unit onto the mounting bracket.
(3) Remove four (4) plastic screw covers, which are fitted on each corner of the display front face.
(4) Put the display on the opening and fix with four (4) tapping screws. In case you use M4 screws to
fix the display, select an appropriate screw length that best suits fixing the unit to the panel
thickness.
(5) Refit the coverings removed in step (3).
NOTE: FLUSH MOUNT KIT(COM7/MRD99.FM.KIT)is extra-cost option.
E45MB11090
Packing
Fixing holes for M4 screw (4 pcs)
Screw covers (4 pcs)
Fixing screws
(M4 screws, 4 pcs)
Display Unit
Adhesive tape
Unit in mm (inch)

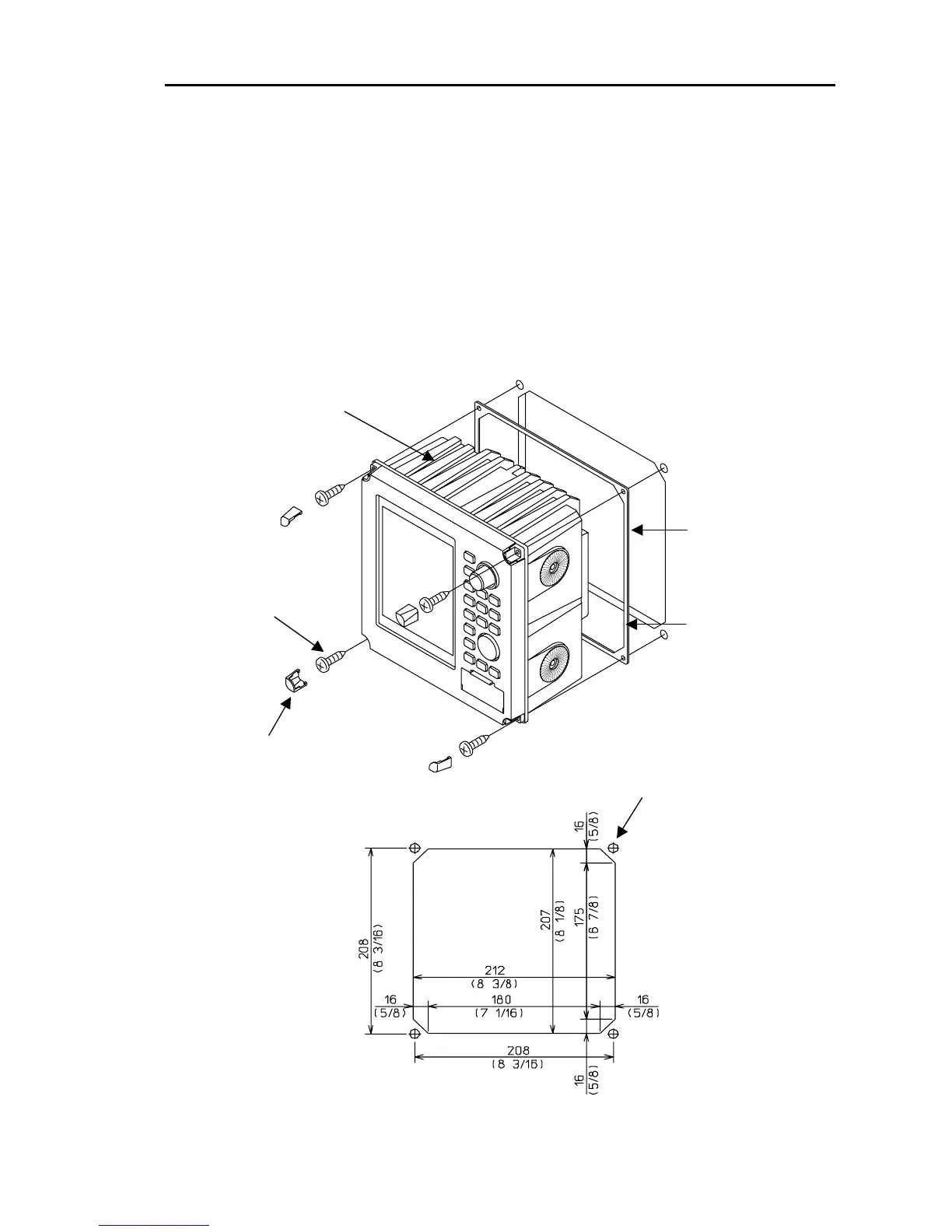

Figure 4. 3 Dimensions of opening and fixing holes
0093161022-06 4-3
