MDP-621/641/640 Chapter 5
Operation manual Basic operation
0093161022-06 5-1
Chapter 5 Basic Operation


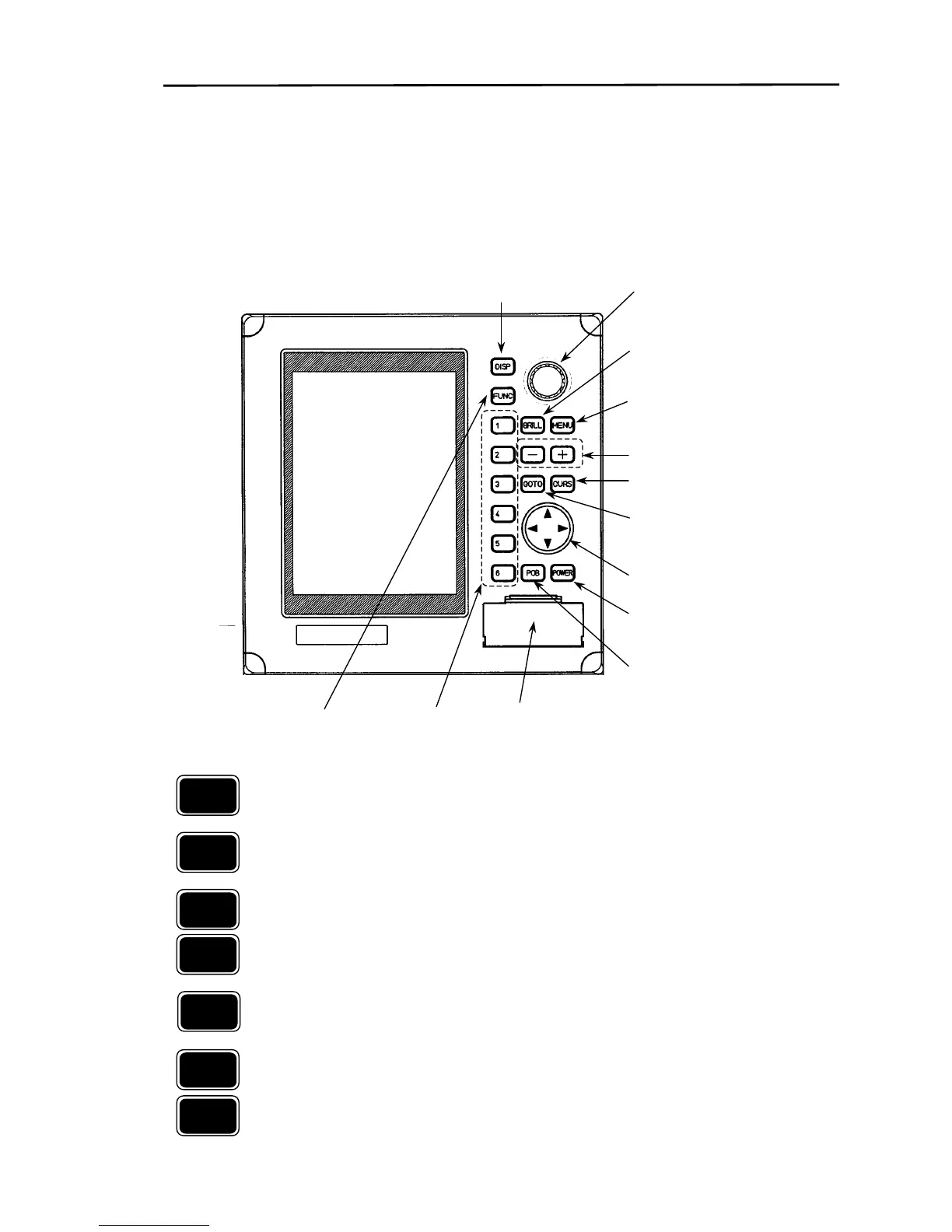

5.1 Operating panel
The operating panel comprises of 16 push-switch keys, a rotary control, a pointing keypad and a C-MAP
card slot. The operating panel performs all operations of Radar, Plotter, Sounder, NAV etc.































POWER
Power supply on/off, radar transmit /standby.
POB
Stores present location in an emergency.
＋
−
Selects range/scale.
BRILL
Sets up screen display colors (day and night) and adjusts screen brightness
and
p
anel illumination.
MENU
Displays the menu screen.
DISP
Selects screen display.
+ /- key
POB key
SOFT key
FUNC key
Rotary control
BRILL key
MENU key
CURS key
GOTO key
Pointing keypad
POWER key
C-MAP Card
DISP key
